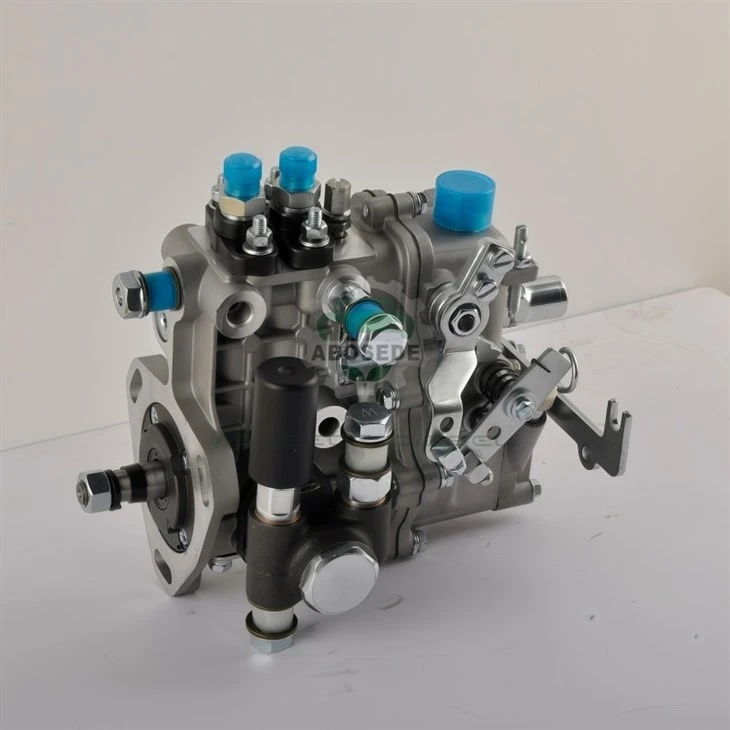

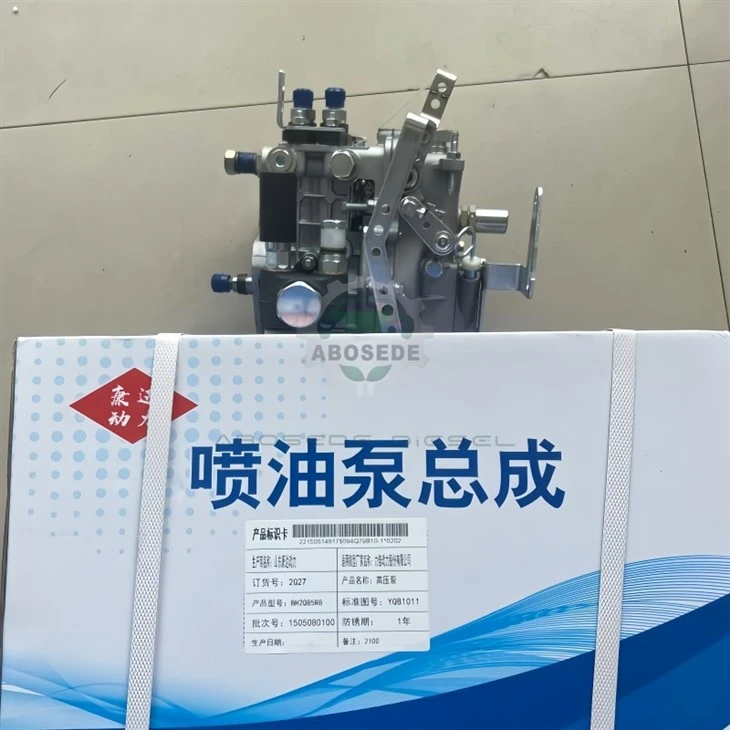

KANGDA 2Q27 BH2Q85R8 Fuel Injection Pump For Jiangdong 2102 Diesel Engine

The KANGDA 2Q27 (Order No. 2Q27, Pump Model BH2Q85R8) serves as a direct-fit mechanical fuel injection pump engineered specifically for the Jiangdong 2102 series two-cylinder diesel powerplants. This unit delivers precisely metered fuel at engine speeds reaching 2800 RPM in direct-drive configurations, restoring original combustion efficiency and throttle response in agricultural tractors, compact loaders, and stationary power units where OEM reliability remains non-negotiable for daily field operations.

The BH2Q85R8 pump body carries an 8.5 mm plunger diameter with a cam lift profile calibrated to the JD2102 camshaft timing. Factory machining holds flange mounting faces to within 0.02 mm flatness tolerances, ensuring distortion-free seating against the engine gear case. Delivery valve holders accept M12×1.25 threaded high-pressure lines with standard 6 mm steel tubing. The mechanical governor assembly incorporates a flyweight system that modulates fuel rack position across the entire 800–2800 RPM operating band. Inlet fuel connection uses a 10 mm banjo bolt fitting with an integrated mesh strainer, while the return line barb measures 8 mm OD for low-pressure recirculation. These physical specifications guarantee bolt-on compatibility without requiring custom brackets or adapter plates during workshop installation.

This pump exclusively pairs with the Jiangdong 2102 (and closely related 2108 variants) – a 2.4-liter, water-cooled, naturally aspirated diesel commonly deployed in walking tractors, small combine harvesters, and irrigation pump sets across Asian and African agricultural markets. The fuel delivery map prioritizes low-end torque for heavy-draft operations at plowing speeds, yet maintains sufficient top-end flow for road transport applications. Workshop data indicates that replacing a degraded original pump with this KANGDA unit typically recovers 12–15% of lost wheel horsepower in high-hour machinery, translating to noticeable improvements in field productivity and reduced gear-shifting frequency under load. For repair shops servicing mixed fleets, stocking this variant covers a significant portion of the 2-cylinder diesel segment popular in emerging economy farm equipment.

Mounting this pump demands precise rotational alignment: rotate the crankshaft until the flywheel TDC mark aligns with the housing pointer on the compression stroke for cylinder No.1. Insert the pump drive gear with its timing dot facing the idler gear index mark; a half-tooth misalignment alters injection advance by approximately 4 crankshaft degrees, which substantially affects cold-start behavior and exhaust temperatures. Torque the three M10 flange nuts to 48–52 Nm in gradual stages, then connect the high-pressure lines without applying lateral bending forces. Before engine cranking, loosen the high-pressure line nuts at the injector ends and crank the starter until fuel streams free of air bubbles appear – this bleeding step prevents plunger seizure from cavitation damage. Never attempt to adjust the max fuel screw beyond factory paint-sealed settings, as tampering voids delivery calibration and may lead to overspeed conditions in no-load situations.

While common rail systems dominate modern on-highway truck engines, the mechanical BH2Q85R8 remains eminently serviceable with basic bench tools. Unlike CP4-style rotary pumps that shed microscopic bearing debris into the entire fuel circuit – necessitating complete injector and rail replacement following failure – this in-line pump tolerates moderate fuel contamination and responds well to plunger/barrel renewal kits. A typical bench overhaul, including new plunger assemblies and delivery valve springs, costs roughly 35–40% of a new unit price, offering fleet operators an economical pathway to extended service life. The governor weight retainer and thrust washer should be inspected at every major service interval, as these components experience cyclical fatigue from constant speed hunting in PTO-driven implements.

Q1: Engine stalls under PTO load after installing this pump – what is wrong?
A: Check the external speed screw setting. Factory droop is preset at 8%, but your specific implement may demand more idle fuel. Turn the screw inward 1/4 turns until the engine holds load, but keep no-load speed at or below 2800 RPM.

Q2: Do you sell plunger/barrel kits separately for in-house rebuilds?
A: Yes. Kits include the plunger assembly, delivery valve, return spring, and governor o-rings. Replace the thrust washer every second overhaul – its wear directly affects rack travel and fuel metering accuracy.

Q3: Will this pump perform correctly at high altitudes?
A: No automatic compensation exists on mechanical pumps. Above 2000 metres, the fixed fuel volume runs rich. You must manually de-rate the max fuel screw by 3% per 1000 metres elevation to prevent black smoke and power loss.

Q4: The flange dowel hole on this pump does not match our JD2102 housing – can we install it anyway?
A: Yes, if your housing has no dowel pin. If the pin is present, either remove it from the housing or source a drilled-flange pump. Never force alignment – the flange ears will crack under uneven bolt tension.

Q5: Can this BH2Q85R8 fit Changchai or Yuchai engines as well?
A: The 1:10 shaft taper is physically compatible, but governor spring preload varies across brands. Using this pump outside Jiangdong applications may produce incorrect speed governing – verify with your engine specs before ordering.
