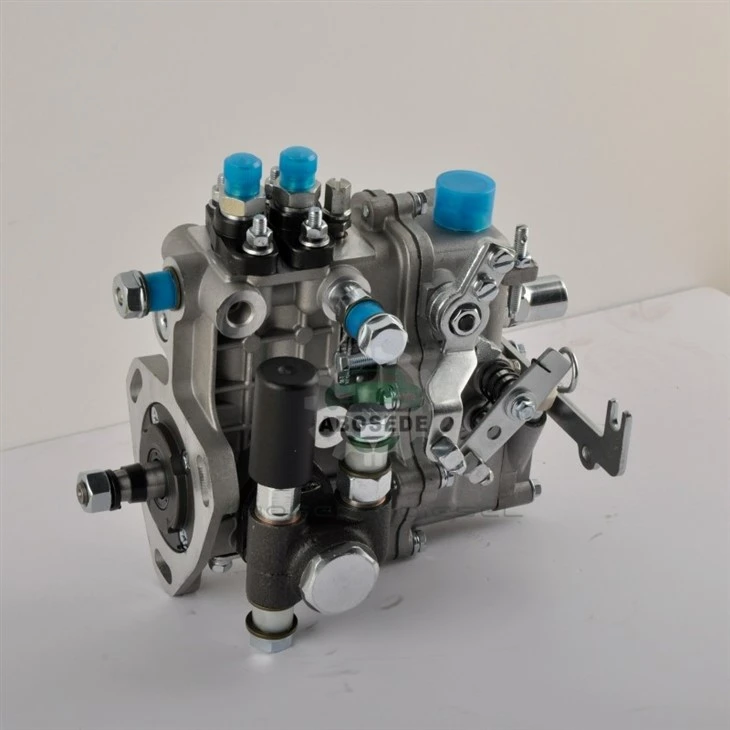

KANGDA 2QT14 / BH2QT85R9 Diesel Fuel Injection Pump For 2105 Engine

When a Yunnan Jinma 2105 comes in with erratic idle and fuel dilution in the oil, the clock starts ticking against your bay profitability. That BH2QT85R9 pump sitting on the parts shelf could turn a three-hour diagnostic into a fifteen-minute swap – or it could become the reason you're doing the same job twice. The 2QT14 order code identifies a mechanical in-line diesel injection pump calibrated specifically for 2600 RPM operation, and getting this replacement right means the difference between a satisfied fleet customer and a chargeback dispute over wasted labour.

This pump operates with a 2-cylinder configuration designed around the BQ platform, featuring a plunger diameter of 8.5mm with a 9mm stroke (as indicated by the "R9" suffix in the model code). The 2QT14 order code specifies the governor linkage setup and spring rates calibrated for the 2105 engine's low-to-mid torque band. Critical hard data includes a static injection timing of 24° ± 1° before TDC and a maximum governor speed of 2750 RPM to prevent overspeed conditions. The pump utilizes Bosch-style port-and-helix metering, with a delivery valve holder torque specification of 60-70 Nm. This is not a generic replacement; the factory-specified mounting flange dimensions and drive shaft taper (1:5 taper with a Woodruff key) are precisely machined to ensure concentricity with the engine's drive gear, preventing premature wear on the tappet and camshaft components.

Exclusively matched to the 2105 series two-cylinder diesel engines, commonly found in Yunnan Jinma tractors, small excavators, and gensets, this pump is integral to the fuel system architecture of these workhorses. Unlike automotive pumps, this unit is optimized for constant-speed or variable-speed operation depending on load, making it critical for agricultural PTO applications. The BH2QT85R9 model is specifically calibrated for engines with a bore stroke of 105mm x 120mm, ensuring the injection advance curve aligns perfectly with the 2600 RPM rated power output. For repair shops dealing with Chinese industrial engines, this part is the direct upgrade from older mechanical pump designs, offering better atomization at low speeds to reduce diesel knock during cold starts. It is a high-priority replacement for units exhibiting loss of power or excessive black smoke under load, particularly where OEM parts are scarce.

While this is a mechanical unit, its reliability directly impacts the lifespan of the entire diesel injection system. Wear in the plunger and barrel leads to internal leakage, reducing rail pressure and causing hard starting. Replacing this pump before metal debris contaminates the injectors saves thousands in downstream repair costs. For shops managing Yunnan Jinma fleet vehicles, stocking this pump addresses the common failure point of governor spring fatigue and camshaft scoring due to poor fuel lubrication. It is a cost-effective alternative to rebuilding a seized unit, eliminating the risks associated with improper shim adjustment and timing re-calibration in the field. Investing in a factory-spec unit ensures fuel efficiency returns to 270 g/kW·h, reducing operational costs for agricultural end-users.

Q1: For workshops ordering 3–6 units per quarter, do you provide individual calibration sheets or batch averages?
A: Each pump leaves with its own test report documenting delivery volume at 200, 600 and 1000 RPM. For bulk orders, we can attach the bench data file to each serial number upon request.

Q2: One operator runs his 2105 genset 16 hours daily – what is the realistic replacement window before governor response degrades?
A: Irrigation site logs indicate the camshaft and tappet interface holds specifications until roughly 8500 running hours, assuming the lube oil maintains adequate anti-wear additives. We recommend exchange at 8000 hours to keep governor reaction sharp under block loads.

Q3: After installing this new pump, if cylinder 2 still misses intermittently, is the fault inside the pump or elsewhere?
A: Usually outside – inspect the return line for air ingestion first. The delivery valve in this BH2QT85R9 tolerates return-line backpressure better than older equivalents, but a cracked standpipe in the tank will introduce bubbles regardless of pump condition.

Q4: Is there a core return credit available for pumps with scored barrels?
A: Yes – we evaluate each plunger and barrel set. Even units with visible wear retain value for their housing, lever assemblies and governor components. Return labels are supplied with wholesale orders.

Q5: Has this 2QT14 variant been validated on Jinma's latest block castings, or only earlier production runs?
A: Test fits were conducted on both pre-2020 and current Yunnan Jinma blocks – the flange pattern and taper drive remain unchanged. The inlet banjo angle was revised in 2022, so this order code now includes a 15° rotated fitting to clear updated alternator brackets.
