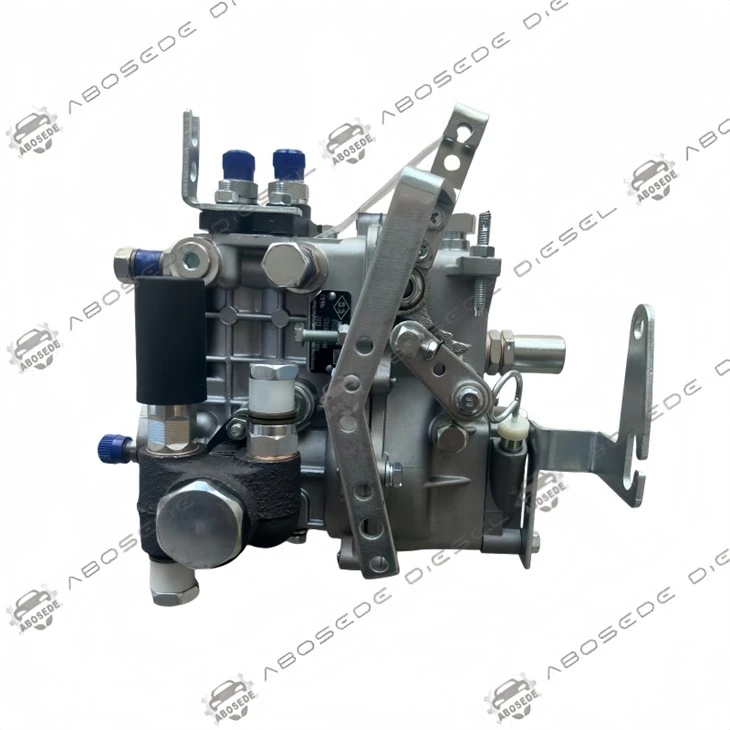

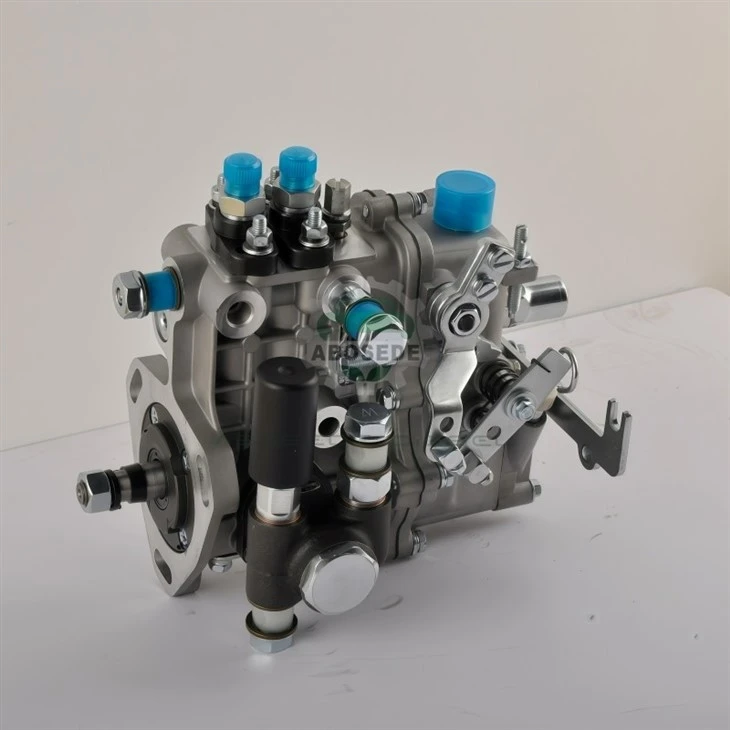

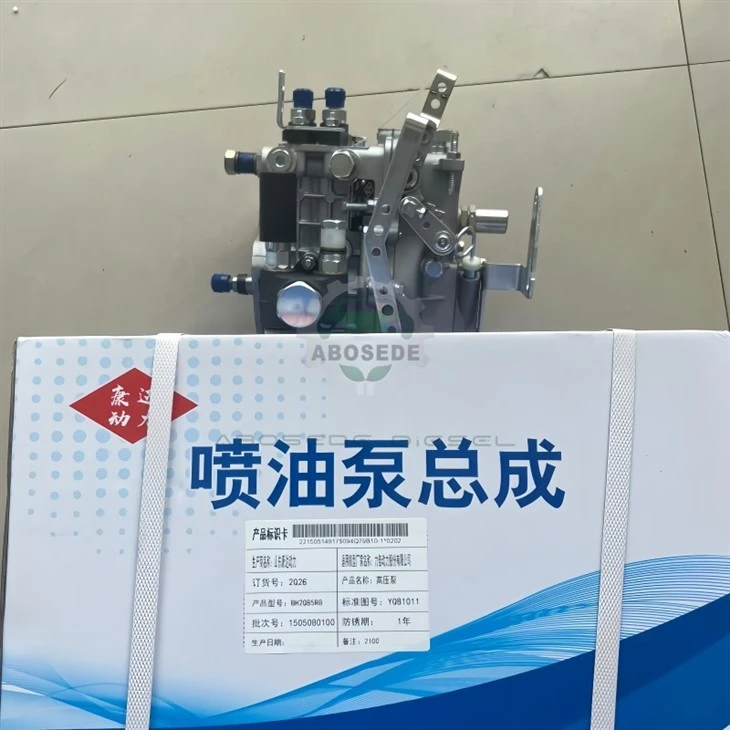

KANGDA 2Q26 BH2Q85R8 Fuel Injection Pump – Direct Fit For Jiangdong 2100

For workshops overhauling Jiangdong 2100 power units across Africa and Southeast Asia, the KANGDA 2Q26 (model BH2Q85R8) offers a direct replacement fuel injection pump engineered to sustain 2800 RPM under direct-drive configurations. This mechanical in-line pump delivers precise fuel quantities to each cylinder, enabling reliable starting and consistent torque output in tropical climates and dusty job sites. The BH2Q85R8 arrives with factory calibration specific to the YC2100 platform, so fitters can install it without additional test-bench tuning-a critical advantage for remote service centres lacking advanced diagnostic equipment.

Rated for an engine speed of 2800 RPM, this injection pump carries the ordering code 2Q26 and model designation BH2Q85R8. Its pumping internals feature a BQ series plunger matched to the Jiangdong 2100 combustion characteristics. The fuel system calibration includes a factory-set governor curve optimized for stable idle control and load acceptance. Drive shaft orientation follows the standard clockwise rotation when viewed from the gear end, ensuring direct compatibility with the engine timing train. The delivery valve opening pressure and plunger stroke are fixed per OEM data, so no on-site adjustments are required prior to installation.

This diesel injection pump is exclusively profiled for the Jiangdong 2100 (also known as YC2100) series, commonly found in compact agricultural equipment and auxiliary power packs. The 2800 RPM rating suits operations demanding rapid throttle response, such as rotary tilling and PTO-driven implements. For repair shops serving rural fleets, stocking this BH2Q85R8 pump addresses frequent service requests on older diesel engines that remain in active use. The KANGDA unit directly substitutes the original pump without any bracket modifications, making it a practical choice for workshops aiming to reduce vehicle downtime during peak fieldwork seasons.

Correct fitting of the BH2Q85R8 begins with setting the Jiangdong 2100 to TDC on the compression stroke for cylinder one. Align the index mark on the pump drive gear with the mating pointer on the idler gear. Air bleeding from the fuel injection pump must be performed before connecting high-pressure lines; operate the hand primer until bubble-free fuel issues from the return port. New copper washers should be fitted under each delivery valve holder to prevent external seepage. The mechanical governor linkage demands a slight free play at the idle stop to enable sensitive speed correction. After bolting the pump in place, dynamic timing should be rechecked using a pulse adapter or the static method described in the engine manual, thereby avoiding knocking or excessive exhaust smoke.

Although common rail systems dominate newer machinery, the mechanical BQ series pump continues to offer a cost-conscious repair pathway for pre-emission equipment. Retrofitting a common rail system into an older Jiangdong 2100 would require costly ECU integration and high-pressure plumbing-a step many fleet owners avoid. By choosing the KANGDA 2Q26, workshops preserve the original fuel system architecture while regaining factory-rated power output. This injection pump also reduces the risk of injector sticking and cylinder washing, issues frequently observed when worn pumps deliver erratic quantities. Regular replacement at scheduled intervals helps maintain consistent fuel economy and lowers the total cost of ownership for agricultural operators.

Q1: Will the BH2Q85R8 pump operate correctly on biodiesel blends or high-sulphur fuel?

A: Yes. The BQ series plunger and delivery valve materials tolerate up to B20 biodiesel and sulphur content commonly found in regional fuel supplies. Regular water draining from the primary filter remains advisable to protect the injection pump.

Q2: Can we fit this 2Q26 pump if our Jiangdong 2100 has an aftermarket turbocharger fitted?

A: The BH2Q85R8 is calibrated for naturally aspirated operation. Adding a turbocharger may require recalibration of the fuel screw and governor spring tension, which cannot be done accurately without a test bench.

Q3: What is the approximate shipping weight for a single KANGDA 2Q26 pump unit?

A: Each fuel injection pump weighs approximately 6.8 kg net, including the drive gear and flange, packed in a carton suitable for air or sea freight consolidation.

Q4: How can we distinguish genuine KANGDA parts from counterfeit pumps in the local market?

A: Authentic units display the KANGDA casting mark and the BH2Q85R8 laser-engraved code on the housing. Counterfeits often have mismatched casting roughness and missing date-code stamps.

Q5: Does the pump require a specific grade of engine oil for the governor lubrication bath?

A: Use SAE 10W-30 or 15W-40 diesel-grade oil in the governor housing to the indicated level. Overfilling causes hunting; underfilling leads to sticking flyweights during 2800 RPM operation.
