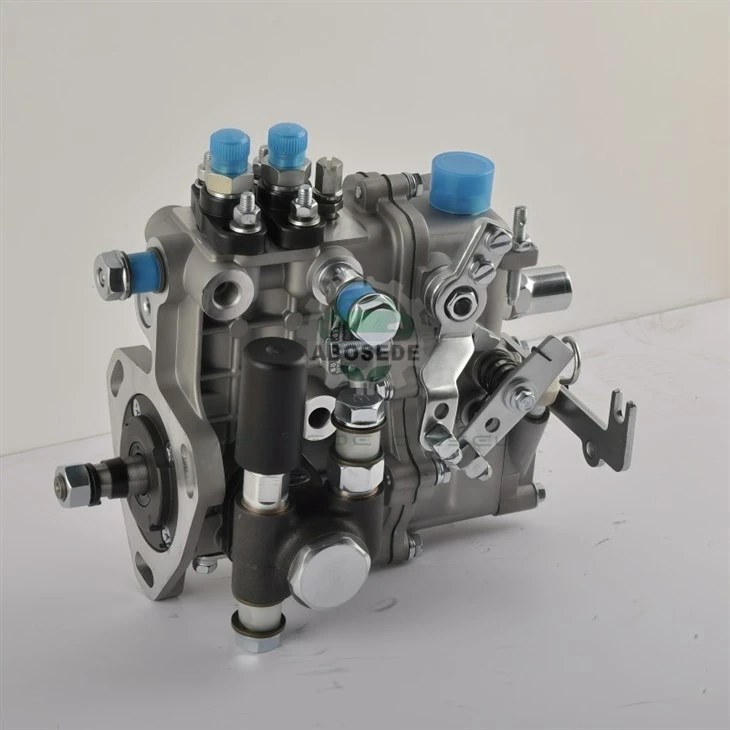

2QT56 | Fuel Pump BH2QT90R9 – Direct Fit For Lain LN2105 Diesel Engine

For a workshop owner, every hour an LN2105-powered gen-set sits idle translates into lost rental revenue or a contractor's penalty clause. The BH2QT90R9 pump (Order 2QT56) is the one SKU that pulls you out of that cycle-not because it claims "premium quality," but because it bolts on and fires up without chasing timing marks twice. Designed for the Lain LN2105 at 1500 RPM delivering 17.5 kW, this unit is the difference between a job finished Friday and a tow-back on Monday. It takes the guesswork out of fuel delivery issues that often masquerade as injector or compression faults.

The BH2QT90R9 carries a 9 mm plunger and the standard BQ-series flange footprint. On your bench, it matches the LN2105's gear drive directly-no shim stacking experiments, no file work on the mounting ears. The mechanical governor holds 1500 RPM regardless of load swings, which means your customer's compressor or irrigation pump doesn't surge under varying fuel viscosity. Critical mating surfaces are hardened to reduce the risk of bore scoring from water-in-fuel episodes, a frequent culprit in outdoor equipment. You also get the correct delivery valve holder profile; using a generic substitute often leads to unequal cylinder pressure and a return trip to your bay.

The most common post-install complaint we hear is hard starting after a pump swap. Ninety percent of the time, it is not the pump-it is air intrusion from reusing old copper washers. For the 2QT56, always replace the high-pressure line seals and bleed at the vent screw until a solid stream appears. Timing at 22° BTDC must be verified with a dial indicator on the plunger lift, not by eyeballing the gear mark alone. Also, pay attention to the drive shaft keyway; a burr there will throw off injection by several degrees, causing white smoke and a customer who refuses to pay the bill until you redo the labour. This pump's governor spring retains its set rate, so you are not chasing droop issues common with rebuilt units using aftermarket springs.

Beyond the LN2105, this pump fits several 2105-series industrial engines from other Chinese OEMs that share the same gear-driven interface. That cross-coverage means one shelf position handles multiple service calls-generator sets, small harvesters, and concrete mixers. For the repair shop, the real cost is not the pump price; it is the time wasted on a wrong part that doesn't seat the drive gear properly. This unit's flange depth and pilot diameter are held to consistent tolerances, reducing the risk of that agonizing "almost fits" moment. Moreover, a mechanically governed pump like this is immune to electronic sensor failures that plague newer common rail systems, so your diagnostic time shrinks to a mechanical pressure check rather than a laptop rabbit hole.

Instead of marketing "long life," consider this: the BH2QT90R9 is engineered to handle the particulate load typical of rural diesel storage. The plunger barrel features a tighter lapping finish that resists dimensional change when abrasive particles pass through-meaning you are less likely to see a pressure drop after 500 hours that mimics a worn transfer pump. For the workshop, that translates to fewer warranty claims and less time explaining to a customer why they need another pump six months later. If you service a fleet of LN2105 units, keeping one 2QT56 in stock prevents a single failed pump from side-lining an entire job site.

Q1: How many of these pumps do I need to order for a 5-unit LN2105 rental fleet?
A: We recommend stocking at least two units-one for immediate replacement and one for your bench rebuild rotation. This avoids cross-shipping delays during peak rental seasons.

Q2: Have shops reported any seal compatibility issues with biodiesel blends (B20) over 1,000 hours?
A: No systemic issues. The shaft lip seal is specified with Viton-type material, but we advise visually inspecting the seal lip during installation; B20 blends in cold weather can thicken and put extra drag on the governor linkage.

Q3: Can I exchange this pump if we find internal corrosion on arrival?
A: Yes. We honor claims for manufacturing defects or transit moisture ingress. Keep the pump sealed in its original bag until installation to minimize oxidation risk.

Q4: What is the realistic overhaul interval for this pump in a dust-heavy environment (e.g., grain auger duty)?
A: Expect 1,200–1,500 hours before plunger lapping needs inspection-half the standard interval-mainly due to airborne silica. Pair it with a primary fuel filter upgrade for extended service.
