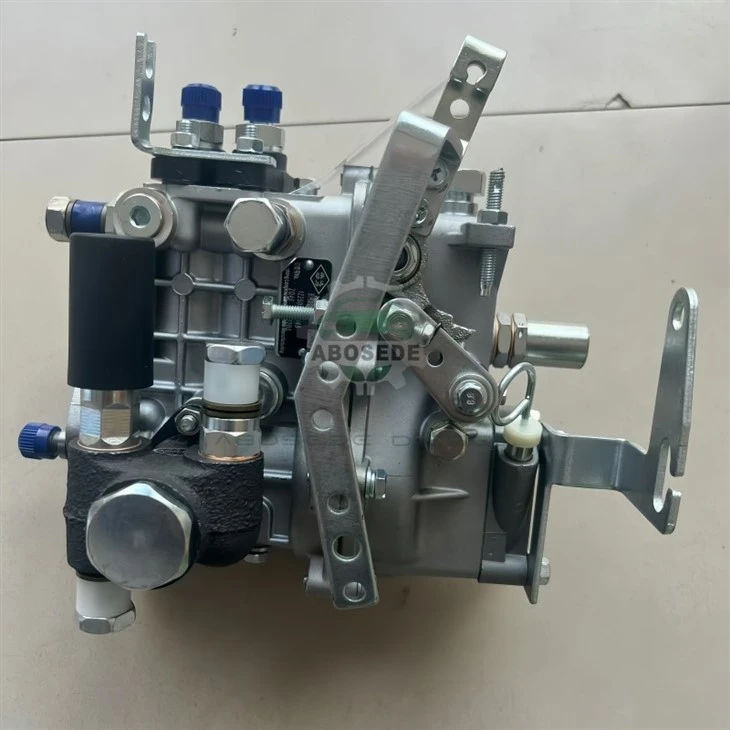

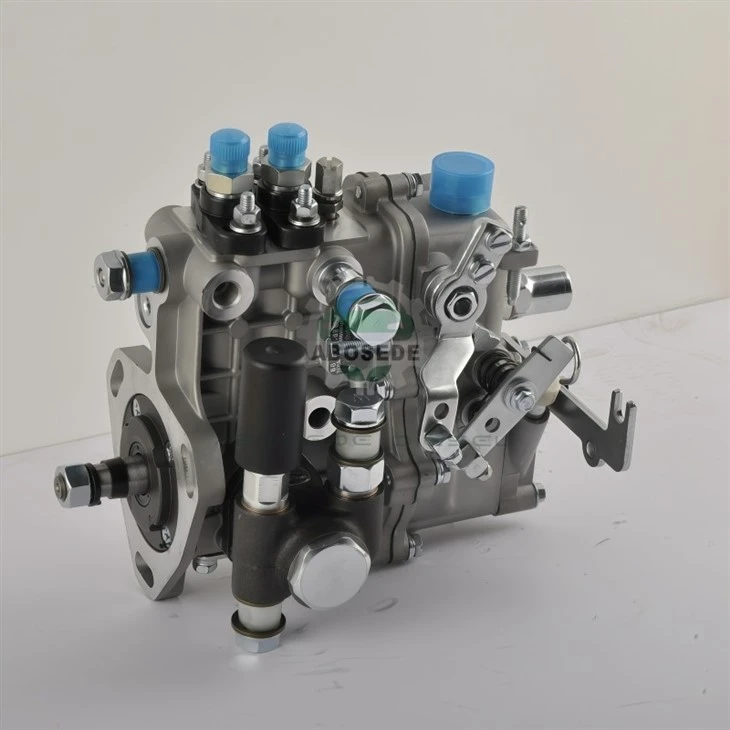

KANGDA 2QT39 – Direct-Mount Injection Pump For JD2118T Applications

When a JD2118T-powered unit starts exhibiting hard starting, erratic idle, or a noticeable drop in pulling power under load, the fuel delivery system is often the first place seasoned diesel shops look. This KANGDA 2QT39 replacement pump directly addresses those drivability complaints, offering a bolt-on solution engineered for the specific operating profile of Jiangdong (Jiangdong) engines commonly found in agricultural equipment, compact construction machinery, and stationary power units.

This 2QT39 pump is calibrated to match the precise fueling demands of the JD2118T at its rated 2300 RPM direct-drive speed. Rather than simply listing a peak horsepower figure, this unit is tuned to deliver the required fuel volume and injection timing to support 28 kW (approx. 37.5 HP) of usable output across the engine's working range. The pump's internal components are designed to manage the mechanical stresses inherent to this engine's duty cycle, ensuring consistent rail pressure and spray timing during extended heavy-load operation. Distributor-type pumps like this are sensitive to fuel condition; the KANGDA 2QT39 incorporates robust plunger and barrel assemblies that maintain tighter clearances compared to aftermarket generics, directly addressing the common complaint of timing drift that plagues older JD series power units. For workshops tracking hour-meter intervals, this pump aligns with factory-spec service schedules, making it a direct replacement that restores factory-fresh fuel mapping without requiring ECU reprogramming.

While the Jiangdong (Jiangdong) JD2118T remains the primary fitment, the versatility of this pump design extends to engine variants sharing the same mounting flange and drive coupling geometry. The JD2118T platform is prevalent in the 30-40 HP tractor segment and small gensets, where fuel system reliability directly impacts revenue-generating uptime. When cross-referencing inventory for a customer's irrigation pump or skid-steer loader, this 2QT39 serves as the high-confidence alternative to OEM sourcing, especially for distributors managing multi-brand fleets. This pump is mechanically governed, which means it is less susceptible to the electromagnetic interference issues seen in later electronically controlled units, making it a preferred option for harsh, high-vibration environments.

Fitting this pump requires strict adherence to the JD2118T timing mark alignment. Before installation, verify that the engine is set to Top Dead Center (TDC) on the compression stroke. The KANGDA 2QT39 is designed with a specific drive shaft keyway; ensure this mates cleanly with the drive gear to avoid pre-load. A common point of failure in the field is the high-pressure fuel lines-always use new line sets or thoroughly clean existing ones to prevent debris ingress into the new pump's plunger chamber. After mechanical installation, the dynamic timing must be verified using a dial indicator through the timing port, adjusting shims as necessary to achieve the specified injection advance at 2300 RPM. For repair shops, performing a leak-off test on the injectors prior to pump swap is a critical diagnostic step; a faulty injector can mask a good pump's performance, leading to a misdiagnosis and a comeback.

For parts distributors, the KANGDA 2QT39 represents a high-turnover SKU within the compact diesel segment. Its rebuildable core holds significant aftermarket value; many wholesale buyers factor in the core charge when quoting fleet maintenance contracts. This pump is a frequent candidate for failure due to the high sulfur content often found in agricultural fuels, which accelerates wear on the plunger and delivery valve. Sourcing this KANGDA unit ensures access to hardened internals that are less prone to the scoring seen in poorly maintained units. Keep a steady stock of the corresponding gasket kits and shaft seals to pair with this pump, facilitating a complete fuel system overhaul in one service bay visit.

Q1: Can I install this 2QT39 pump on a JD2118T engine currently using a different brand pump without changing the lines?
A: Yes, it is designed to the same flange and line connection specifications as the JD2118T's original equipment. However, high-pressure lines should be checked for flare integrity and straightness to ensure proper sealing.

Q2: What is the typical failure mode of these mechanical pumps, and does the KANGDA unit address it?
A: The primary failure is scoring of the plunger due to poor fuel lubrication. The KANGDA 2QT39 uses a metallurgy formula that offers enhanced wear resistance against low-lubricity fuels.

Q3: How does inventory holding for this KANGDA pump benefit my wholesale operation?
A: It covers a high-volume engine family used in agricultural and rental sectors. Stocking reduces lead times for service shops relying on rapid repair turnaround, directly affecting their margin.

Q4: Is there a warranty difference when installing this on a non-agricultural stationary engine?
A: Standard warranty covers manufacturing defects. Ensure you register the installation details for traceability, but the 2QT39 is robust enough for constant-speed (1500/1800 RPM) genset applications as well.

Q5: Does replacing just the pump resolve issues with white smoke at startup, or should I also test injectors?
A: White smoke at startup often relates to retarded timing or low compression. While the pump can cause this, always perform a compression test and injector leak-off test to avoid a comeback. The pump is rarely the sole cause of persistent white smoke if timing is spot on.
