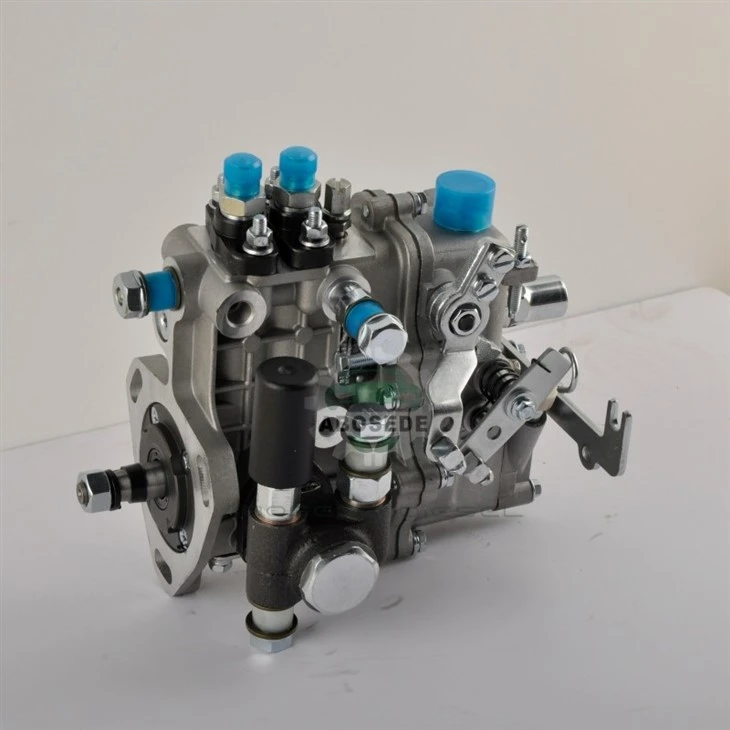

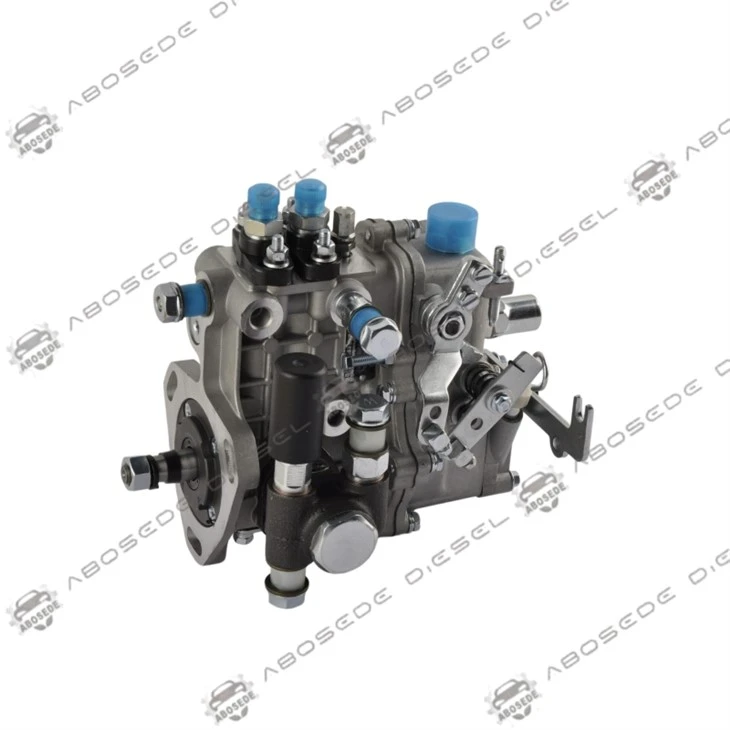

KANGDA 2QT23 / BH2QT85R9 – Precision Fuel Injection Pump For Changchai 2105 Engines

Service workshops seeking a dependable replacement for the Changchai 2105 fuel system will find the KANGDA 2QT23 pump, complete with the BH2QT85R9 hydraulic head, a compelling choice. This mechanical in-line plunger pump operates at 1800 RPM and delivers precisely metered fuel without relying on electronic controls. Its robust governor assembly maintains stable idle and load response, while the hardened plunger-and-barrel set resists wear in demanding agricultural and industrial settings. For repair shops, this unit eliminates the guesswork associated with rebuilt cores, providing consistent flow rates and injection timing straight from the factory.

The BH2QT85R9 designation points to an 8.5 mm plunger diameter matched with a specific cam lift profile that governs fuel displacement per stroke. Bench testing data indicates a static injection timing window between 24° and 26° before top dead center, though the final setting depends on the shim pack thickness used during installation. The pump housing incorporates an integral governor assembly that maintains stable idle and limits maximum speed, critical for generator and stationary industrial applications. The camshaft runs on sintered bearings that receive splash lubrication from the engine crankcase, eliminating the need for a separate oil supply line. All moving contact surfaces undergo nitriding treatment, raising surface hardness to above HRC 60 to resist pitting under continuous load cycles.

This pump directly replaces the factory-installed unit on Changchai 2105 engines, a two-cylinder indirect-injection design frequently found in agricultural tillers, road rollers, and marine auxiliary gensets. The 1800 RPM rating corresponds to the governed speed for 50 Hz power generation, making this component a frequent stock item for dealers serving the Southeast Asian and African equipment markets. Unlike high-pressure common-rail systems that use electronically controlled fuel metering valves, this mechanical pump relies on precise rack-and-pinion positioning to regulate fuel volume, which translates to straightforward troubleshooting with basic hand tools and a dial indicator. Field mechanics appreciate that the pump's mounting flange matches the SAE standard used on the 2105, so no adapter plates or custom brackets are required.

Choosing a new KANGDA pump over rebuilding a worn core shifts the risk profile substantially. Worn camshaft lobes or scored plunger barrels are not always visible during a strip-down inspection, yet they cause erratic fuel delivery that shows up as uneven cylinder firing and increased exhaust temperature on one bank. For a repair shop, fitting a fresh OEM-spec pump reduces comeback risk and cuts the bench calibration time by nearly two-thirds, since the assembly leaves the factory with preliminary flow settings already dialed in. Moreover, the availability of this specific part number 2QT23 through Kangda's distribution network ensures consistent stock levels, so workshops can promise customers a same-week turnaround on 2105 engine overhauls. The mechanical simplicity of the BH2QT85R9 design also means that future service interventions-like replacing delivery valve springs or adjusting idle speed-can be performed in the field with a standard metric socket set, reinforcing its reputation as a low-maintenance workhorse in remote operating environments.

Q1: Is the KANGDA 2QT23 pump a direct bolt-on for a 2105 engine built before 2005?
A: Yes, the mounting flange and shaft taper dimensions have remained consistent across all Changchai 2105 production years. However, pre-2000 units may have different delivery valve holder lengths, so retain your original holders for compatibility.

Q2: Can I swap the governor spring to alter the governed speed above 1800 RPM?
A: Not recommended. The internal governor weights and spring rates are matched to the 1800 RPM rating. Substituting springs may cause hunting or overspeed, risking catastrophic engine failure.

Q3: How do I confirm the pump is delivering equal fuel to both cylinders?
A: Use a graduated test tube and crank the engine with the injector lines disconnected. Collect fuel from each outlet for 200 strokes; the volumes should differ by less than 5% at full rack position.

Q4: What is the average shelf life of a sealed Kangda pump in warehouse storage?
A: Properly stored in its original anti-corrosion wrapper, the pump remains serviceable for up to 36 months. Before installation, rotate the camshaft manually to ensure the plungers move freely and apply a few drops of clean diesel to the lubrication ports.

Q5: Does purchasing this pump include the necessary shims for timing adjustment?
A: The pump ships with a standard shim pack covering the most common timing requirements. If your specific engine block has been decked or the crankshaft pulley replaced, you may need additional shims, which are available separately.
