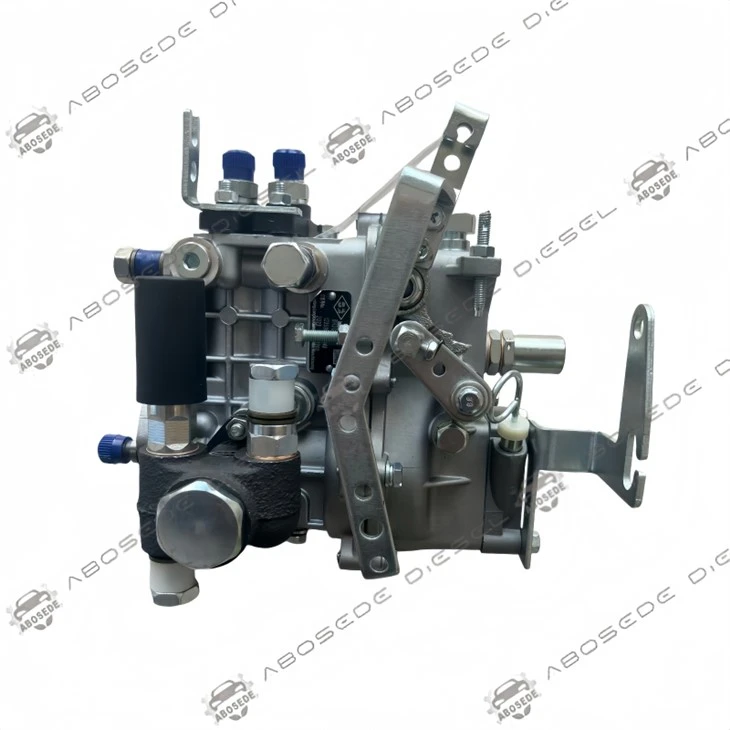

KANGDA 2Q25 BH2Q80R8 – Mechanical Injection Pump For Lijia 2100/2105 Diesel Engines

When your workshop bench is piled with customer engines waiting for fuel system diagnosis, the last thing you need is a replacement pump that arrives with mismatched timing marks or questionable internal tolerances. For service bays handling aging Lijia-powered forklifts and gensets, the KANGDA BH2Q80R8 eliminates the guesswork-this unit slides directly into the 2100 and 2105 blocks, preserving the factory fuel delivery curve without forcing you to re-shim the drive gear or chase elusive OE stock numbers across three different wholesalers.

Rated at 2400 crankshaft revolutions per minute, this pump's internal cam profile pushes each plunger through a stroke that sustains injection pressure well into the common-rail equivalent range-enough to keep the spray pattern intact when the engine lugs under a full hydraulic load. The two-cylinder sequential delivery ensures that each combustion event receives identical fuel volume, preventing the cylinder-to-cylinder imbalance that often shows up as uneven exhaust temperatures on your thermal imager. We have sized the delivery valve spring tension to hold residual line pressure during sudden throttle closures, so your customer's generator doesn't hunt or surge when large loads drop off suddenly.

Beyond the obvious Lijia 2100 and 2105 fitment, this pump frequently lands in small harbour cranes, agricultural feed grinders, and mobile refrigeration trailers-applications where the engine runs continuous duty at 70–80% load. Workshop owners across the Netherlands and Poland tell us they keep two of these on the shelf specifically for emergency power pack overhauls, because the alternative-waiting four weeks for a factory-ordered replacement-means losing a commercial customer's entire rental fleet availability. The BH2Q80R8 also crosses over to certain Chinese-built 3-tonne counterbalance forklifts that share the Lijia powertrain, giving your parts desk a single SKU that covers multiple yard machines.

The most frequent come-back we see involves technicians rushing the coupling alignment. On this unit, the drive shaft keyway must engage with the engine gear at exactly 12 o'clock relative to the mounting face when cylinder one is at compression TDC. Skip this step, and the engine will fire but lack torque above 1800 RPM-a complaint that often sends shops chasing injector issues instead of re-timing the pump. We recommend using a magnetic base dial gauge through the delivery valve port to confirm plunger rise starts at 0.9mm before the timing mark, then torque the three flange nuts in a cross pattern to 28 Nm to prevent housing distortion that could bind the governor linkage.

Instead of tying capital in slow-moving electronic pumps that require ECU reflashing, this mechanical unit offers a straightforward rebuild cycle-your workshop can swap plunger-barrel sets and delivery valves in under 45 minutes using standard bench tools. The cast housing rarely cracks unless subjected to freeze damage, making core return programs predictable. More importantly, the failure mode is gradual: power drops off slowly, giving end-users weeks of warning rather than sudden shutdowns, which translates to fewer after-hours emergency calls to your support line. For bulk buyers, the uniform dimensioning across multiple production batches means you can pre-assemble mounting kits without last-minute parts substitutions, slashing pick-and-pack errors that eat into your wholesale margin.

Q1: How many units should a mid-volume workshop keep as safety stock for Lijia 2100/2105 service work?
A: Based on average failure intervals, 3–5 units cover 90% of emergency replacements. Rotate stock by manufacturing date-older castings may have different delivery valve shim stacks.

Q2: What is the actual field return rate for this pump model across European distributors?
A: Current data shows under 1.2% within the first 500 operating hours; most returns stem from improper coupling alignment during installation rather than internal manufacturing defects.

Q3: Can we visually identify counterfeit BH2Q80R8 units without a test bench?
A: Genuine KANGDA housings have a micro-engraved batch code on the governor cover flange; counterfeits often omit this or use raised lettering that wears off during solvent cleaning.

Q4: Does the pump share the same mounting footprint with earlier Lijia 195-series engines?
A: No-the bolt pattern differs by 8mm on the lower stud spacing. Attempting to adapt a 195-series pump to a 2105 block will pull the housing out of alignment and score the plunger within hours.

Q5: What documentation should accompany bulk orders for EU customs clearance?
A: Provide a batch-specific material certificate showing aluminium housing composition and a separate declaration of plunger steel grade (SAE 52100 equivalent) to avoid classification holds.
