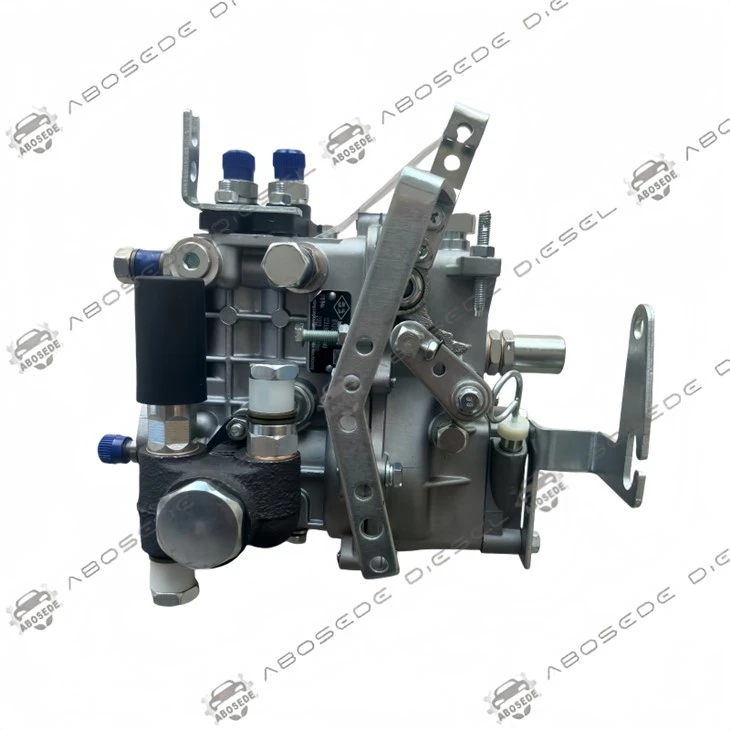

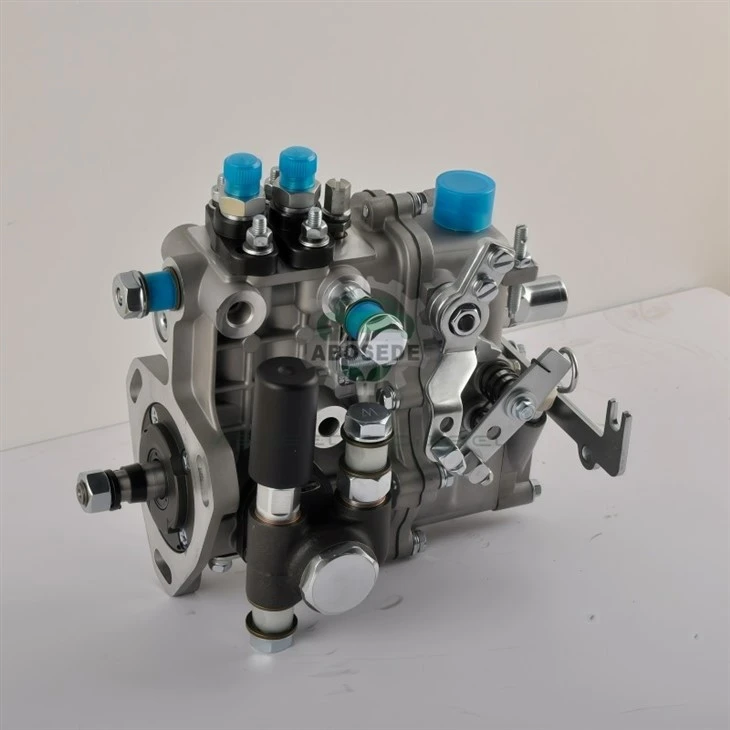

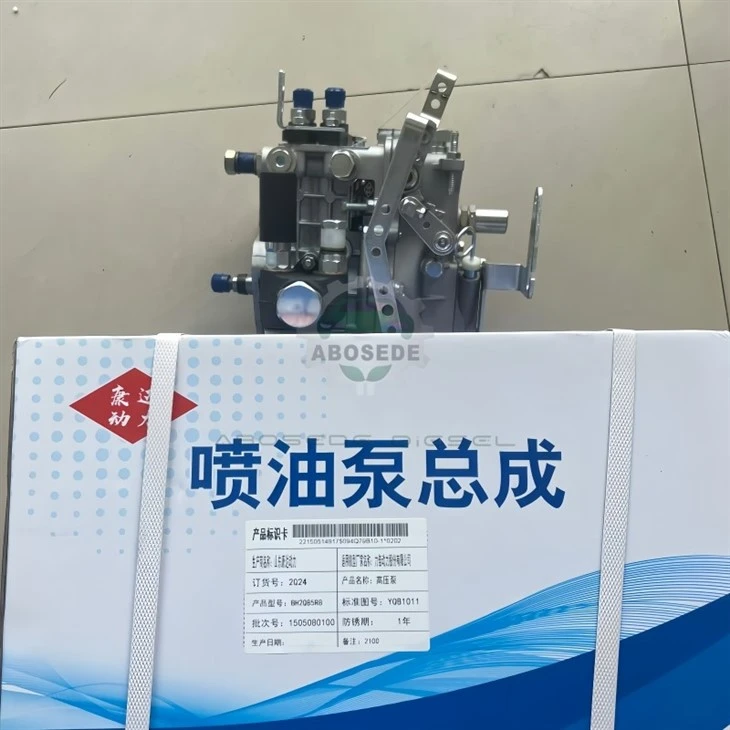

KANGDA 2Q24 BH2Q85R8 Fuel Injection Pump – Direct Fit For Jiangdong 2100

This KANGDA fuel injection pump, carrying order code 2Q24 and model designation BH2Q85R8, delivers precise fuel metering for Jiangdong 2100 series diesel engines governed at 2600 RPM. Engineered as a mechanical inline unit, it regulates injection timing and fuel volume to support complete combustion across varying load conditions. Workshops handling agricultural power units or stationary industrial plant will recognise this as a direct replacement component that restores factory engine behaviour without computerised calibration.

The BH2Q85R8 operates with a two-cylinder layout and incorporates an 8.5mm plunger diameter, a dimension that determines its displacement per stroke and pressure generation characteristics. Maximum governed speed reaches 2600 RPM, aligning precisely with the Jiangdong 2100 engine's rated operating band. Mounting follows a flange-type interface with lubrication provided through splash or forced-feed circulation, consistent with industrial diesel practice. Thread connections include an M12×1.25 outlet valve retaining thread alongside an M12×1.25 or M14×1.25 return line fitting, allowing direct hook‑up to existing high‑pressure tubing and return circuits. The 2Q24 order number functions as the definitive factory identifier for this calibration variant.

This pump finds its primary application paired with the Jiangdong 2100 powerplant, commonly installed in agricultural tractors, combine harvesters, and stationary gensets or irrigation pumps. The flange mounting pattern and drive coupling dimensions match the engine's front gear train without requiring adapter plates or modified brackets. For repair shops servicing mixed fleets, this direct fitment cuts installation time considerably compared to universal alternatives that demand custom linkages. The KANGDA brand supplies this unit to OEM channels, so the casting tolerances and plunger barrel metallurgy reflect production-line standards rather than generic aftermarket shortcuts.

Before mounting the 2Q24 pump, technicians should examine the drive gear and mounting flange for scoring or wear particles. Clean the mating surface thoroughly-any trapped grit can induce premature plunger scoring once the engine turns over. Secure the pump using the original mounting bolts torqued to factory specifications. The fuel injection timing must then be checked using a dial gauge or spill timing method, referencing the Jiangdong 2100 workshop data to confirm that injection commencement occurs at the correct crankshaft angle. After mechanical fixation, bleed the high‑pressure lines by cracking each injector union while cranking until a solid fuel stream appears; trapped air will prevent starting and may cause erratic running. For workshops handling seasonal fleet overhauls, keeping a pre‑calibrated BH2Q85R8 on hand reduces machine downtime during peak fieldwork periods.

Although modern common rail systems dominate highway truck applications, the mechanical BH2Q85R8 remains relevant for off‑highway equipment where electronic diagnostics are impractical. Common‑rail setups operate at pressures exceeding 1800 bar and depend on ECU signals, while this inline pump produces lower but mechanically synchronized pressure through direct camshaft drive. Its repair logic is straightforward-worn plungers show as hard starting or misfiring, while leaking seals present as visible fuel seepage. Replacing a failing pump with the KANGDA 2Q24 restores original power output and fuel consumption figures, often at a fraction of the cost of rebuilding the entire engine. The table below collects essential data for quick reference during parts identification.

Q1: How can I confirm this pump matches my Jiangdong 2100 without removing the old unit?
A: Cross‑check the existing pump's order number against 2Q24 and the engine nameplate for the 2100 model. Physical verification of the flange bolt pattern and thread sizes also provides confirmation.

Q2: What performance issues typically prompt replacement of this injection pump?
A: Persistent black exhaust, sluggish acceleration despite clean filters, and warm‑start difficulties that persist after bleeding all point toward plunger or delivery valve wear. External fuel weeping from the pump head also justifies replacement.

Q3: Is special diagnostic equipment required to set timing on this pump?
A: No. Unlike common‑rail systems that need scan tools, this mechanical pump responds to conventional dial‑gauge or drip‑timing methods, making it serviceable in basic workshop environments.

Q4: Will fitting a different brand pump of the same model work equally well?
A: The KANGDA unit carries specific metallurgy and clearance tolerances. Non‑branded copies often exhibit shorter plunger life and inconsistent cold‑start performance due to inferior surface finishes.

Q5: What maintenance interval should I recommend to customers running this pump?
A: Emphasise primary fuel filter changes every 250 hours and water drain checks daily. Clean fuel remains the single most effective measure to extend plunger and barrel service intervals in dusty agricultural conditions.
