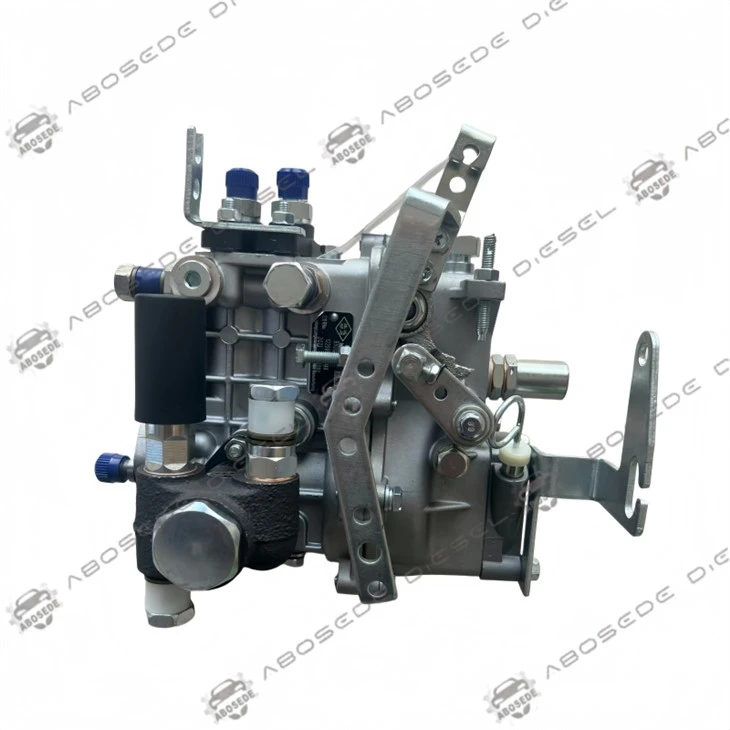

KANGDA 2Q21 BH2Q85R8 Fuel Pump – Direct Fit For 2100T Shandong Tractor Engines

The KANGDA 2Q21 injection pump (model BH2Q85R8) delivers factory-spec fuel metering for 2100T diesel power units commonly installed in Shandong Tractor (Shantuo) agricultural and earthmoving equipment. This mechanical in-line pump operates at a governed engine speed of 2200 RPM, providing consistent rail pressure for multi-cylinder combustion without relying on electronic control modules-a critical advantage for field workshops across Africa and Southeast Asia where diagnostic infrastructure remains limited. Replacing a worn or miscalibrated pump with this fresh BH2Q85R8 unit restores original horsepower, cuts visible black smoke emissions, and reduces crankcase dilution caused by retarded timing events common in high-hour tractor fleets.

Workshop managers prioritise casting codes and stamped identifiers above all else. The KANGDA 2Q21 carries the BH2Q85R8 model designation, a plunger-barrel assembly with an 8.5mm element diameter and right-hand rotation configuration. This pump directly supersedes earlier service codes for the 2100T block without requiring modified drive couplings or altered fuel line brackets. Engine speed is factory-limited to 2200 RPM through internal flyweight governor settings, ensuring the tractor maintains stable PTO output during ploughing or hauling operations. All mounting flanges, delivery valve holders, and inlet connections conform to Shandong Tractor's original tooling dimensions, so replacement consumes minimal bay time-typically under ninety minutes for a competent diesel technician.

Across Nigerian ginger farms, Kenyan horticultural estates, and Indonesian palm oil plantations, the Shantuo 2100T remains the workhorse of medium-scale mechanisation. However, the original BH2Q85R8 pump suffers from plunger wear after 4,000–5,000 operational hours, particularly when running on high-sulphur or adulterated fuel. Symptoms include hard starting, uneven idle, excessive exhaust temperature, and torque fade under load. Installing the KANGDA 2Q21 eliminates these complaints because its hardened plunger and precision-ground barrel withstand abrasive particles better than generic rebuilds. For wholesale buyers in Mombasa, Lagos, or Surabaya, stocking this in-line diesel injection pump addresses the single most frequent workshop complaint for this engine family, reducing return rates and customer call-backs significantly.

Mechanical pumps demand disciplined installation procedures. Before bolting the BH2Q85R8 onto the 2100T timing case, verify that the drive shaft keyway aligns perfectly with the engine's TDC mark-misalignment by even one spline tooth shifts injection advance by approximately 6° crank angle, producing audible knock and eventual piston damage. Always replace the copper sealing washers under the delivery valve holders and the O-ring at the inlet tee, as reused seals invariably weep fuel and invite air ingress. Prime the low-pressure gallery using a hand lever pump until fuel flows bubble-free from the bleed screw, then crank the engine with injector lines cracked to purge trapped air. Torque the mounting nuts to 45–50 Nm in a cross pattern to avoid distorting the pump housing, which could bind the control rack and cause erratic governing behaviour under variable throttle positions.

Q1: Will this BH2Q85R8 pump directly replace the older BH2Q85R7 variant on a 2100T engine?
A: Yes, the mounting flange and drive coupling are identical. However, the R8 revision features updated governor spring rates that improve torque rise at 2200 RPM, making it a superior choice for heavy tillage. No adapter plates or modified lines are required.

Q2: Does KANGDA offer any quantity discount for container orders to African ports?
A: Bulk purchasing options are available for wholesale clients ordering 20 units or more per shipment. Contact the sales desk directly with your target port (e.g., Mombasa, Durban, or Lagos) for a consolidated sea-freight quotation.

Q3: How can I verify that my Shantuo tractor actually runs the 2100T and not the 2105 variant?
A: Check the engine serial number plate mounted on the timing gear housing. The 2100T displaces 2.0 litres with a bore of 100 mm, while the 2105 is larger. Only the 2100T accepts the BH2Q85R8 calibration-the 2105 uses a different fuel map.

Q4: Is this pump delivered with the drive gear pre-installed, or must we transfer the old one?
A: The KANGDA 2Q21 ships without the drive gear. You must remove the existing gear from your worn pump using a hydraulic puller and reinstall it onto the new shaft, observing the correct keyway alignment. Always fit a new woodruff key.

Q5: What is the typical shelf life for a new BH2Q85R8 pump stored in a humid warehouse?
A: If kept in its original sealed plastic bag with desiccant, the pump remains serviceable for 24 months. For tropical storage above 80% RH, we recommend additional vapour-phase inhibitor paper inside the delivery valve ports to prevent internal corrosion.

Q6: Can this pump run on B20 biodiesel blends commonly sold in Southeast Asia?
A: Yes, the BH2Q85R8 elastomers and plunger clearances tolerate B20 fuel. However, reduce the oil change interval to 150 hours because biodiesel increases fuel dilution in the crankcase, which degrades lubricating oil faster than petroleum diesel.
