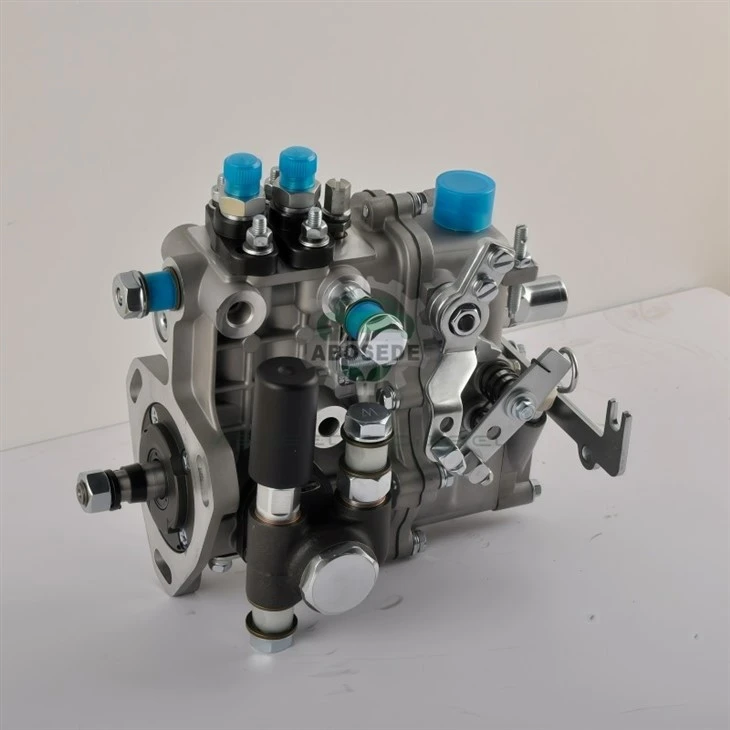

KANGDA 2Q04 BH2Q85R8 – Fuel Injection Pump For 2100 Diesel Engine

This inline fuel injection pump, designated as KANGDA 2Q04 (BH2Q85R8), directly addresses the fueling demands of 2100 series power units. Engineered for the Yunnan Jinma machinery lineup, this component sustains rated performance at 2600 RPM while maintaining injection precision across varying load cycles. For workshops handling agricultural tractors or stationary gensets, this pump offers a viable alternative to dealer-only sourcing without compromising on hydraulic calibration or mounting interoperability.

Within the BH2Q85R8, the plunger and barrel assembly governs fuel metering with a stroke calibrated to the 2100 engine's swept volume. The "Q85" designation references an 8.5mm plunger diameter, directly influencing the maximum fuel delivery per injection event. Cam lift profiles determine injection timing relative to crankshaft position, and this unit's mechanical governor adjusts rack position in response to engine speed variations. Mounting follows the BQ series flange pattern, ensuring alignment with existing gear train interfaces on Jinma engine blocks. Hardened tappets within the housing endure repeated cam lobe contact, reducing the likelihood of premature wear in high-hour applications. The unit's delivery valve holder configuration matches original equipment specifications, permitting straightforward high-pressure line attachment without adapters.

Correct fitment begins with positioning the engine at top dead centre on the compression stroke, after which the pump drive gear marks must align with the timing gear housing reference points. Slotted mounting holes on the pump flange provide fine adjustment capability for static timing, though initial gear engagement is keyed to prevent gross misalignment. Torque application to the fixing nuts should reach 25–30 Nm, while drive shaft end-play requires verification between 0.05 and 0.10 mm using a dial gauge. High-pressure fuel lines demand double-flaring and tightening to manufacturer-specified values to prevent seepage at operating pressures approaching 600 bar within the plunger chamber. For precise calibration, a dial indicator measures plunger lift at the moment of spill port closure, confirming that fuel delivery commences exactly as the 2600 RPM governor setting demands. This procedure minimizes combustion roughness and optimises thermal conversion efficiency across the operating band.

 The 2100 platform appears extensively in field tractors, compact loaders, and auxiliary generator sets where torque sustainability remains non-negotiable. Unlike universal aftermarket alternatives, the KANGDA unit carries governor calibrations that reflect the airflow and compression characteristics unique to Jinma's cylinder head design. This tailored approach prevents common operational complaints such as load-induced surging or acceleration smoke, which often arise from mismatched fuel delivery curves. For overhaul shops, selecting this pump eliminates the guesswork associated with re-tuning mechanical governors, as the factory-set spring tensions and weight configurations match the original engine mapping.

Although common rail system technology dominates newer platforms, mechanical pumps like the BH2Q85R8 remain indispensable for the vast 2100 engine population still active worldwide. Replacing a deteriorating unit restores fuel pressure integrity, which translates directly into measurable reductions in hourly fuel consumption and lowered particulate emissions during field operation. For service centres, this part represents a consistent mover-diesel oxidation and water contamination frequently cause plunger sticking, a failure mode well-documented in regions with variable fuel quality. The KANGDA 2Q04 also offers a rebuildable housing, allowing workshops to exchange plunger and barrel assemblies or governor springs rather than discarding the entire component. The table below summarises key service reference data:

Q1: Does the BH2Q85R8 arrive with the governor pre-set for the Jinma 2100, or must we adjust it during installation?
A: Factory governor settings reflect Jinma's original calibration curves. Minor idle adjustments remain possible via the external screw, yet the internal spring and weight configuration requires no modification for standard applications.

Q2: Which symptoms suggest plunger wear rather than delivery valve deterioration?
A: Persistent black smoke and power loss under load point toward plunger wear. Erratic idling or hard starting often trace to delivery valve leakage or spring fatigue.

Q3: What service interval do you recommend for this pump in continuous agricultural use?
A: With adequate pre-filtration and regular water separator draining, expect 8,000 to 10,000 operational hours. Fuel contamination drastically shortens this interval.

Q4: Are timing tools included with the pump, or must we source them separately?
A: The pump ships without timing instruments. A standard dial indicator with a suitable adaptor is required for precise lift measurement during installation.

Q5: Can we order plunger assemblies individually for rebuilding worn units?
A: KANGDA offers service kits containing plunger and barrel sets, delivery valves, and governor springs. Housing and camshaft condition must be assessed before rebuilding.

Q6: Does this pump support alternative governor spring rates for modified engines?
A: This unit carries fixed spring rates for the standard 2100 rating. Governor modifications are not recommended without consulting a fuel system specialist.
