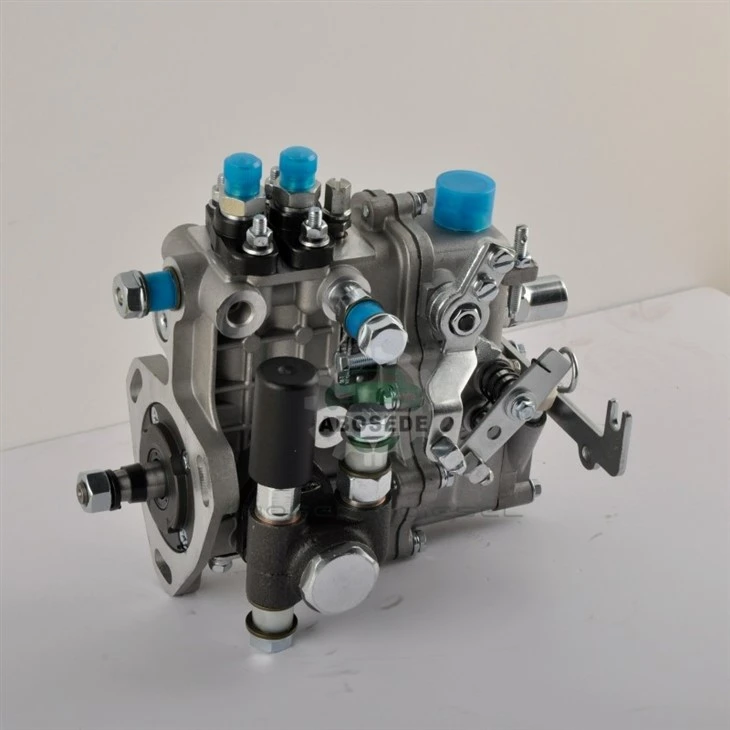

KANGDA 2QT25 BH2QT85R9 Fuel Injection Pump

Direct-fit replacement fuel injection pump engineered for the Jiangdong 2110 diesel block. This KANGDA unit carries order code 2QT25 and pump model BH2QT85R9, delivering precisely metered fuel at 2400 RPM to support 26 kW power output. Built for workshops that prioritize dependable starts and steady field performance, this pump eliminates guesswork when servicing two-cylinder agricultural powerplants. Every unit undergoes factory calibration to match the original engine mapping, ensuring seamless integration with existing fuel lines and governor linkages.

This mechanical inline pump operates with a plunger stroke calibrated to the Jiangdong 2110 firing interval. Static injection timing must be verified using the flywheel TDC mark and a dial gauge on the pump delivery valve holder. The BH2QT85R9 body carries factory-specified shim adjustments for timing fine-tuning; do not discard original shims during overhaul. Fuel delivery volume per stroke at rated speed falls within OEM tolerance bands, ensuring the engine hits its 26 kW rated shoulder without overfueling or lugging. The drive shaft uses a standard parallel key connection, and the mounting stud pattern matches the Jiangdong gear case exactly-no adapter plates or bracket modifications required. The governor spring tension is preset at the factory, but workshops should verify idle and max-speed settings using a handheld tachometer before returning the machine to service.

Beyond the primary Jiangdong 2110 application, this 2QT25 pump swaps onto several sibling engines sharing the BH2Q family footprint, including certain Changchai, YTO, and Laidong two-cylinder units used in small tractors, walking-type harvesters, and stationary chaff cutters. Fleet operators maintaining mixed Chinese diesel equipment will find this single part number covers multiple chassis, reducing inventory clutter. The pump governor response suits PTO-driven implements where load fluctuates suddenly-think balers and rotary tillers working heavy clay soils. Repair shops serving grain-growing regions should stock this unit for seasonal rush repairs when original pumps suffer water ingress or plunger seizure. The BH2QT85R9 also fits certain generator sets and water pumps that share the same mounting flange dimensions, expanding its utility beyond agricultural machinery.

Mounting this BH2QT85R9 pump demands strict attention to gear mesh backlash and fuel line routing. Rotate the crankshaft to cylinder-one compression TDC, then confirm the pump timing mark aligns with the inspection window. Hand-tighten the three M10 flange nuts progressively to avoid distorting the pump housing. Replace all copper sealing washers on banjo fittings-reusing crushed washers invites air ingress and hard hot-starts. Prime the low-pressure circuit using the hand primer lever until fuel flows bubble-free from the return line. Crank the engine with injector lines cracked open, then torque each line nut to the specified setting once steady fuel jets appear. Never overtighten the delivery valve holders; stripped threads here mean a new pump head assembly. Also inspect the drive gear keyway for wear; a loose key introduces timing fluctuation that mimics pump failure.

Q1: Can this BH2QT85R9 pump run on biodiesel blends or high-sulfur fuel?
A: The plunger and barrel materials tolerate B20 biodiesel, but high-sulfur fuel accelerates wear on the delivery valve seats. Use a premium fuel filter/water separator and shorten drain intervals to 150 hours when running aggressive fuel stocks.

Q2: How do I distinguish genuine KANGDA casting from clone copies?
A: Genuine housings carry a laser-etched KANGDA logo and date code near the nameplate-clones often omit this or use poorly spaced stamped letters. Also weigh the pump; clones run 200–300 grams lighter due to thinner flange casting.

Q3: What is the most frequent installation error you see from garages?
A: Misaligning the drive gear by one tooth, which shifts injection timing by roughly 6–8 crankshaft degrees. This causes piston-ring hammering and rapid exhaust-valve burning. Always double-check the gear mark with the timing pin inserted.

Q4: Is bench calibration mandatory after mounting, or can I run it straight out of the box?
A: Factory calibration holds for most applications, but we strongly recommend a delivery-valve leak-check and a pop-test on each cylinder before final installation-this catches any transit damage to the internal damping springs.

Q5: What annual preventative measure prolongs pump life on seasonal-use tractors?
A: Before winter storage, run the engine until warm, then shut off fuel and idle to dryness. Fill the pump cavity with clean diesel mixed with 10% automatic-transmission fluid-this coats internal parts and prevents moisture pitting during lay-up.

Q6: Does this pump include the stop solenoid and throttle lever, or are those transferred from the old unit?
A: The unit ships with a new stop solenoid and throttle shaft assembly. Transfer only the fuel-inlet banjo and high-pressure line fittings from your previous pump-these are not included to avoid thread-match issues.
