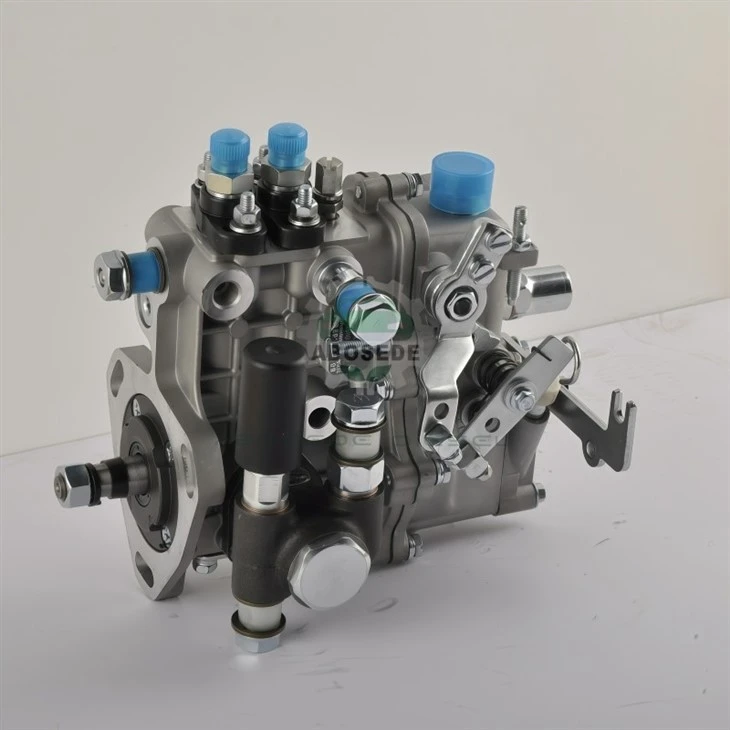

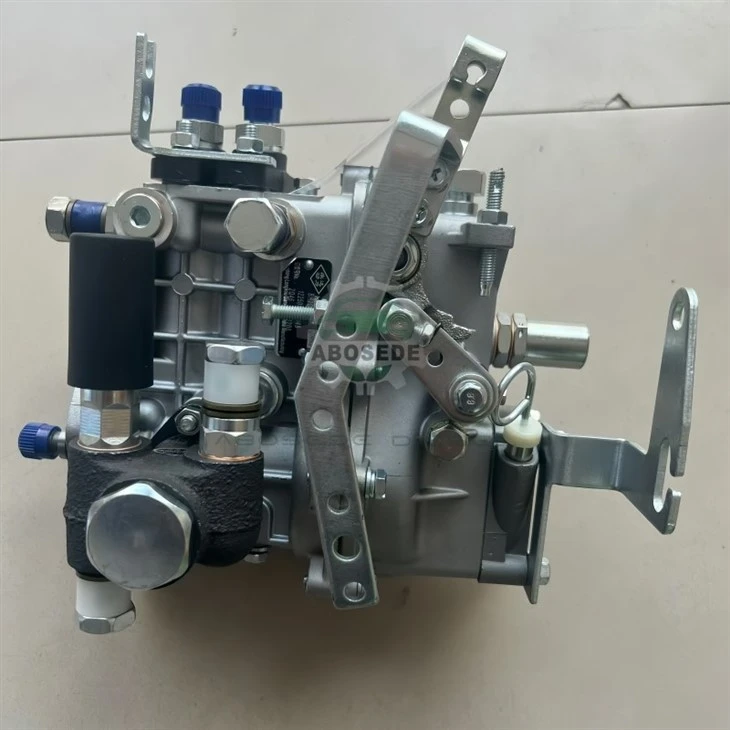

KANGDA 2QT87 / BH2QT85R9 – Fuel Pump For 2105 Engine – Workshop Perspective

When that 2105-powered skid steer or genset sits idle for a second day because injection pressure dropped below 120 bar, the service bay loses revenue and the customer starts questioning your parts source. The KANGDA 2QT87 mechanical pump, carrying the BH2QT85R9 head designation, directly addresses the two cost centres workshop owners track most: unplanned downtime and repeat labour. Built for the Weifang Kaiwo 2105 diesel platform at 2400 RPM with a rated 25.7 kW output, this pump cuts the risk of comebacks by eliminating the most common failure points found in aged BQ-series units-worn plunger barrels, sticky delivery valves, and governor spring fatigue that drifts timing after 200 running hours.

The BH2QT85R9 uses an 8.5 mm plunger sliding inside a matched barrel at injection pressures peaking around 160 bar. With agricultural fuel often carrying abrasive fines, the clearance between these lapped surfaces opens from the factory 3-micron tolerance to over 8 microns within 3,000 hours-enough to drop rail pressure and cause ragged idle. Rebuilding in-house demands a certified calibration bench and a clean room, neither of which fits a typical bay layout. The KANGDA 2QT87 arrives with factory-set delivery valve lift and governor spring preload, so the workshop skips the trial-and-error timing dance. Bolt it on, set static timing at 18–22° BTDC, and the engine returns to rated power without chasing elusive fuel knock or white smoke at cold start.

Stocking pumps for every 2105 variant ties up capital that could turn over faster on filters and consumables. The 2QT87 order code simplifies that-it fits the Weifang Kaiwo block and cross-references to a dozen Chinese tractor and compressor OEMs running the same gear-driven interface. From a parts manager's perspective, one SKU covers generators, water pumps, and small loaders in the rental fleet. The mechanical governor design tolerates fuel quality swings that would send common rail injectors into early failure, meaning fewer warranty claims and less time explaining to rental customers why the machine won't take load.

The installation itself eats about 2.5 hours of bay time if the pump drive gear and timing cover come off cleanly. Transferring the delivery valve holders and high-pressure line nuts from the old unit takes care-cross-threading the inlet banjo (12 mm) adds an unplanned parts run. Pre-filling the housing with clean diesel before cranking is non-negotiable; dry starts score the new plunger within the first revolution. After torquing union nuts to 25–30 N·m, the technician bleeds each injector line until fuel streams free of air bubbles. Idle speed adjustment to 650–750 RPM and max speed limit at 2,400 RPM under no load are the final steps. If the shop skips dynamic timing verification with a strobe light, low-load hunting often returns after 50 hours-a callback that erodes margin on the job.

Q1: How many hours of field operation can a shop realistically expect from a fresh KANGDA 2QT87 before fuel delivery drops off?
A: With average agricultural diesel and regular filter changes at 250-hour intervals, the plunger and barrel maintain stable pressure for 4,000–5,000 running hours. Rental units with poor fuel discipline see 3,000 hours-still double the life of a rebuilt original in the same conditions.

Q2: Do we need to order any companion parts (gaskets, shims, or seals) separately for a first-time replacement on a Weifang Kaiwo 2105?
A: The pump includes the mounting gasket and drive gear nut. You will need to reuse or replace the high-pressure line copper washers (two per injector) and the fuel inlet banjo washers-these are not bundled. Order a seal kit if the fuel shut-off solenoid O-ring appears aged.

Q3: What is your return policy on a batch of 5–10 pumps if we find that one unit has a sticky delivery valve out of the box?
A: Standard wholesale terms allow return or exchange within 30 days for manufacturing defects. For volume orders, we recommend bench-checking one random unit per batch before distributing to field techs-if that sample passes, the entire lot typically falls within factory calibration limits.

Q4: Has this pump been validated on 2105 engines running biodiesel blends (B20 or higher)?
A: Yes, the mechanical governor and nitrile seals handle B20 without swelling or stickiness. For B30, we suggest shortening filter change intervals to 150 hours and inspecting the plunger return spring at 2,000 hours-biodiesel's higher viscosity can slow governor response at cold start.

Q5: Can we order with a modified max fuel screw setting for high-altitude sites above 2,000 metres?
A: Standard pumps come with universal calibration. For altitude, your tech can back out the max fuel screw by one full turn and re-check smoke output. We do not factory-preset for altitude because each site's turbo or non-turbo configuration varies.
