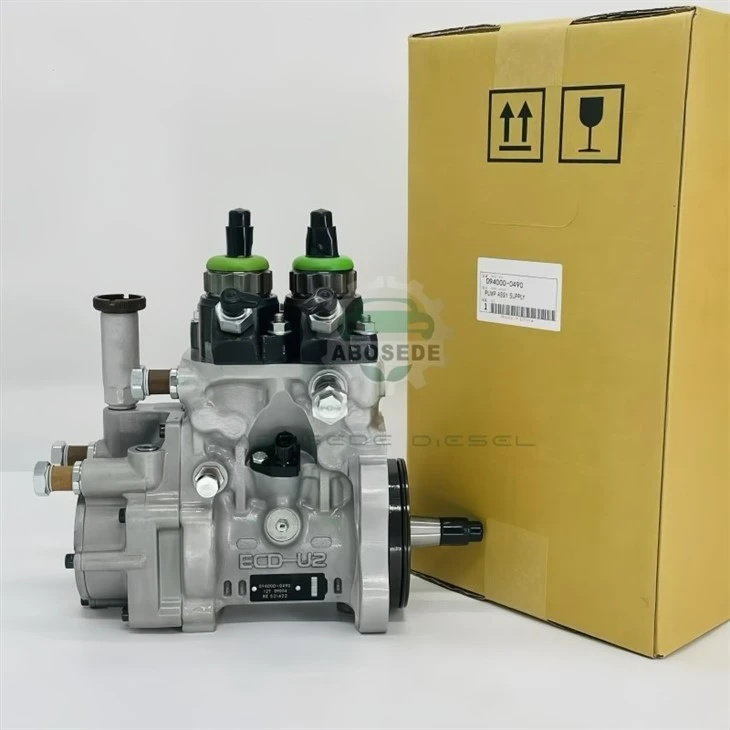

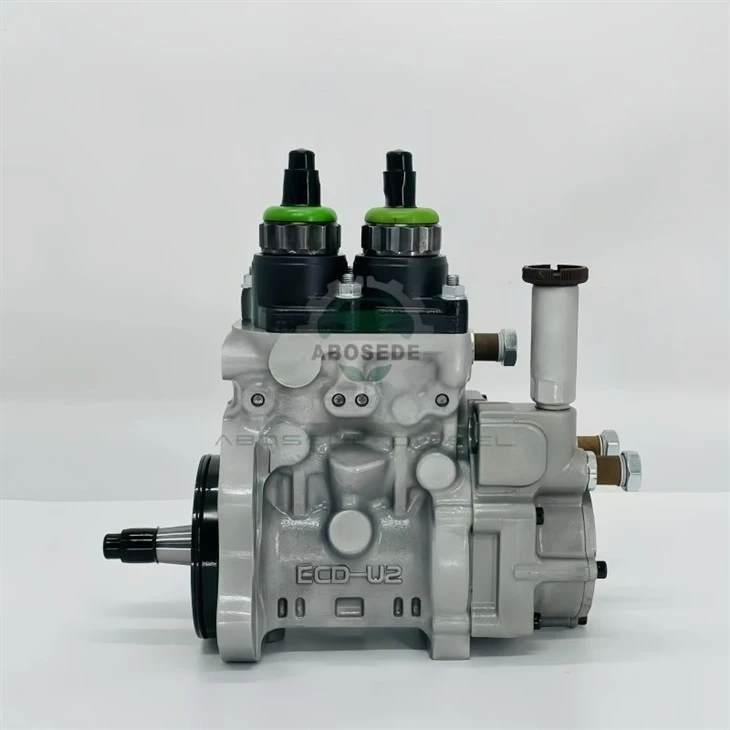

John Deere 094000-0490 RE521422 CR HP0 Fuel Injection Pump

The 094000-0490 RE521422, engineered by DENSO as a core element of the Common Rail (CR) fuel system, is a high-pressure fuel injection pump specifically calibrated for John Deere's 8.1L and 6.8L power platforms. This unit serves as the hydraulic heart of the fuel system, responsible for generating the extreme rail pressures necessary for precise combustion timing in modern Tier II and Tier III agricultural machinery. As an OEM-standard replacement for the original equipment, this pump ensures that tractors, combines, and cotton pickers restore their rated horsepower output, maintain fuel efficiency, and comply with emissions regulations. For workshops and parts suppliers, understanding the pump's specifications, installation nuances, and diagnostic implications is crucial for delivering a reliable solution to end-users facing low rail pressure faults or mechanical wear.

The 094000-0490 pump operates on the DENSO ECD-U2 platform, utilizing a two-plunger, three-lobe cam configuration to generate high-pressure fuel for the common rail. This specific iteration, cross-referenced with John Deere part numbers RE521422 and SE501920, is a HP0 series pump characterized by its robust construction and specific flow rate calibration for the 8.1L displacement class. Critical technical parameters include the fuel inlet screw specifications and the precise valve timing required for the SCV (Suction Control Valve) actuation. The pump houses two control valves (PCVs) that manage fuel delivery to the rail, operating with coil resistances typically around 1.2 ohms, a specification vital for ECU compatibility. This unit is a direct "outright sale" replacement, eliminating the need for a core exchange in many supply chains, and weighs approximately 6 kg, requiring specific handling during logistics and installation to prevent damage to the high-pressure fuel pump plungers and internal bearings .

This fuel pump delivers extensive cross-compatibility across the John Deere lineup, serving both agricultural and industrial sectors. It is a direct fit for the 6081 and 6125 engine families, covering the 8.1L and 6.8L variants. In the tractor segment, this pump is the standard replacement for the 7000 and 8000 Series models, including the 7720, 7820, 7920, 8120, 8220, 8320, 8420, 8520, and their T-track variants, extending to the large-frame 9020 Series such as the 9120, 9220, 9320, 9420, 9520, and 9620. Beyond tractors, the RE521422 pump is critical for the 9650, 9660, 9750 STS combines, the 9996 cotton picker, the 4920 sprayer, and the 3510 sugarcane harvester . This wide application range makes it a high-demand inventory item for suppliers catering to diverse agricultural operations, particularly during harvest seasons when pump failure leads to costly downtime.

Installing the 094000-0490 pump on a John Deere 8.1L engine requires meticulous attention to timing and fuel system integrity. Prior to mechanical installation, technicians must relieve the fuel system pressure and disconnect the battery. The process involves ensuring the alignment of the pump drive gear and verifying that the internal shaft is engaging correctly with the engine camshaft to avoid shearing. Critical to the installation is the handling of the high-pressure lines; technicians must ensure fittings are torqued to specification to prevent leaks and avoid contamination ingress into the common rail. Once installed, the system requires priming using the hand pump on the fuel filter base to expel air from the low-pressure circuit. However, unlike mechanical pumps, this DENSO unit requires a diagnostic scan tool (such as Service ADVISOR) to perform the "High Pressure Pump Calibration" or to bleed air from the high-pressure side. Field experience indicates that failure to perform the ECU reset for the fuel rail pressure sensor can result in a 72E diagnostic trouble code, indicating low rail pressure despite a functional pump .

For the diesel repair aftermarket, the RE521422 pump represents a significant maintenance milestone. In the common rail system, the pump is subjected to extreme internal pressures and relies on the fuel itself for lubrication. Common failure modes in the 8.1L engine include internal wear of the plungers leading to inadequate pressure build-up and faulty SCV solenoids causing erratic rail pressure. While the pump is robust, its lifespan is heavily dependent on fuel quality and filtration; water ingress or contaminated diesel can cause catastrophic failure of the pumping elements. Replacing a worn pump with a genuine 094000-0490 unit not only resolves "no-start" conditions and hard starting issues but also protects downstream components like the fuel injectors from damage caused by pressure fluctuations. For the commercial repair shop, offering this OEM-spec pump provides a competitive edge, ensuring that repairs yield maximum uptime and fuel economy for the end-user, which is the ultimate metric of value in the agricultural sector.

Q1: How do I verify if the 094000-0490 pump is truly failing, or if the ECU is causing the loss of rail pressure?
A: To isolate the pump, technicians should monitor the SCV (Suction Control Valve) current and the actual fuel rail pressure during cranking. If the ECU commands the SCVs to open but the rail pressure remains below the minimum threshold (e.g., below 150 bar), the pump is likely mechanically deficient. However, checking the wiring harness for resistance (approx. 1.2 ohms at the coils) and ensuring the ECU receives proper voltage are critical steps to rule out electronic control issues before condemning the pump .

Q2: Can this RE521422 pump be installed without specialized diagnostic equipment?
A: While physically bolting it on is possible, a diagnostic tool is strongly recommended. After installation, you must perform a "High Pressure Pump Learn" procedure using software like John Deere Service ADVISOR to calibrate the fuel injection pump to the engine control unit, ensuring precise fuel metering and preventing performance codes .

Q3: What is the core return policy for the 094000-0490, and is it a remanufactured unit?
A: The policy varies by supplier. Many aftermarket channels offer this as an "outright sale" without a core deposit, meaning you keep the old unit. However, if purchasing through a remanufacturing program, there is usually a core charge. Always verify if the purchase is for a brand-new DENSO pump or a remanufactured core to ensure the warranty terms align with the rebuild quality .

Q4: Does the pump fit both the 8.1L (6081) and 6.8L (6125) engines without modification?
A: Yes, the RE521422 is a direct fit for both engine displacements. The mounting flange, drive gear, and the high-pressure connection fittings are identical across the 6081 and 6125 platforms, making it a versatile stock-keeping unit (SKU) for dealerships and independent repair shops .

Q5: What are the tell-tale operational signs of a failing fuel injection pump on a John Deere 8120 tractor?
A: The primary symptoms include hard starting when hot, a distinct loss of power under load, and erratic engine speed. In worst-case scenarios, operators may experience a sudden engine stall, with the ECU logging a code for rail pressure deviation. This is often accompanied by no visible smoke from the exhaust during cranking, indicating the injector pump is failing to supply fuel to the rail .
