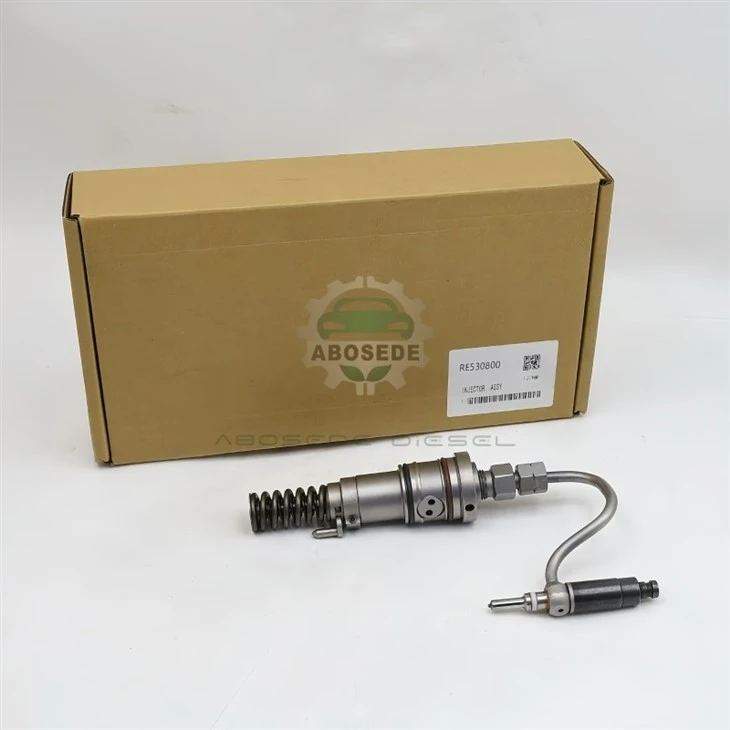

John Deere RE530800 Fuel Pump – Direct Stanadyne Replacement For 4024T / 5030T Power Units & 4120–5325 Tractors

The RE530800 serves as a direct-exchange Stanadyne injection pump for John Deere's 4024T and 5030T engine families, supplying the high-pressure fuel delivery these common-rail architectures require for consistent combustion. This remanufactured unit replaces earlier OEM numbers SE502063 and RE527751, fitting a broad cross-section of compact and utility tractors including the 4120, 4320, 4520, 4720, 5225, and 5325. For repair shops diagnosing erratic rail pressure or hard-start conditions on these Deere platforms, this pump addresses the central hydraulic failure point without forcing a costly full-system overhaul.

This pump mirrors the factory displacement and timing characteristics of the original Stanadyne DB4 series, calibrated specifically for the 2.4L and 3.0L turbocharged blocks. The mounting interface uses the standard M16 side bolts that secure it to the gear housing, maintaining the same drive lash as the factory-installed component. Output pressure curves match the OEM baseline, ensuring the common rail system receives fuel at the correct volume across the entire RPM band-from idle through the 1680 RPM torque peak typical of the 5030T engine. Cross-application data also confirms fitment for select Deere compact track loaders and wheel loaders (317, 320, 325, 328, CT322, 244J, 304J), making this a versatile inventory SKU for dealers serving mixed agricultural and light construction fleets.

The operational environment for these tractors-particularly the 4720 and 5225 models working heavy PTO-driven implements-subjects the injection pump to sustained thermal load and fluctuating fuel quality. Water contamination remains the primary killer: even small amounts emulsified in the fuel strip lubrication from the pumping plungers, leading to micro-scoring that reduces volumetric efficiency. A second major stressor is fuel filter neglect; when primary filters bypass due to clogging or age, abrasive silicates from dust enter the pump and erode the cam ring followers. Workshops frequently encounter 4520 units that start fine cold but lose rail pressure once the engine reaches operating temperature-a classic symptom of internal leakage past worn plunger assemblies. The RE530800 directly counters these failure modes by restoring tight plunger-to-barrel clearances that the original pump loses over 2,000+ hard hours.

Mechanical synchronization is non-negotiable when seating this pump. Begin by removing the inspection cover and rotating the crankshaft to align the timing mark on the flywheel with the static pointer. The pump drive gear carries a reference dot that must align with the mark cast into the gear housing-one tooth off will shift injection timing by approximately 7 degrees, sufficient to cause audible knock and elevated EGTs. Torque the mounting fasteners to the factory specification using a calibrated torque wrench, then reconnect the high-pressure lines in the correct firing order. Before cranking, actuate the hand primer until fuel flows free of air bubbles from the return line. A dry initial spin on a new pump can gall the internal rotating group within seconds, so filling the pump inlet with clean diesel or lubricity additive prior to line connection is strongly advised. Post-installation, idle the engine for two minutes and inspect for fuel seepage around the drive shaft seal-any leakage indicates a compromised O-ring that must be addressed before the machine returns to service.

When a 4120 or 5325 presents with pressure-related fault codes, the repair decision often pits pump replacement against injector swapping or rail component changes. Field data shows that the RE530800 intervention resolves the majority of low-pressure complaints at roughly one-third the cost of a full injector set, while also eliminating the diagnostic ambiguity that surrounds intermittent fuel delivery issues. Furthermore, in cases where biodiesel blends (B20 or higher) have degraded internal seals, replacing the pump eliminates the source of particulate generation that would otherwise contaminate the injector nozzles downstream. For parts buyers managing service bay efficiency, stocking this pump SKU means fewer comebacks related to residual contamination, since a fresh unit eliminates the metal debris that a cleaned but worn pump would continue shedding into the rail.

Q1: How do I confirm the RE530800 is the correct pump for my 4320 if the serial number falls outside the listed range?
A: The RE530800 supersedes earlier part numbers for all 4024T and 5030T engines regardless of tractor serial break. Verify your existing pump has the same M16 side-mount pattern and drive gear count-if it carries SE502063 or RE527751 casting marks, this unit is a direct physical and hydraulic match.

Q2: Can a failing RE530800 trigger injector-related fault codes on the display?
A: Absolutely. The ECU monitors rail pressure versus desired pressure; a worn pump that cannot sustain demand will log codes typically associated with "fuel pressure deviation" or "rail pressure plausibility." These are often misdiagnosed as injector faults, so always perform a return-flow test before condemning the injectors.

Q3: What is the recommended procedure for flushing the fuel system after replacing a pump that suffered contamination damage?
A: Drain the fuel tank completely, replace both primary and secondary filters, and blow compressed air backward through the supply line to dislodge settled debris. Do not reuse any fuel that was in the system during the pump failure, as it carries abrasive particles that will damage the new unit within hours of operation.

Q4: Does this remanufactured pump come with a new drive shaft seal pre-installed?
A: Yes, all remanufactured RE530800 units include a fresh shaft seal and mounting O-ring. However, always inspect the seal lip for any handling damage before installation-even a minor nick will develop into a fuel leak once system pressure builds.

Q5: How does operating altitude affect the pump's performance on a 5225 tractor?
A: The mechanical governor on this Stanadyne pump compensates for altitude through its inherent torque-curve shaping, but extreme elevations above 8,000 feet reduce air density and may cause smoky operation. The pump itself delivers the same fuel volume; proper turbocharger wastegate adjustment is more critical for altitude compensation than pump calibration.

Q6: What warranty period applies to commercial-use RE530800 pumps in a rental fleet application?
A: Commercial fleet installations typically carry a reduced warranty window-usually 6 months or 500 hours-compared to agricultural owner-operator use. Verify with your supplier whether the pump is rated for continuous heavy-duty cycling, as rental machines often accumulate hours faster and experience more operator-induced fuel contamination events.
