John Deere John Deere RE534688 Integrated Fuel System – Precision Common Rail Delivery For 4024T / 5030T Engine Platforms & 4120–5325 Tractor SeriesIntegrated Fuel System – Precision Common Rail Delivery For 4024T / 5030T Engine Platforms & 4120–5325 Tractor Series

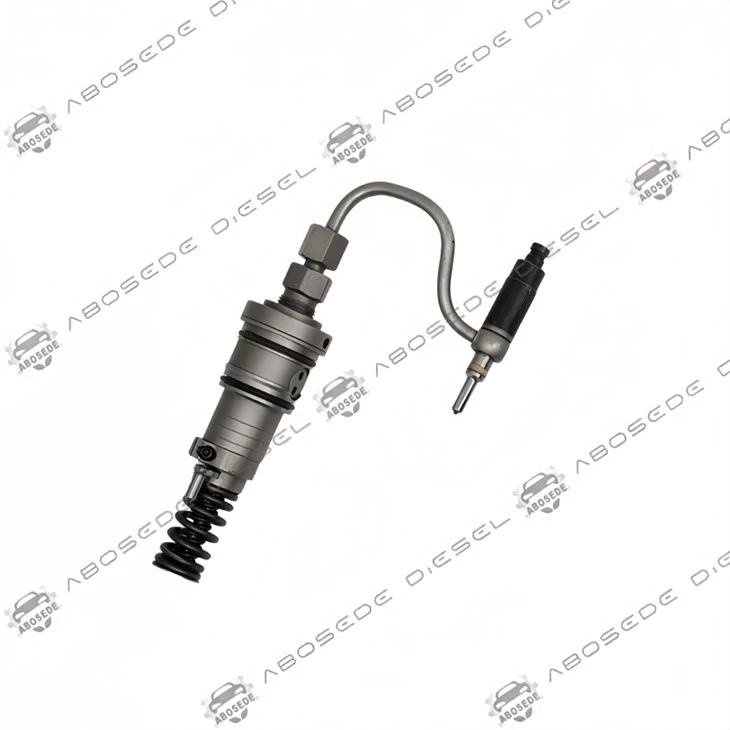

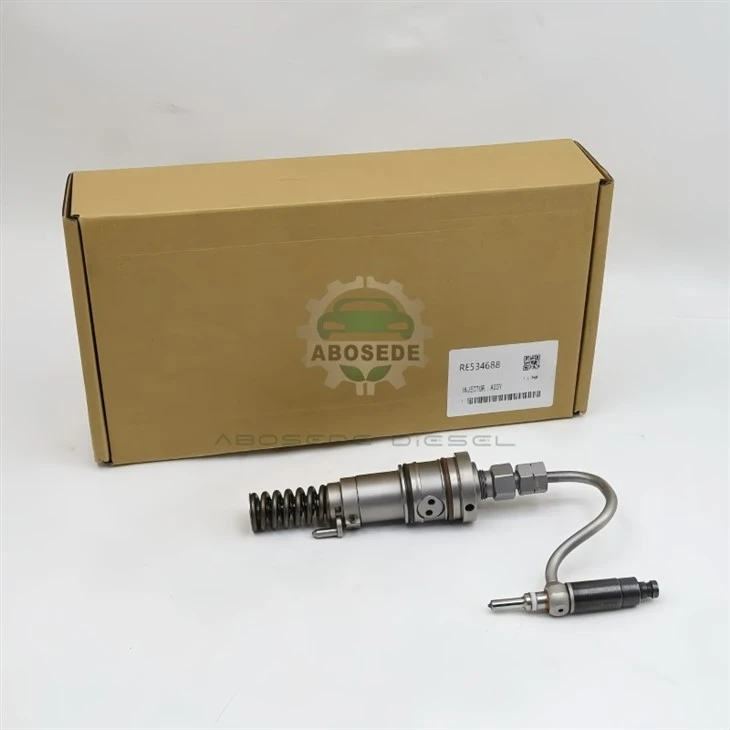

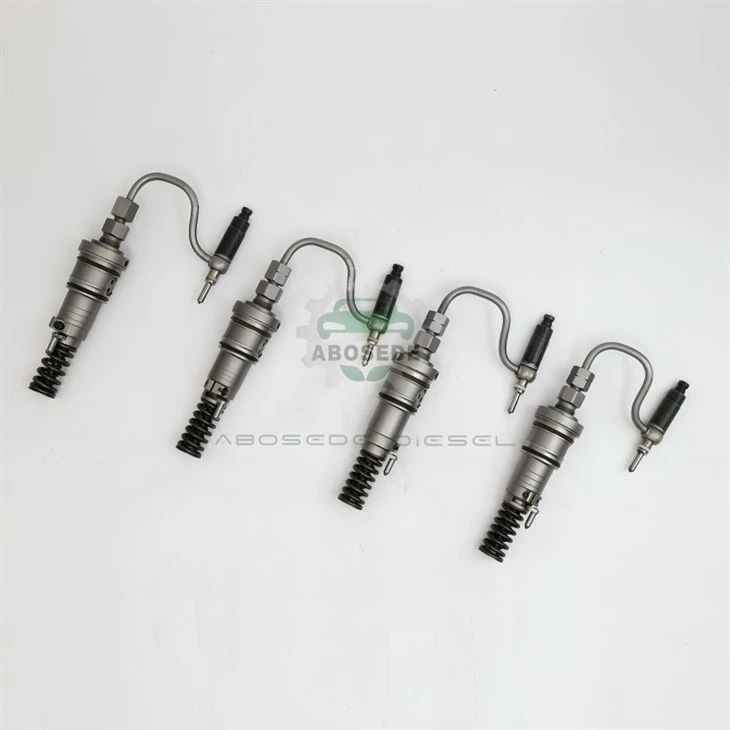

The John Deere RE534688 arrives as a factory-matched Integrated Fuel System (IFS) assembly purpose-built for the 4024T and 5030T diesel engine families, covering a wide range of compact utility tractors from the 4120 through the 5325 series. This module consolidates the high-pressure supply pump, delivery valves, and internal fuel galleries within a single sealed housing, representing a complete IFS solution rather than a standalone pump. For workshops and parts distributors dealing with Deere's 2.4L and 3.0L four- and five-cylinder power units, this assembly serves as the essential gateway for sustaining system pressures that frequently surpass 1,600 bar in common-rail architectures. Across the 4120, 4320, 4520, 4720, 5225, and 5325 tractor models, the RE534688 guarantees that injectors receive a precisely metered and pressurized fuel charge, directly shaping combustion efficiency, emissions conformity, and overall engine durability.

Dimensional and functional alignment with the 86mm bore and 105mm stroke configuration of the 4024T and 5030T blocks characterizes the RE534688, accommodating displacement variants of 2.44L and 3.05L respectively. A mechanically governed, enclosed fuel delivery system is featured in this IFS assembly, mounting directly to the cylinder block with gear centers governed by bores integrated into the block structure. External high-pressure fuel lines between the pump and the rail are eliminated through the RE534688's IFS housing design, which reduces potential leak paths and limits contamination ingress risks. An aluminum alloy main bearing shell design philosophy is mirrored in the assembly's internal rotating groups, with a grooved upper shell sustaining consistent lubrication under load. For the 5030T turbocharged variants, fuel volumes sufficient to support power outputs from 75 to 99 hp (56 to 74 kW) at 2,800 rpm must be delivered by the RE534688, with specific fuel delivery rates reaching approximately 46 mm³/stroke-making the module's internal clearances critical for injection timing precision.

Direct replacement capability extends across a broad portfolio of John Deere compact utility tractors, encompassing the 4120, 4320, 4520, and 4720 models, along with the larger-frame 5225 and 5325 tractors. Skid steer loaders within the CT300 series and select construction equipment utilizing the same engine core also benefit from this application. For the 4120 through 4720 series, which frequently feature the 4024T engine, consistent fuel metering under variable PTO loads is addressed by the RE534688, while on the 5225 and 5325, the pump supports the turbocharged 5030T platform's increased thermal and mechanical demands. Cross-referencing with service part numbers such as SE502238 is possible, and the assembly forms the centerpiece of contamination repair kits offered by remanufacturers like Grizzly (RE534688RX). Governor regulation parameters (7–10% for industrial applications) must be verified post-installation when servicing a 4520 or 4720 to avoid power loss or excessive smoke.

High-precision replacement of the RE534688 demands strict adherence to torque specifications and timing procedures, given the pump's hard-mounted attachment to the block and direct drive from the camshaft gear train. Prior to installation, the fuel system requires purging of contaminants; any metal debris from a failing pump necessitates tank removal, line flushing, and injector replacement-termed "full system remediation" to prevent immediate repeat failure. New O-rings and seals should accompany the RE534688 during installation, and technicians must verify that the auxiliary drive flange and starter alignment remain unobstructed. Priming to expel air is essential once fitted; dry starts that damage the pump's internal plunger and barrel assemblies can result from neglecting this step. The existing electromagnetic EGR and emissions control devices on the 4024T and 5030T are designed to work with this assembly, meaning a diagnostic cycle to verify rail pressure regulation and fuel return rates within the specified tolerance of 360±105 kPa should be run through the engine after replacement.

Positioned at the heart of the diesel common-rail system's high-pressure circuit, the RE534688 directly influences injector health and fuel economy. Intense shear stress is endured by the pump within the 4024T and 5030T engines, with fuel acting as the primary lubricant for its moving parts. Internal surfaces of the pump are eroded by contaminated fuel-often containing water or abrasive particles-leading to pressure loss and the generation of metallic particulates that cascade downstream into the fuel rail and injectors. Component-level wear on the cam ring and plungers typically necessitates full replacement with a remanufactured or new unit, as repairing the RE534688 is rarely viable once internal galling has occurred. Separate pump and rail purchases are eliminated by stocking RE534688 for workshop operators, reducing vehicle downtime and restoring the integrity of the fuel delivery system more reliably than attempting to overhaul a damaged unit. Regular filter changes remain the primary defense against premature pump failure in these agricultural applications.

Q1: How to confirm the RE534688 fits my 4720 tractor given multiple RE-prefix numbers in the catalog?
A: Verify your engine serial number and model designation. The RE534688 serves the 4024T (2.4L) and 5030T (3.0L) engines across 4120–5325 series, including the 4720. Check the existing pump's stamped IFS tag and consult the machine's technical manual for fuel system option code confirmation before ordering.

Q2: Remanufactured RE534688RX versus new OEM – which makes more financial sense?
A: Reman offers 30–40% cost savings with updated wear components and flow testing. New is advisable if catastrophic metal contamination occurred. For routine pump failure without systemic contamination, reman is typically the better value. Consider warranty needs and failure severity when deciding.

Q3: Must injectors be replaced alongside a new RE534688 pump?
A: Not mandatory, but strongly recommended if the old pump failed from contamination or internal breakdown. A worn pump often sends metal debris downstream. Perform an injector return flow test; uneven results indicate replacement as a matched set to avoid secondary failure.

Q4: What lifespan does a well-maintained RE534688 deliver in a 5225 tractor under normal field use?
A: Approximately 5,000 to 8,000 hours with regular filter changes (every 500 hours per Deere specs) and clean fuel. Water intrusion and dry operation are the main killers. On the 5030T platform, heavy continuous PTO work can accelerate wear if oil and fuel coolers underperform.

Q5: What symptoms point to RE534688 failure rather than a faulty rail pressure sensor?
A: Hard starting or long cranking from inadequate rail pressure, power loss under load without sensor codes, erratic hunting idle, and increased fuel return rates. A live-data scan comparing requested versus actual rail pressure provides definitive diagnosis.
