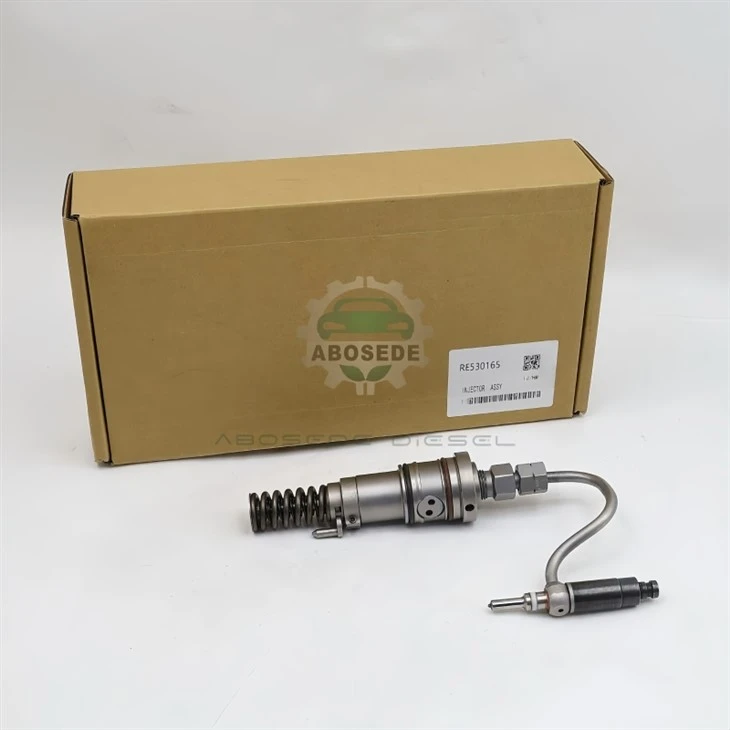

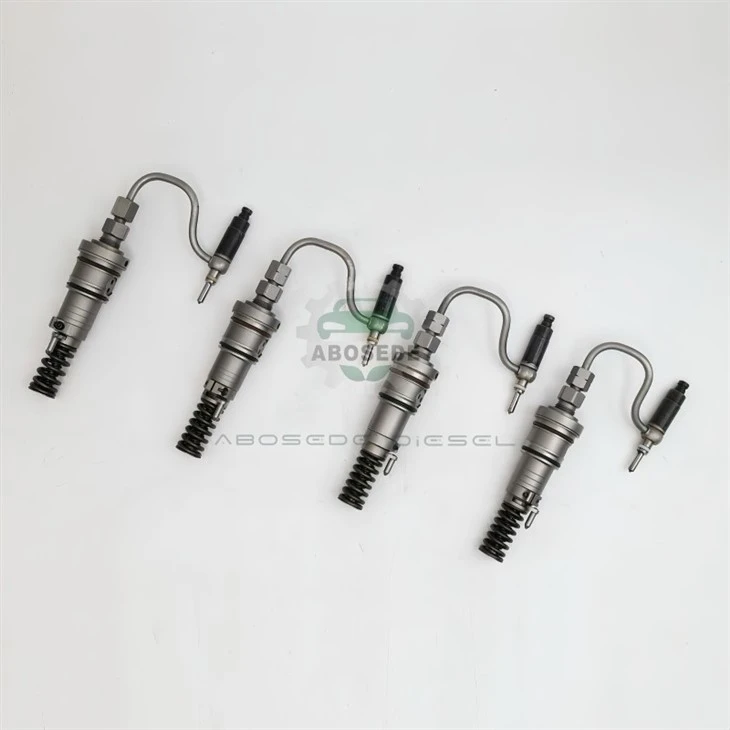

RE530165 Integrated Fuel System Assembly – Direct OEM ReplacementIntegrated Fuel System Assembly – Direct OEM Replacement

This RE530165 assembly is a direct-fit replacement for the OEM integrated fuel system used across a broad spectrum of John Deere utility tractors and compact equipment. Engineered to deliver precise fuel metering under variable load conditions, this unit ensures that your 4024T or 5030T powerplant maintains the injection timing and pressure required for efficient combustion and maximum uptime in the field.

The RE530165 is an integral component of the high-pressure fuel management system, designed specifically for the 2.4L and 3.0L engine platforms. While many aftermarket listings cross-reference this unit with remanufactured options like RE530823RX, this specific assembly is built to meet the rigorous demands of nonroad CI applications and EPA emission compliance standards. For the 4024T engine, the system operates efficiently within a peak power range of 61-65 BHP, while the 5030T variant delivers higher torque output suitable for heavier PTO-driven implements. Key specifications for this system align with the Denso HPCR architecture prevalent in John Deere's electronic fuel systems, requiring precise fuel rail pressure management to maintain optimal performance during sustained high-load operations. The assembly integrates seamlessly with the ECU, ensuring that injector calibration data is accurately transmitted for efficient combustion. Replacement units undergo rigorous flow-bench testing to guarantee that fuel delivery rates match OEM tolerances within ±2% variance.

This fuel system assembly provides extensive coverage across a wide cross-section of John Deere compact and utility tractors. Our verified interchange data confirms direct fitment for the 4120, 4320, 4520, 4720, 5225, and 5325 models. Additionally, it serves as a critical service component for equipment powered by the 4024T and 5030T diesel engines, including various skid steer loaders and compact track loaders. For workshops servicing agricultural or light industrial fleets, this part simplifies inventory management by consolidating multiple part numbers into a single stocking unit. Whether you are performing a warranty replacement on a 4520 Compact Tractor or conducting preventative driveline maintenance on a 5325 Utility Tractor, the RE530165 ensures that the engine receives the correct fuel volume and timing to handle variable loads, from front-end loader work to heavy tillage operations. The assembly is also backward-compatible with earlier electronic control revisions, provided the ECU software is updated to the latest level.

Proper installation procedure is critical to avoid air entrainment and subsequent injector damage. Due to the high-pressure nature of the Common Rail architecture, the entire fuel gallery must be purged of all air before the initial crank to prevent cavitation erosion on precision-machined surfaces. We recommend utilizing the electronic fuel system priming sequence as detailed in OEM service bulletin 4024T-ENG-015, which involves cycling the key without cranking to allow the lift pump to fill the housing. The high-pressure pump within this assembly must be pre-lubricated with clean diesel oil to ensure immediate bearing protection upon startup. Following mechanical installation, it is imperative to perform a diagnostic scan using a compatible service tool to clear any historical fault codes related to fuel pressure deviations and to verify that fuel rail pressure sensor readouts stabilize within the specified range of 1,600 to 1,800 bar under load. All associated high-pressure steel lines and low-pressure return hoses should be inspected for fatigue cracking or abrasion to ensure the integrity of the complete pressurized fuel circuit.

The RE530165 offers a cost-effective service solution compared to complete engine overhauls when addressing persistent fuel starvation, hot-start difficulty, or erratic governor response. In real-world field conditions, the extreme pressures generated by the HPCR system often lead to accelerated wear in the IFS assembly long before major engine components exhibit distress. By proactively replacing this unit, workshops can restore the engine's original thermal efficiency, drastically reduce excessive exhaust smoke opacity during acceleration, and ensure consistent PTO power delivery under sustained torque demands. For service managers evaluating long-term fleet viability, remanufactured options meeting OE-specification tolerances offer a balanced approach between acquisition cost and expected service interval. The use of the RE530165 directly mitigates the risk of secondary injector failure caused by inadequate rail pressure and erratic fuel volume. It also ensures that the internal pumping elements maintain consistent fuel delivery across the entire operating range, which is vital for meeting current emissions regulations and preserving the overall health of the diesel powertrain over extended duty cycles.

Q1: How can I definitively confirm that the RE530165 is the correct service part for my John Deere 4720 if the serial number prefix is different from the standard range?
A: While the 4720 model shares a common chassis architecture, the specific engine serial prefix and build date determine the exact fuel system variant used. The RE530165 is engineered to fit all 4024T and 5030T engine configurations. We recommend verifying the engine model via the identification plate affixed to the rocker arm cover. This part is extensively cross-referenced across the listed tractor models, making it a reliable selection for the majority of units produced after 2005.

Q2: Is this a purely mechanical drop-in replacement, or does the ECU require recalibration following installation?
A: Physical installation is straightforward and requires no mechanical modifications. However, because the Denso HPCR system stores adaptive fuel trim values based on the previous pump's wear characteristics, we strongly recommend performing an injector correction code reset and system adaptation cycle using a dealer-level diagnostic interface. While the engine will start and operate, resetting the learned parameters maximizes fuel economy and restores the manufacturer's specified power curve.

Q3: What are the most common field failure symptoms that signal the RE530165 requires immediate attention rather than system bleeding or filter replacement?
A: Critical indicators include a gradual decline in rail pressure resulting in engine derating under load, visible fuel weeping from the pump body mating faces, detectable fuel contamination in the engine oil sump (rising oil level), and persistent diagnostic trouble codes related to fuel volume that remain active even after replacing primary and secondary fuel filters. Given the sub-micron clearances within the pumping elements, internal wear is non-serviceable and demands complete unit replacement.

Q4: What service life can I reasonably expect from a replacement RE530165 compared to the original factory-installed component?
A: When installed with a new set of primary and secondary fuel filters and operated with fuel meeting ASTM D975 specification, the service interval should approximate the original equipment lifecycle of 5,000 to 8,000 operating hours. Contaminated fuel, water ingress, or use of incorrect lubrication oil viscosity are the leading contributors to premature pump failure. We advise implementing a strict scheduled fuel sampling program for fleets operating in dusty or high-humidity environments.

Q5: Does replacing a failing fuel system assembly with the RE530165 affect the emissions certification status of my equipment?
A: Yes, fuel system integrity is directly correlated to maintaining the prescribed air-fuel ratio and combustion efficiency. A degraded pump can cause over-fueling conditions resulting in high particulate emissions or under-fueling causing elevated NOx production, both of which violate EPA Tier 4 interim and final standards for off-road diesel engines. Replacing the unit with an assembly that meets or exceeds OEM flow specifications is the only compliant method to restore emissions performance.
