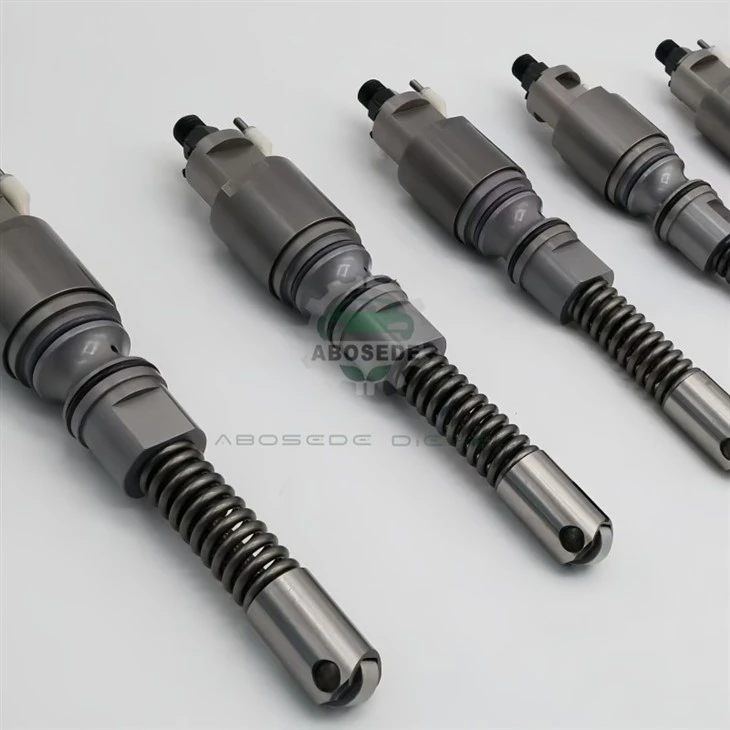

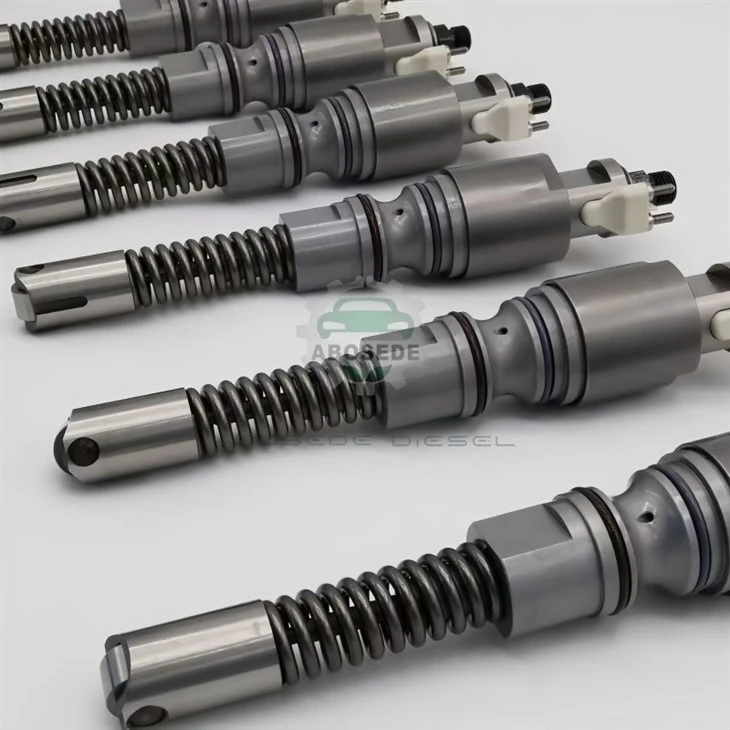

TPF1R085E2001 – John Deere Electronic Unit Pump (RE534960)

The TPF1R085E2001, cross-referenced under the OEM number RE534960, is a Delphi-manufactured Electronic Unit Pump (EUP) engineered for the latest generation of John Deere 4024 and 5030 series industrial engines. As a critical component of the high-pressure fuel injection system, this unit replaces the mechanical delivery valves found in older pump-line-nozzle configurations, providing precise electronic fuel metering to meet stringent Tier emission standards. Designed exclusively for common rail systems and heavy-duty off-highway applications, this pump ensures optimal atomization and combustion efficiency, translating directly to reduced particulate matter and improved fuel economy under extreme load cycles.

The TPF1R085E2001 operates as a high-pressure electronic unit pump with integral solenoid control, distinct from traditional inline or distributor pumps. It is a new aftermarket unit (not remanufactured) that directly replaces John Deere RE534960 and SE501960 service parts, as well as the Delphi TPF1R family of injectors. The unit utilizes a compact, single-plunger design driven by the engine camshaft, which pressurizes fuel to the precise levels required by the electronic control unit. It features specific calibration data that must be matched to the engine's ECU strategy to ensure the correct injection timing and duration for the 4024HF285, 4024HF295, and 5030HF285 engine variants. The physical dimensions and connector orientation are form-fit-function identical to the OEM specification, eliminating the need for wiring harness modifications during service. It is a solenoid-controlled unit, meaning it relies on a high-speed electromagnetic valve to precisely control the start and end of the injection event, allowing for pilot and post-injection strategies that smooth out engine operation and reduce noise .

This pump is specifically designed for a broad range of John Deere construction and agricultural equipment that utilizes the PowerTech 4024 and 5030 engine platforms. It is fully compatible with John Deere Skid Steer Loaders including the 318D, 319D, 320D, 323D, 326D, 328D, 329D, 332D, and 333D models. In the wheel loader category, it fits the 244J, 304J, and 324J units, while agricultural tractors such as the 4520, 4720, 5065M, and 5075M are also direct applications. This extensive interchangeability makes the RE534960 a critical stock-keeping unit for workshops servicing the compact utility vehicle segment, where downtime directly impacts operational revenue. The part directly supersedes earlier pump models, offering a drop-in replacement solution without the need for additional adapter plates or conversion kits .

Replacing the TPF1R085E2001 requires strict adherence to diesel fuel system hygiene and ECU reprogramming procedures. Before installation, the fuel rail and high-pressure lines must be purged of contamination to prevent premature wear of the pump plunger and injector nozzles. When installing the new unit, it is crucial to replace all copper sealing washers and O-rings supplied in the kit, as reused seals are a primary cause of high-pressure fuel leaks. Post-installation, the electronic control unit (ECU) must be updated with the fuel trim calibration data specific to this pump using diagnostic software (such as Service Advisor). This process, often referred to as "injector coding," allows the ECM to compensate for manufacturing tolerances, ensuring consistent fuel delivery across all cylinders. Technicians must also cycle the key to prime the system and check for active fault codes related to the fuel rail pressure sensor before returning the machine to service .

Investing in the RE534960 offers significant repair value compared to engine overhaul or replacement. In high-hour machines, a failing EUP often manifests as hard starting, excessive white smoke on cold starts, or a noticeable "miss" under load that fails to trigger generic engine codes. However, what often goes undiagnosed until it is too late is the erosion of the pump plunger caused by water ingress in the fuel. Unlike older mechanical pumps, a failing electronic unit pump in a common rail system can cause uncontrolled fuel rail pressure spikes, potentially damaging the injector tips or rail pressure sensor-a costly secondary repair. The total cost for replacing a diesel injector or EUP in the current U.S. market can range from $600 to over $1,500 per unit installed when factoring in diagnostic time and high-pressure line replacement . Using a high-quality aftermarket unit like this one, which is a fresh build rather than a core rebuild, mitigates the risk of repeat failures associated with "black death" or worn internal cam followers, ensuring the hydraulic and electronic integrity of the fuel system is restored.

Q1: Is the TPF1R085E2001 a direct OEM equivalent, or will I need to modify the ECU?
A: It is a direct physical and electronic equivalent to OEM RE534960. No mechanical modification is required. However, as with any new injector or pump installation, we strongly recommend performing the injector trim code programming via the engine diagnostic port to allow the ECU to compensate for the pump's individual tolerances. Failure to do so may result in slightly rough running or decreased fuel efficiency until the ECU adapts.

Q2: Does this fuel pump come complete with the necessary mounting hardware and seals?
A: Yes, the unit is supplied as a complete assembly. It includes the essential copper crush washers and O-rings required to seal the high-pressure fuel connections. We recommend confirming that the high-pressure fuel lines are in good condition, as they are often single-use components that may deform under torque.

Q3: How do I differentiate between a faulty EUP and a wiring issue in the John Deere harness?
A: The TPF1R family is solenoid-actuated, so wiring faults are common. Before replacing the pump, check for the "ECU No Response" or injector circuit fault codes. On the 4024 engine, inspect the connector for corrosion due to moisture ingress. If the electrical resistance is within spec and the mechanical "clatter" is absent, the pump is likely the culprit.

Q4: What is the expected service life of this aftermarket electronic unit pump?
A: When used with clean, water-free fuel and regular filter changes, this unit is engineered to match the longevity of the original equipment-typically exceeding 8,000 to 10,000 hours in agricultural service. The primary life-limiting factor is fuel contamination rather than electronic failure.

Q5: If I buy this unit, can I return my old RE534960 for a core charge?
A: This listing is for a new aftermarket unit and does not typically carry a core charge, unlike remanufactured options. The price is structured without a deposit, allowing you to dispose of the old core or keep it for inspection.

Q6: What are the tell-tale signs of a failing TPF1R085E2001 that I should look out for?
A: Technicians should look for a "knock" that is isolated to a single cylinder, erratic acceleration response, and a significant drop in rail pressure under load. Physically, after removal, you may notice scoring on the pump plunger or a loose connector terminal.
