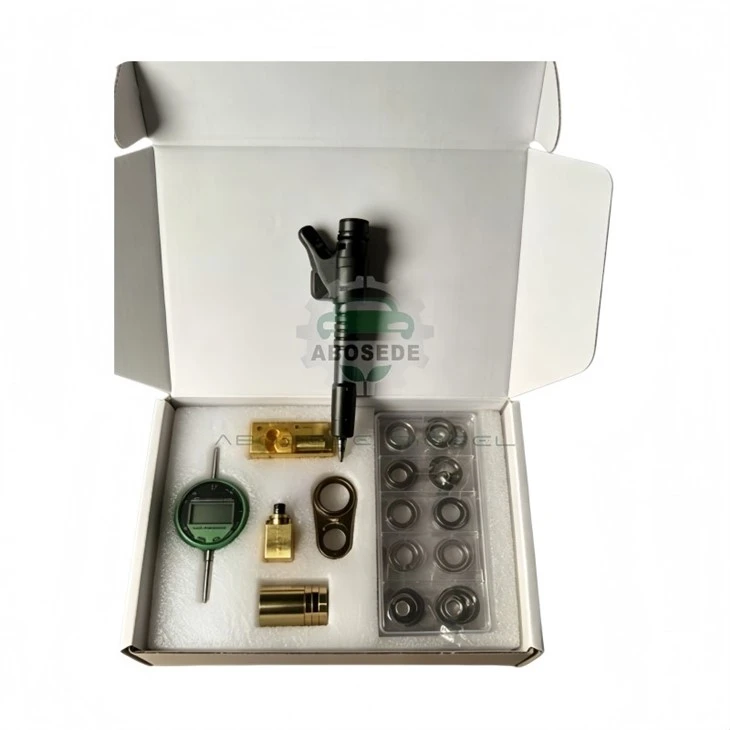

Denso 1211 Injector Service Master Kit – Complete Disassembly, Metrology, Electrical & Hydraulic Validation Suite For Common-Rail Systems

The Denso 1211 series injector (OEN 095000‑1211 and variants) is a pivotal actuator in many Asian‑market common‑rail systems, converting hydraulic pressure into precisely metered fuel sprays. Its performance hinges on four interlinked variables: needle lift, solenoid/piezo response, sealing integrity, and internal leakage. A deficiency in any one parameter distorts the entire injection event, often misdiagnosed as ECU or sensor faults. The Denso 1211 Service Master Kit consolidates 23 specialized tools and gauges into a single portable workstation, enabling a complete "teardown‑measure‑repair‑verify" cycle. Rather than offering generic implements, this kit is tailored to the 1211's unique geometry-from its compact solenoid housing to its specific nozzle nut torque (45 N·m) and control piston clearance (0.015–0.030 mm). It transforms any workshop bench into a certified repair center for Denso G2 and G3 family injectors.

The kit is organized not by physical zones but by procedural stages, mirroring the logical sequence of a professional rebuild:

Stage	Primary Function	Key Tools Included
1 – Disassembly	Controlled separation of nozzle, body, solenoid, and control valve	Spring‑loaded puller, collet extractor, heating sleeve (120°C)
2 – Dimensional Metrology	Critical clearance and stroke measurements	Digital needle lift indicator (0‑1.5 mm, 1 μm res.), bore air gauge, feeler set
3 – Electrical Characterization	Solenoid/coil integrity and piezo capacitance	LCR meter (0.1‑100Ω, ±0.2%), insulation tester (500V), PWM driver (50‑500Hz)
4 – Hydraulic Leakage & Pressure Test	Static and dynamic sealing validation	Manual pressurization pump (0‑200 MPa), graduated back‑leakage burette, burst‑proof chamber
5 – Reassembly & Calibration	Precision assembly with torque‑angle control	Torque‑angle wrench (2‑25 N·m), shim selection set, zero‑lift setting gauge

Each stage includes a laminated quick‑reference card with OEM specification limits for the 1211, ensuring traceability.

Through extensive failure analysis of Denso 1211 injectors, we have identified five measurements that reliably predict remaining service life:

Needle lift (static) – measured with the dial indicator under a defined preload. Acceptable range: 0.28–0.35 mm. A lift below 0.25 mm indicates seat erosion; above 0.38 mm suggests guide wear.

Solenoid armature clearance – checked with a non‑magnetic feeler. Nominal: 0.04–0.06 mm. Excessive clearance (>0.08 mm) delays opening response by 0.2 ms, causing injection lag.

Control piston stroke – measured via a depth micrometer. Factory spec: 0.50–0.55 mm. Deviation >0.03 mm alters the pressure‑time area under the injection curve.

Coil resistance at 20°C – for solenoid variants: 0.85–1.05 Ω (for 1211‑specific coils). A 10% shift indicates thermal degradation or partial short circuits.

Static back‑leakage – with the injector closed and pressurized to 60 MPa, collect return flow over 30 seconds. Pass: <8 mL/min; warning: 8‑15 mL/min; rebuild required: >15 mL/min.

The kit includes a dedicated data log sheet for these parameters, allowing comparison with previously recorded values for trend analysis.

The Denso 1211 injector is widely used in:

Hino (J‑series, E‑13C), Isuzu (6HK1, 6WG1), and UD Trucks (GH series) – predominantly in Asian heavy‑duty fleets.

Mitsubishi Fuso (6M60, 6R10) and Nissan Diesel (MD series) – common in construction and bus applications.

Agricultural machinery (Kubota, Yanmar large‑frame engines) and marine auxiliaries using Denso common‑rail systems.

This kit is compatible with both solenoid‑controlled (G2) and piezo‑actuated (G3) versions of the 1211 – the electrical test pod includes a switchable high‑voltage module for piezo capacitance measurement (up to 200 nF). An adapter set covers the various connector styles (round 2‑pin, flat 4‑pin, etc.).

A typical repair session using the Denso 1211 Service Master Kit follows this sequence:

Incoming inspection – record the injector serial and preliminary resistance/leakage values.

Disassembly – use the heating sleeve to soften Loctite on the nozzle nut; apply the puller with a calibrated force limit (≤1.0 kN) to avoid bending the valve piston.

Clean all parts in the supplied ultrasonic bath with a proprietary cleaning solution (removes varnish without attacking passivation layers).

Metrology – measure all five critical parameters and compare with the included wear‑limit chart.

Select replacement parts from the kit's exchange box (new needle, seat, shims, O‑rings, backup rings) – we offer a full range of Denso‑licensed consumables.

Reassembly – follow the torque‑angle sequence: tighten nozzle nut to 10 N·m then 30° additional, using the angle gauge.

Final validation – repeat leakage and electrical tests; record results on the certificate.

Each completed injector is returned with a test report that can be attached to the vehicle's service record, supporting warranty and quality audits.

Q1: Does the Denso 1211 Service Master Kit include spare parts such as needles and seats, or is it only tools?
The kit includes a starter set of consumables (10 nozzles, 20 shims, 5 sets of seals). For high‑volume shops, we offer separate bulk packs. The focus is on the precision tools, but we ensure you can begin repairs immediately.

Q2: How do I distinguish a worn control piston from a worn needle guide using the provided gauges?
The air‑gauge attachment measures the clearance between the control piston and its bore. If clearance exceeds 0.025 mm, replace the piston. The needle guide wear is identified by the lift measurement and the visual inspection mirror – the kit includes a 10× illuminated magnifier for inspecting the guide surface.

Q3: Can this kit test piezo‑actuated Denso 1211 injectors, and what additional steps are required?
Yes – the electrical pod has a piezo mode that applies a 0‑150V ramp and measures the leakage current and capacitance. However, piezo injectors require a different disassembly method (no solenoid, but a stack of piezo elements). The kit includes a separate piezo extraction tool and a special conductive grease; detailed instructions are provided in the supplement.

Q4: What is the recommended calibration interval for the measuring instruments within the kit?
The dial indicator and torque wrench should be sent for external calibration annually. The LCR meter includes an internal self‑test; we recommend checking it against the supplied reference resistor (1 Ω and 100 Ω) before each use.

Q5: Is the pressurization pump safe for use with biodiesel or high‑sulfur fuels?
The pump seals are Viton®‑coated, compatible with B20 and standard diesel. For high‑sulfur fuels (above 500 ppm), we recommend flushing the pump with clean diesel after each session to prevent sulfur corrosion.

Q6: The kit's software for data logging – is it compatible with macOS and Windows?
The data logger uses a simple USB‑serial interface; we supply a Windows‑based application and a browser‑based HTML version that works on macOS and Linux. All logs are saved as CSV for easy import into Excel or fleet management systems.
