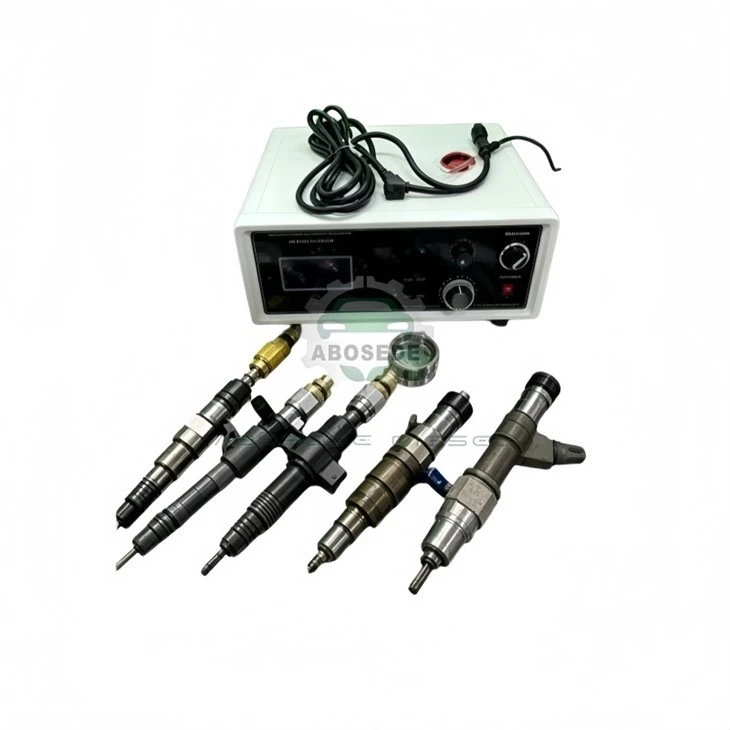

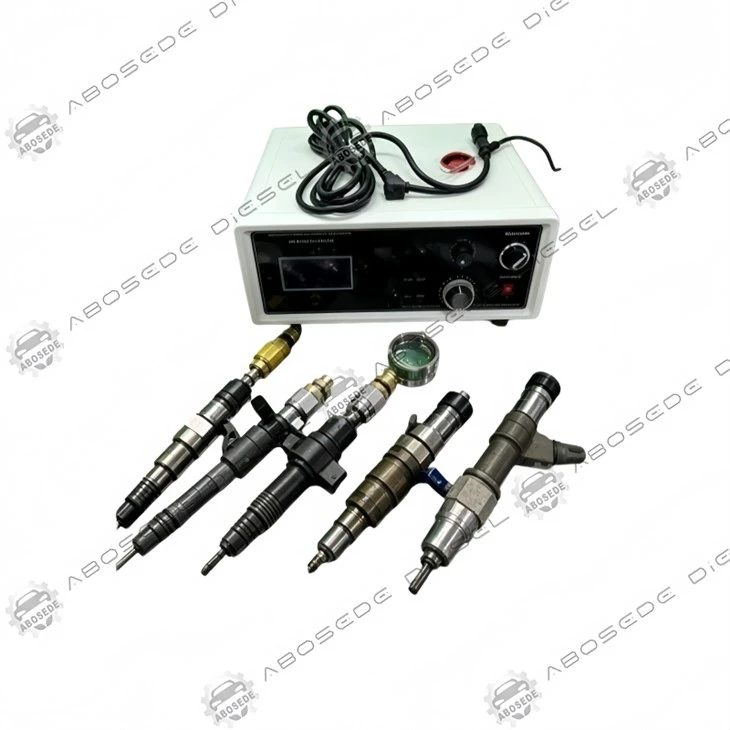

Common Rail Injector Dynamic Stroke Profiler – Multi‑Protocol Actuation & Lift Analyzer For Bosch 110/120 & Cummins ISG

The static measurement of injector armature travel-while useful for verifying mechanical clearances-does not replicate the injector's behaviour under actual operating conditions. In a running common rail engine, the injector solenoid is energised with a complex current waveform (peak‑and‑hold, up to 25 A) at frequencies varying from 10 Hz to over 500 Hz, and the armature's dynamic stroke is influenced by hydraulic pressure, magnetic saturation, and temperature. Our Dynamic Stroke Profiler bridges this gap by combining a programmable PWM driver with a high‑speed linear displacement sensor (sampling at 2 kHz), capturing the armature's lift profile in real time-from the initial magnetic pull to the full lift and the closing overshoot. This is not a static gauge; it is a dynamic motion analyser that reveals sticking, delayed response, and magnetic degradation that static readings simply cannot detect.

The profiler generates a fully programmable excitation current, with adjustable peak current (0‑25 A), hold current (0‑10 A), and slope rate (0.1‑5 A/ms) to match any injector type. For Bosch 110 and 120 injectors, the standard setting is 18 A peak, 6 A hold, with a 0.5 ms initial slope. For Cummins ISG injectors (XPI system), which require a higher peak current (22 A) and a longer hold duration, the profiler offers a dedicated memory slot with pre‑loaded parameters. The waveform is generated by a high‑frequency MOSFET bridge (switching at 50 kHz) that produces a near‑ideal current profile with < 2 % ripple, ensuring accurate magnetic force reproduction. A real‑time current monitor display shows the actual waveform, allowing the technician to verify that the driver is delivering the commanded current.

The measurement head contains a linear variable differential transformer (LVDT) with a spring‑loaded probe that contacts the armature surface. The LVDT outputs a voltage proportional to displacement, sampled at 2 kHz with 16‑bit resolution, providing a lift profile with 0.001‑mm accuracy and 0.5‑ms time resolution. The profiler plots the lift versus time on an integrated 4.3‑inch colour display, showing the armature's opening delay, full lift duration, and closing overshoot. A cursor function allows the technician to measure specific points on the curve-for example, the time from current onset to 10 % lift (defined as the opening delay) and the peak lift deviation from the static value. The profiler stores up to 50 profiles in internal memory, enabling before‑and‑after comparisons.

This profiler is calibrated for three distinct injector platforms:

Bosch 110 (CRIN‑1): Standard settings – 18 A peak, 6 A hold, 200 Hz; expected dynamic lift: 0.10‑0.14 mm; opening delay: 0.2‑0.3 ms

Bosch 120 (CRIN‑2/3/4): Standard settings – 20 A peak, 6.5 A hold, 250 Hz; expected dynamic lift: 0.12‑0.18 mm; opening delay: 0.15‑0.25 ms

Cummins ISG (XPI): Standard settings – 22 A peak, 8 A hold, 300 Hz; expected dynamic lift: 0.15‑0.22 mm; opening delay: 0.25‑0.35 ms

The profiler includes an auto‑detect function that identifies the injector type by measuring the coil resistance and inductance, then loads the appropriate waveform-a feature that reduces setup errors when working on mixed fleets.

Three critical parameters are derived from the dynamic profile:

Opening delay – Time from current onset to 10 % lift. An increase of > 20 % from baseline indicates weak magnetic force (possibly due to residual air gap drift) or mechanical stiction.

Peak lift – The maximum armature displacement. A decrease of > 8 % from nominal suggests armature guide wear or hydraulic damping increase.

Closing overshoot – The lift peak that occurs after current cut‑off due to armature inertia. An overshoot > 15 % of peak lift indicates excessive armature mass imbalance or weak return spring.

The profiler automatically flags any parameter outside the pre‑set tolerance windows, providing a PASS/WARN/FAIL indication. A detailed report can be printed or exported via USB‑C.

Q1: Why can't I just use a static dial gauge to measure the dynamic stroke?
A: Static gauges measure the armature position only when it is at rest-they cannot capture the dynamic motion, which is influenced by current rise time, magnetic saturation, and hydraulic back pressure. Our profiler measures the actual armature movement under real operating conditions, revealing issues like sticking or slow response that static readings miss.

Q2: The profiler gives a "WARN" for opening delay on my Bosch 120 injector-what should I check?
A: A prolonged opening delay is often caused by a worn armature guide or a residual air gap that is too large. First, verify the static air gap using our dedicated gauge. If the gap is correct, inspect the armature guide for wear-an increase in clearance allows oil to dampen the movement, slowing the response.

Q3: Can I use this profiler on a Delphi injector?
A: The profiler can be used on Delphi injectors, but the waveform parameters (peak current, hold current, frequency) must be manually entered, as the auto‑detect function currently supports only Bosch and Cummins injectors. We offer a custom profile creation feature that allows you to save Delphi settings for future use.

Q4: How does the profiler compensate for temperature variations?
A: The measurement head includes a built‑in thermistor that monitors the ambient temperature. The LVDT sensor is temperature‑compensated (0.001 mm per 10 °C), and the current driver adjusts the hold current to maintain constant magnetic force as the coil resistance changes with temperature. Always allow the injector to equilibrate to room temperature before testing.

Q5: The closing overshoot on my ISG injector is higher than expected-is that a problem?
A: An overshoot above 15 % of peak lift typically indicates a weak return spring or excessive armature mass. While it may not cause immediate failure, it reduces the injector's ability to close quickly at high RPM, leading to inconsistent pilot injection. We recommend replacing the return spring and re‑testing.

Q6: Can I use this profiler to test injectors that are still installed in the engine?
A: The profiler is designed for bench testing only. In‑vehicle testing is not recommended, as the measurement head requires direct access to the armature and the injector must be isolated from the fuel system. Attempting to test in‑vehicle can also expose the sensor to high pressure and fuel, which can damage it.
