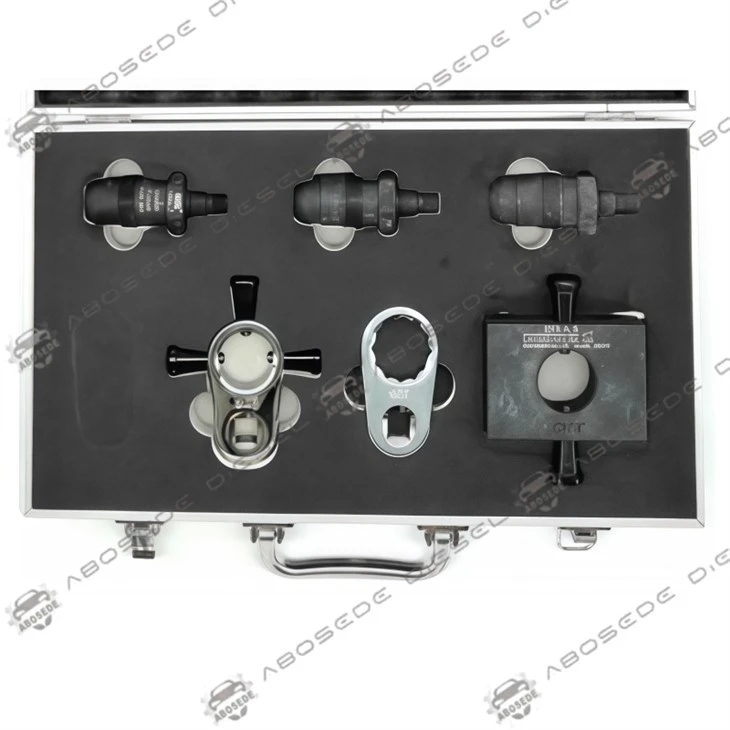

CAT HEUI 3126/C7/C9 Master Service Tooling Suite

Designed for the rigorous demands of modern diesel service facilities, this comprehensive tooling suite is engineered specifically for the Hydraulically actuated Electronically controlled Unit Injector (HEUI) systems found in Caterpillar 3126, C7, and C9 powerplants. We bridge the gap between generic repair equipment and the specialized precision required to service these complex, high-pressure fuel systems, ensuring workshops can deliver factory-standard rebuilds and in-vehicle repairs without compromising on efficiency or safety.

The core of this suite adheres strictly to Caterpillar's original equipment tolerances. The kit includes specialized adapters such as the BR0004-27 for the C7 and BR0004-29 for the C9, ensuring a seamless interface during disassembly . Critical fastening elements, including the Torx wrench set (sizes T10, T20, and T25) , are rated for the specific clamping forces required to open solenoid bobbins without damaging the delicate wiring harness connections . For depth-critical procedures, the tooling incorporates driver stops that match the precise stroke length of the intensifier piston, preventing internal bore damage that often occurs with universal drivers. This precision is crucial when dealing with the plunger and barrel assembly, where even a minor misalignment can lead to catastrophic injection failure.

This suite is configured to address the distinct mechanical differences across multiple engine generations. It provides full support for the CAT 3126B (found in 1996-2006 on-highway trucks and buses) , the electronic upgrade path of the C7 (KAL, WAX, SAP SN prefixes) , and the heavy-duty C9 utilized in agricultural and construction equipment . Unlike single-function tools, our platform encompasses the specific removal and installation procedures for the injector sleeve-a common failure point-accommodating the unique 1.0mm shorter sleeve design used in HEUI applications versus older MUI variants . This ensures that a shop handling a fleet of mixed Caterpillar assets needs only one dedicated tool set for these mid-range engines, reducing the need for multiple expensive specialty purchases.

A primary operational bottleneck in HEUI servicing is the removal of the cylinder head to access fuel delivery components. This tooling suite is engineered to perform in-vehicle injector and cup extraction, circumventing the need for a full top-end teardown and saving upwards of four hours of labor per cylinder . During installation, the kit includes specific cones and O-ring inserters (such as the AAZ034-24-2 anti-magnetic pliers) to prevent rolling or cutting of the high-pressure seals, which are the leading cause of premature injector failure . The methodology incorporates a specialized clamping fixture (125-2583) that simulates the hold-down clamp pressure, allowing technicians to correctly seat the jumper tube and torque the manifold end to 40±5 N·m before finalizing the injector hold-down bolts to 36 N·m, ensuring zero-leak connections .

Parameter	Specification / Value	Workshop Benefit
Test Bench Pressure	High Pressure: 0-500 bar / Low Pressure: 0-6 bar	Simulates real-world actuation pressure to identify internal leakage.
Injection Actuation	Frequency: 50~2000 rpm / Pulse Width: 0.1~200 ms	Allows for dynamic analysis of solenoid and poppet valve response.
Fluid Temperature	Fuel & Lube Oil regulated at 40°C	Standardized testing conditions compliant with ISO/CAT protocols.
Oil Supply Pressure	Digital Display up to 25 Mpa	Accurate monitoring of the actuation oil pressure required to drive the intensifier .
Flow Measurement	Graduated glass tubes (150ml) & Digital readouts	Provides precise measurement of fuel delivery and return rates per injector.

The HEUI system relies on engine oil pressurized to extreme levels to multiply the force applied to the fuel plunger. Our tooling directly addresses the primary failure mode of this system: the degradation of the upper and lower poppet seats. Field disassembly often misaligns the adapter screws securing the poppet sleeve, resulting in a catastrophic "upper seat leak" that is unrepairable in the field and renders the injector scrap . This suite provides the specific fixtures required to maintain the robotic assembly alignment during servicing, preventing the common tendency to disassemble components not intended for manual adjustment. Furthermore, by utilizing the cup installer to set the nozzle cup to the correct depth, technicians prevent combustion gas ingress and fuel dilution of the engine oil, extending the service life of both the injector and the high-pressure oil pump (HPOP).

Q1: How to torque the high-pressure jumper tube without special training?
A: The kit includes a torque wrench adapter and 125-2583 clamping fixture that lock the tube in place. This allows accurate 36 N·m on the hold-down clamp and 40±5 N·m on the manifold end, ensuring a perfect metal-to-metal seal.

Q2: Same tools for 3126B mechanical and C7 electronic engine sleeves?
A: No. HEUI sleeves are 1.0 mm shorter than MUI sleeves. Using an MUI installer on a C7/HEUI will crush the injector. Our kit is specifically designed for HEUI sleeve dimensions.

Q3: How to avoid internal injector damage during removal?
A: The main risk is "upper seat leak" from prying or loosening Torx screws, which destroys poppet valve alignment. Our pullers apply force directly to the injector body, bypassing the delicate adapter and solenoid area.

Q4: Tool lifespan under heavy daily fleet use?
A: Made from hardened steel, these tools withstand thousands of rebuild cycles. Anti-magnetic pliers safely handle check balls without attracting debris. Annual torque wrench re-calibration is recommended.

Q5: Test bench required after assembly, or in-engine testing sufficient?
A: In-engine testing misses low/mid-range leaks that the ECM compensates for. Our tooling pairs with a HEUI test bench ( 0-500 bar , pulse width simulation) to verify flow rates and prevent "comebacks."
