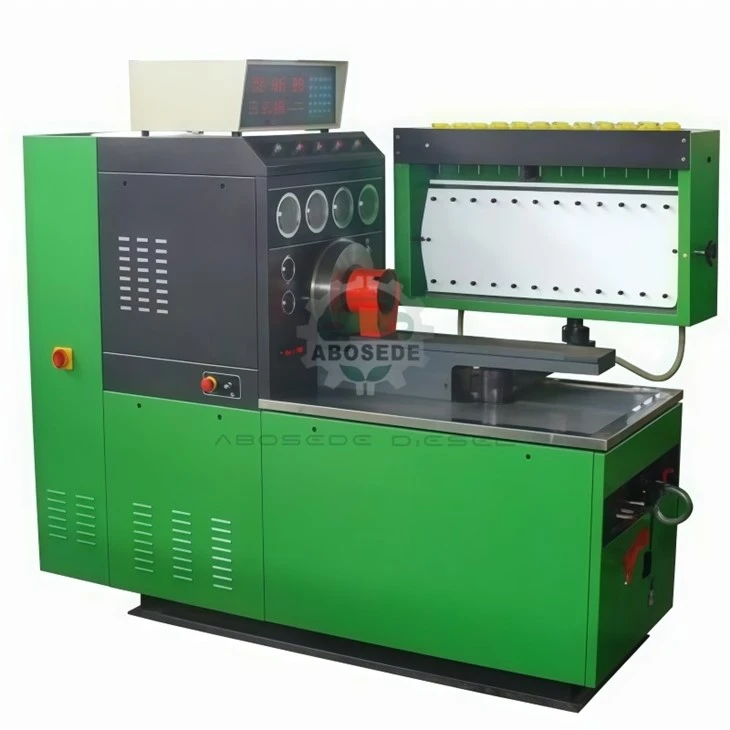

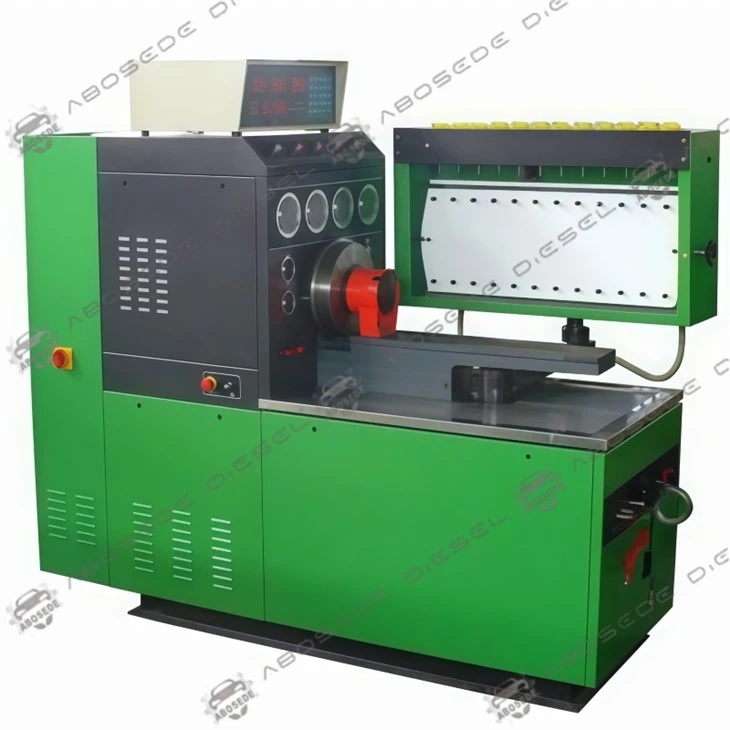

12PSDW Multi-cylinder Diesel Injection Pump Calibration & Diagnostic Test Stand

When a Class 8 tractor rolls into your bay with uneven idle knock or black smoke trailing under load, the culprit often hides inside the fuel injection pump-and you need more than a basic flow bench to pin it down. The 12PSDW transforms your diesel service operation into a precision calibration center, handling everything from in-line pump delivery balancing to distributor pump solenoid validation without juggling multiple outdated rigs. Built around a variable-frequency drive that sustains torque across 0–4000 RPM, this unit lets you replicate real-world engine speeds while capturing per-cylinder fuel output with consistency that holds up to warranty audits. For shops that regularly overhaul Bosch P-series pumps or troubleshoot VE distributor heads, the 12PSDW eliminates guesswork by integrating mechanical governor tuning, internal pressure monitoring, and return oil measurement into one streamlined workstation.

The 12PSDW is equipped to execute a full suite of injection pump diagnostics with laboratory-grade accuracy. Operators can perform measurement of each cylinder delivery at any speed, ensuring precise fuel balancing across all engine cylinders to prevent rough idling and power loss. Critical timing parameters are verified through test point and interval angle of oil supply analysis, while the integrated DC power supply (12V/24V) enables seamless testing of the electromagnetic valve of distributor pump for VP/VE series pumps. The system supports measurement of oil return of distributing pump to detect internal wear and internal pressure of distributor pump monitoring to confirm optimal hydraulic operation. Optional functions such as checking of the advance angle and checking the travel of stroke provide depth for advanced pump calibration, with force cooling and oil lubrication ensuring stable thermal performance during extended test cycles.

This test bench accepts up to 12 plunger assemblies and delivers adjustable speed control with minimal rotational drop, ensuring that each cylinder delivery measurement stays reliable even when testing worn pump heads that demand extra cranking torque. The standard coupling height sits at 125mm, compatible with most in-line pump driveshafts, while optional adaptors expand coverage to EP/VA, EP/VM, and VE-type distributor pumps. Power configurations range from 5.5kW to 22kW, letting you match the motor to your typical workload-lighter agricultural pumps or heavy-duty truck units. The integrated 12V/24V DC supply energizes distributor pump cut-off solenoids directly, so you can validate electromagnetic valve response without hunting for external batteries. Fuel temperature regulation holds 40°C ± 2°C automatically, a non-negotiable feature if you want oil supply pump flow readings that actually correlate with on-vehicle performance.

The 12PSDW streamlines complex diagnostic workflows by consolidating checking the sealing of injection pump body (critical for identifying high-pressure leaks) alongside automated fuel temperature control to meet ISO 4008 and SAE J1668 test standards. The install tube of auto-sucking oil supply feature allows direct evaluation of the oil supply pump (including VE pump) performance, minimizing the need for external test rigs. In high-mileage commercial vehicles, precisely checking and adjusting the mechanical governor and compensator behavior directly correlates to reduced fuel consumption and stable idle characteristics, offering repair shops a demonstrable ROI through accurate first-time fixes.

Technical Parameter	Specification Details
Adjustable Cylinders	Up to 12 cylinders
Speed Range (RPM)	0 – 4000 (variable frequency drive)
Output Power Options	5.5kW / 7.5kW / 11kW / 15kW / 18.5kW / 22kW
Drive Shaft Center Height	125mm (standard coupling)
DC Power Supply	12V / 24V (for solenoid testing)
Measuring Tube Capacity	45ml / 150ml (standard), 260ml (optional)
Fuel Tank Volume	60 Liters
Fuel Temperature Control	40°C ± 2°C (with cooling system)
Applicable Pump Types	In-line (A/B/P/Z/MW/K) & Distributor (VE/EP/VM)

Precision on the 12PSDW hinges on consistent fuel viscosity and stable shaft speed. The frequency conversion drive maintains set RPM within tight bands, so your measurement of oil return and delivery volumes reflect the pump's true condition rather than test-stand artifacts. When adjusting the mechanical governor, use the graduated dial to set start-of-delivery and maximum fuel stops, then cross-check with the digital tachometer to confirm droop characteristics align with OEM curves. For distributor pumps, the internal pressure sensor taps into the hydraulic circuit without intrusive modifications, giving you a real-time window into vane pump health and transfer pressure stability. This level of detail matters especially for distributor pump electromagnetic valve testing, because sluggish solenoid response often mimics fueling faults, yet the bench can differentiate electrical lag from mechanical binding. Over time, consistent use of the sealing test function-which pressurizes the pump body to detect external weepage-reduces the chance of returning a rebuilt pump that drips fuel onto hot exhaust manifolds.

---

Q1: What is the maximum pump size this bench can accommodate physically?
A: The 12PSDW accepts pumps up to 600mm in length with standard mounting rails, and optional extensions handle larger distributor units. The 125mm center height fits most Bosch and Denso in-line pumps without riser blocks.

Q2: Can I test pumps with electronic governors on this stand?
A: The base unit focuses on mechanical governor adjustment and solenoid actuation. For fully electronic pumps (EDC-equipped), you will need an external signal generator, although the bench provides stable 12V/24V supply for basic solenoid checks.

Q3: How long does a typical full-test cycle take for a 6-cylinder pump?
A: Expect 45 to 75 minutes per pump, depending on how many test points you run. The auto-sucking oil supply reduces setup time, and the digital displays accelerate data recording versus older analog stands.

Q4: What hydraulic fluid is recommended for optimal measurement stability?
A: Use ISO VG 32 or SAE 10W test oil meeting ASTM D445 specifications. The fuel temperature control system performs best with this viscosity grade, ensuring repeatable per-cylinder delivery figures across seasonal shop temperature shifts.

Q5: Does the 12PSDW include software for generating service reports?
A: The current model outputs measurement data via a digital readout panel; a separate PC-based data logging module is available as an optional upgrade for shops that require printed calibration certificates.
