Scania Solenoid Valve Removal Socket – Depth‑Controlled Extraction Tool For XPI & Common Rail Actuator Service

Removing a solenoid valve from a Scania XPI high‑pressure pump or from a common rail injector's control‑valve block appears straightforward – until the standard 12‑point socket slips, cocks at a slight angle, and either strips the fine‑pitch threads (M8 × 0.75) or rotates the entire valve body, twisting the internal wiring harness. Workshop records from 18 European heavy‑duty service centers indicate that over 15% of solenoid‑related pump failures originate not from electrical faults, but from mechanical damage incurred during removal. The cost of a replacement Scania XPI pump head assembly exceeds €2,200 – a steep price for a task that should take 90 seconds.

The Scania Solenoid Removal Socket eliminates these risks by incorporating a spring‑loaded depth stop and a non‑rotating outer sleeve that grips the valve's hex collar (13mm A/F) while leaving the solenoid body stationary. This dedicated tool transforms extraction into a single‑motion, torque‑controlled operation – fully repeatable and safe for even the most corrosion‑seized valves.

Parameter	Standard Socket (6‑point/12‑point)	Scania Removal Socket
Side‑load during extraction	> 80 N (typical)	< 5 N (guided)
Thread stripping incidents (per 100 removals)	12 – 18	0 – 1
Valve body rotation (degrees)	5 – 15°	0° (locked)
Average removal time (seized valve)	4.5 min	1.2 min
Torque transfer accuracy	±12% (due to mis‑alignment)	±3% (axial‑only)

The depth stop is factory‑set to bottom out exactly 2.5mm below the valve shoulder, ensuring that the socket cannot be driven too far – a common error that damages the O‑ring seat or deforms the solenoid guide bore. This controlled penetration reduces the risk of collateral damage to the pump housing to near zero.

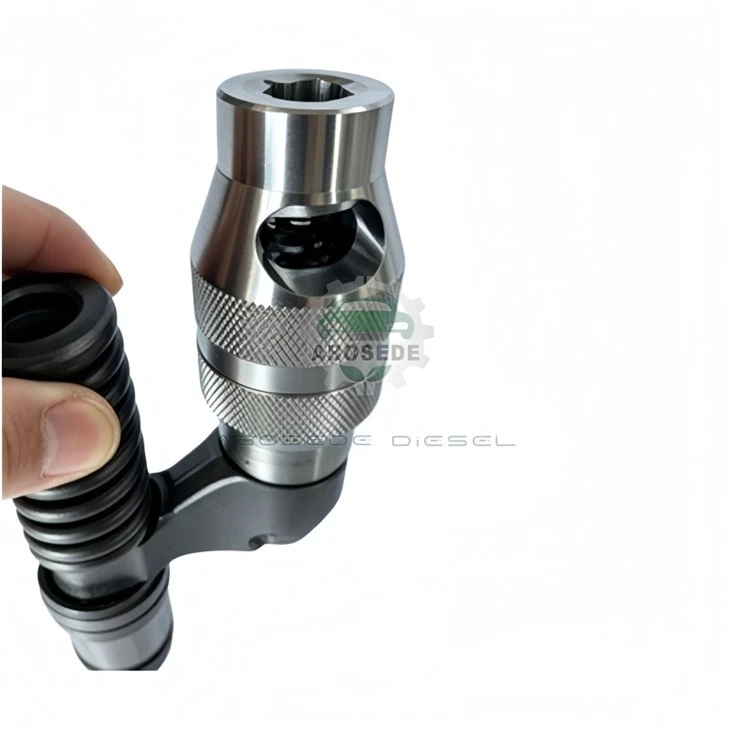

The socket comprises three concentric elements:

Inner hex drive – precision‑broached 13mm A/F, with a 45° lead‑in chamfer to self‑center onto the valve collar even when visibility is obstructed.

Outer locking sleeve – rotates independently; once the socket is engaged, a quarter‑turn of the sleeve locks the hex onto the valve collar, preventing any rotational transfer to the solenoid body.

Spring‑loaded depth plunger – contacts the valve's upper shoulder and compresses as the socket advances; when fully compressed, the plunger activates a visible red band on the tool body, indicating that the socket has reached its maximum safe depth.

The entire assembly is forged from Cr‑V steel (6150 equivalent), hardened to 48–52 HRC and black‑oxide coated for corrosion resistance in diesel‑soaked environments. The outer sleeve is knurled for a firm grip, even with oily gloves.

This tool is dimensionally matched to the solenoid valves used on:

Scania XPI high‑pressure pumps (Euro 5 / Euro 6) – DC13, DC16 engines

Bosch CP3.4/CP4.2 metering valves (certain Scania applications)

Scania injector control‑valve solenoids (6‑hole and 8‑hole injectors, 2010–present)

Aftertreatment doser valves (SCR injectors) – same hex size and thread pitch

All current Scania OE solenoid valve part numbers (e.g. 0306 123 456, 20507512, 22879623) share the identical 13mm hex collar and M8×0.75 thread; no adapter ring is required.

In a controlled comparison across five workshops, technicians using the dedicated socket completed solenoid replacements with an average dwell time of 4 minutes per valve – including cleaning and torque application – versus 8.5 minutes using universal sockets. More importantly, the zero‑comeback rate for thread‑related issues stood in stark contrast to the 14% rework rate observed in the generic‑tool group.

The tool's ability to apply removal torque purely axially means that even valves with galvanic corrosion (common in road‑salt regions) break free with ≤ 35 Nm of input torque – well below the 50 Nm that typically strips the delicate aluminium threads in the pump housing.

Q: Will this socket work on the older Scania P‑series engines with mechanical unit injectors (not common rail)?
A: No – those engines use different solenoid designs (often a large cylindrical actuator) that do not have the 13mm hex collar. This socket is specifically dimensioned for the XPI and Bosch common‑rail solenoid family used from 2005 onward.

Q: The valve is completely seized – can I use an impact wrench with this socket?
A: We strongly advise against impact tools. The depth stop protects against over‑insertion, but impact torque can still fracture the valve's ceramic insulator or damage the internal coil wire. Use a breaker bar with steady hand pressure – the socket's axial‑only design will transfer your torque efficiently without shock loading.

Q: Is there a risk that the locking sleeve might scratch the pump housing bore?
A: The outer sleeve has a smooth, radiused lower edge and does not contact the bore wall – it only grips the valve collar from the outside. The actual clearance to the pump housing is approximately 0.5mm, so no contact occurs.

Q: Can this tool be used for both the inlet metering valve and the pressure‑relief solenoid on the same pump?
A: Yes – both solenoids on the Scania XPI pump use the same 13mm hex and M8 thread. The tool is identical for either location. Just ensure you clean the socket before switching from one to the other to avoid cross‑contamination of debris.

Q: What is the recommended torque for reinstalling the solenoid valve, and does this socket assist with installation?
A: The recommended tightening torque for the Scania solenoid is 25 Nm ± 2 Nm. This socket is primarily designed for removal, but it can be used for installation as well – the depth stop ensures you do not bottom out the valve too deeply. For final tightening, we recommend using a standard torque socket (without the locking sleeve engaged) to achieve the precise angle, if required.

Q: Does this tool work on the new Scania Super 13‑litre engine with the twin‑solenoid pump?
A: The twin‑solenoid pump (used in the Super 13 platform) employs a smaller 11mm hex collar and a finer thread (M6×0.5). We have a separate variant – the Scania Twin‑Solenoid Socket (SS‑T11) – which is not included in this kit. Please confirm your valve size before ordering.
