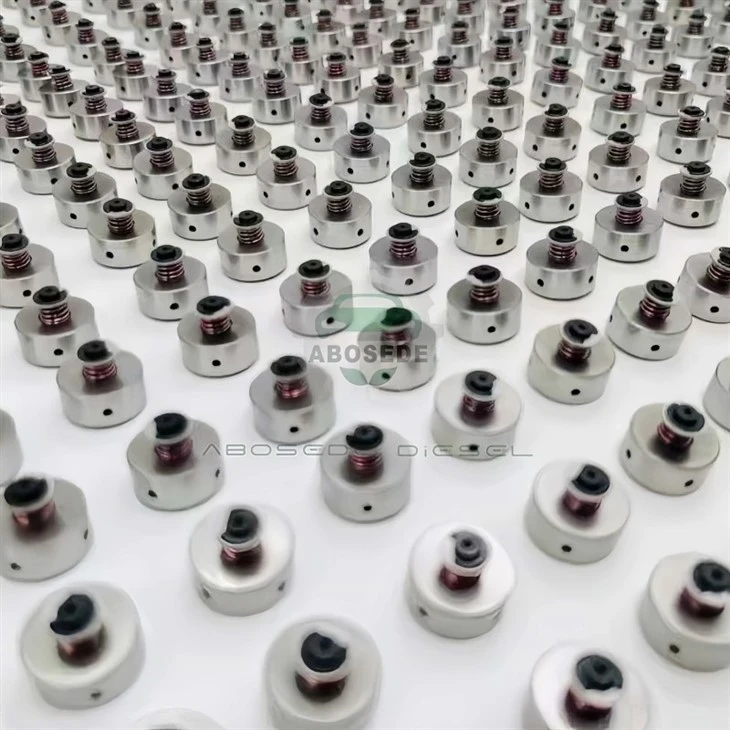

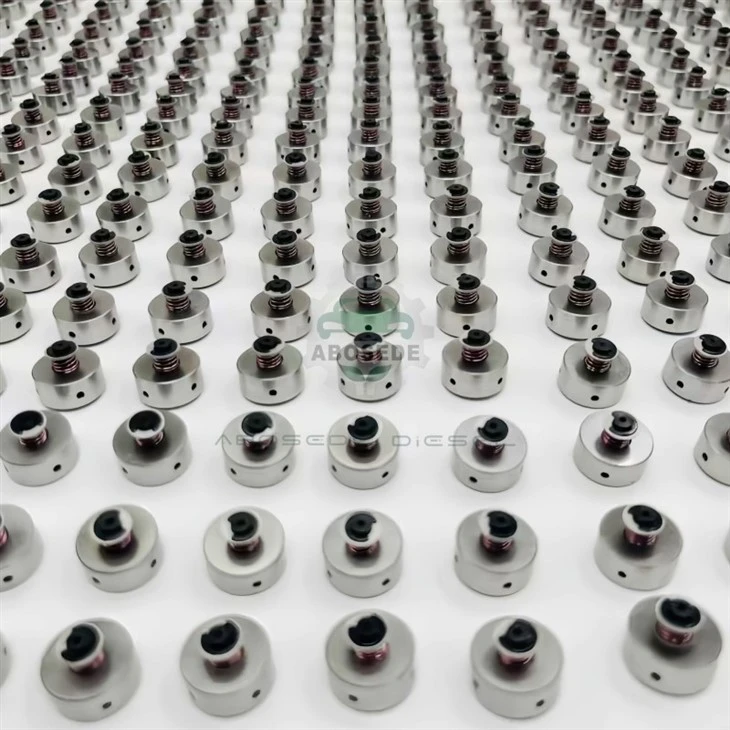

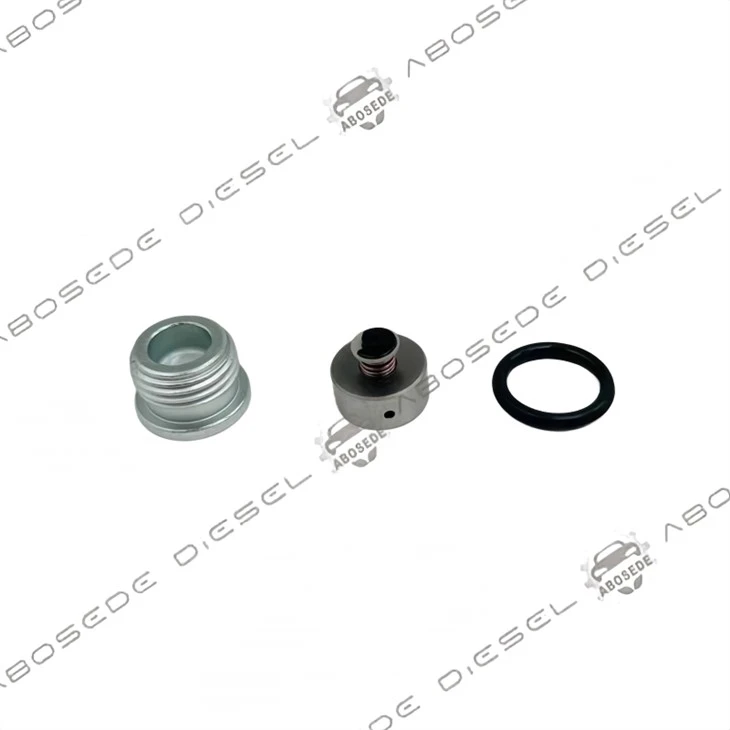

294009-0940 HP3 HP4 Pump Delivery Valve – Denso Common Rail Outlet Valve

For a workshop manager watching diagnostic screens flicker with rail pressure deviation codes, or a wholesale distributor fielding returns on pumps that failed to hold prime after rebuild, the 294009-0940 delivery valve frequently sits at the centre of both headaches. When ageing Denso HP3 and HP4 supply pumps begin bleeding pressure back through the outlet check, the resulting extended crank times and unstable idle directly eat into bay productivity and customer trust. This OEM-spec check valve addresses that failure mode at its mechanical root, eliminating the guesswork of shotgun regulator replacements and giving rebuilders a definitive path to restoring pump output without swapping the entire head assembly.

The degradation of this outlet valve rarely announces itself through catastrophic breakdown. Instead, technicians encounter progressively longer starter engagement during hot restarts, fluctuating rail pressure readings that defy sensor diagnostics, and a perceptible flatness during acceleration from standstill. These symptoms translate directly into diagnostic labour hours that often exceed the component's cost, particularly when misinterpreted as injector or ECU issues. Replacing the check element within the HP3/HP4 pump head cuts through that diagnostic fog, returning rail pressure build rates to factory curves and allowing the fuel pressure control loop to function without compensating for internal bypass flow-a distinction that separates profitable repairs from chronic comeback vehicles.

Carrying the 294009-0940 makes commercial sense for suppliers whose customers maintain rotating equipment from Hino, Isuzu, Nissan Diesel, and selected Cummins ISBe installations. These pump architectures appear across agricultural harvesters, mid-sized delivery trucks, and construction loaders, meaning a single valve reference addresses multiple vehicle segments. Since the outlet valve wears at a predictable rate relative to pump revolutions, forward-thinking distributors bundle this item with plunger kits and head seal sets, offering workshops a complete upper-end overhaul package. This approach reduces the frequency of emergency orders and positions the supplier as a proactive partner rather than a reactive parts clerk.

Intervention on this valve demands cleanliness discipline above all else, though the procedure itself requires no specialized extraction tooling beyond a standard socket and torque wrench. Critical attention must focus on the valve pocket's seating face-any embedded debris or previous mechanic-induced scoring will compromise the new sealing surface regardless of the replacement part's quality. Applying the specified torque value, verified against Denso's published figure for the outlet retainer, ensures adequate compression without distorting the internal spring characteristic. Shops that rush this step often encounter persistent leakage immediately upon restart, resulting in a second teardown that erodes any margin gained from using a competitively priced part.

Across the typical service life of a Common Rail pump, the outlet valve endures more pressure cycles than any other internal component aside from the plungers themselves. Its gradual loss of seating integrity manifests as declining pump efficiency rather than abrupt failure, making it an ideal candidate for preventive renewal during injector servicing or scheduled fuel system overhauls. Workshops adopting this practice report fewer rail pressure-related call-backs and more predictable test-bench results, while fleet operators benefit from improved cold-start dependability and reduced starter motor strain. Viewed through a total-cost-of-ownership lens, the valve's contribution to fuel pressure consistency outweighs its modest acquisition cost by a considerable margin.

Q1: How many of these valves should I carry as a minimum stock level to cover emergency repairs across the HP3/HP4 pump families?
A: Based on typical failure intervals and service bay turnover, we recommend maintaining a minimum of six units if you service more than fifteen Denso-equipped vehicles weekly. This covers simultaneous rebuilds and buffer against supply chain fluctuations.

Q2: What is the most frequent cause of premature failure on newly fitted 294009-0940 valves in workshop practice?
A: Contaminated fuel or residual metal particles left in the pump head after plunger replacement consistently rank as the primary culprit, not manufacturing defects. Proper flushing of the high-pressure circuit before installation dramatically reduces early returns.

Q3: Are there any visible wear indicators on a removed valve that help us communicate the need for replacement to customers?
A: Examine the seating ring for a polished, mirror-like band-that indicates normal wear. If you observe pitting, stepping, or a dull matte finish across the sealing face, the valve has passed its effective service threshold and requires immediate renewal.

Q4: Does using this valve across HP3 and HP4 pumps require any software re-adaption or rail pressure offset recalibration?
A: No. The valve functions as a purely mechanical check; no electronic learning or adaption procedure is necessary post-installation. A simple rail pressure bleed and system prime suffices to return the pump to normal operation.

Q5: How does your warranty handling process work for wholesale orders that experience a higher-than-expected early failure rate?
A: We require photographic evidence of the failed valve's seating face and the pump head pocket, along with fuel filter service records. Our technical team evaluates whether the failure stems from installation contamination or material anomaly, and we adjust credit or replacement accordingly on a case-by-case basis.
