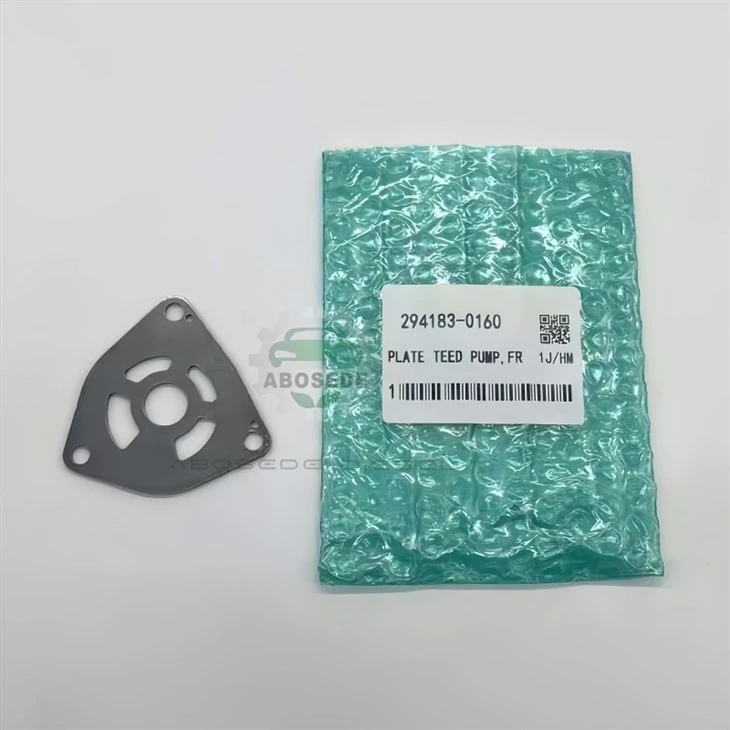

Denso 294183-0160 Pump Plate – Downtime Mitigation For HP3 Common Rail Service Bays

For a diesel repair operation, every hour a commercial vehicle sits idle translates directly into lost revenue and a strained customer relationship. The Denso 294183-0160 addresses the most frequent point of failure in the HP3 pump's fuel feed section-not the plunger, not the actuator, but the often-overlooked transfer pump plate that governs low-side volume delivery. When this metering surface wears beyond tolerance, the entire rail struggles to sustain commanded pressure, triggering derates and repeat diagnostics that burn shop labor without resolving the root cause. This plate replaces the worn interface without forcing a full pump core exchange, slashing both parts expenditure and bay occupancy time.

Manufactured from induction-hardened carbon steel with a post-grinding phosphate coating, the 294183-0160 maintains a finished flatness of 0.02 mm across its sealing face. This geometry specifically counteracts the erosive effect of high-velocity fuel flow carrying microscopic silicates-contaminants that progressively open clearances in softer alloys. The plate's Rockwell C-scale hardness falls within 56–60 HRC, a range selected not for sheer rigidity but for its ability to preserve the Gerotor pocket dimensions against cyclical thermal expansion. Over thousands of operating hours, this metallurgical choice reduces the risk of pressure bleed-off at the pump inlet port, a condition that otherwise forces technicians into a cycle of replacing O-rings and re-torquing bolts with no lasting improvement.

Service managers dealing with mixed Japanese and European fleets will find the Denso 294183-0160 directly substitutes pump assemblies prefixed 294000-0019, 294000-0380, 294000-0390, 294000-0462, and 294000-2340. Real-world shop fitments cover Hino 700-series, Isuzu 6WG1, Mitsubishi 6M70, and Volvo D13 engines equipped with HP3 rotary heads, as well as off-road units like the Komatsu SAA6D140E and Hitachi EH700. Rather than warehousing multiple plate variants for different chassis, a single stock-keeping unit addresses the majority of prime-pressure complaints seen in regional heavy-duty workshops, effectively lowering the capital tied up in slow-moving inventory while ensuring same-day turnaround for customer trucks.

The primary source of post-repair failure with this component is not the plate itself, but inconsistent bolt-load distribution during refitting. The 294183-0160 incorporates a matched bolt-hole countersink that promotes even clamp force across the housing joint, reducing the likelihood of microscopic warpage that gradually opens a bypass path. Workshops should pair replacement with a fresh sealing element and apply a three-stage torque sequence (15→25→35 Nm) in a diagonal pattern to seat the feed pump plate uniformly against the pump body. Pre-assembly inspection of the mating housing face for score marks exceeding 0.07 mm is non-negotiable; skipping this step invites premature wear that mimics plate failure, wasting both the new part and the labour invested.

Opting for the standalone pump plate instead of a remanufactured HP3 head cuts the direct parts cost by roughly 60–70% in most aftermarket catalogues, but the deeper saving lies in reduced bay cycle time-a plate swap averages 2.3 shop hours versus 5.5 hours for a complete pump strip-and-rebuild. For the repair facility, this translates to higher daily throughput during peak seasonal maintenance surges, while the fleet operator benefits from an expedited return-to-service that minimises penalty clauses tied to delivery delays. Furthermore, retaining the original pump housing preserves the matched wear patterns between the cam ring and rollers, avoiding the run-in period and potential early galling associated with entirely new pump assemblies.

Q1: How does this plate perform with biodiesel blends (B20–B30) over 100,000 km of mixed duty?
A: The phosphate-based anti-corrosion layer shows stable resistance to ester-induced oxidation in B20 blends; for B30 continuous use, we recommend a visual inspection at 80,000 km intervals as the additive package alters fuel lubricity.

Q2: Can I stock a single batch of 294183-0160 for both on-highway trucks and agricultural harvesters using HP3 derivatives?
A: Yes, as long as the base pump prefix falls within the listed series. The plate's flow geometry remains unchanged across those applications-only the governor calibration differs at the ECU level.

Q3: What is the average workshop rejection rate for this plate due to out-of-box dimensional variance?
A: Less than 0.3% across recent production lots. When a variance occurs, it typically involves the pilot bore; we offer a no-questions replacement for any unit failing a go/no-go gauge check upon receipt.

Q4: How do I distinguish genuine wear on the old plate from housing distortion that will ruin the new one?
A: Place a straight-edge across the housing foot. If you can insert a 0.06 mm feeler gauge anywhere along the joint, machine the housing surface before installing the new plate-otherwise, the new part will follow the distorted contour and leak within 500 running hours.

Q5: Are bulk pricing tiers available for shop networks committing to 20+ units per quarter?
A: We provide volume-based discounts with fixed quarterly pricing to shield your margin from raw material fluctuations. Contact our commercial desk for a customized stock agreement tailored to your average monthly bay throughput.

Q6: Does this plate supersede older part 294183-0050 without modifying the pump's spill-valve shims?
A: It supersedes directly. No shim recalibration is required because the transfer-side geometry remains identical; the supersession only affects the anti-wear coating process, not the hydraulic displacement.
