Pump Cover 294184-0020 – Managing Downtime And Inventory Risks For Denso HP3 Service Bays

The 294184-0020 pump cover functions as the primary sealing and housing component for the transfer pump stage within Denso HP3-series common rail fuel systems. This casting directly interfaces with the gear-type low-pressure pump, governing fuel inlet routing, internal cavity clearance, and outlet flow direction toward the high-pressure plunger array. For workshops across African and Southeast Asian markets servicing mining haulers, agricultural tractors, and urban delivery fleets, the Denso 294184-0020 cover represents a frequent replacement item where transfer pump cavitation or abrasive wear compromises rail pressure stability. The component carries OEM-spec dimensional tolerances and incorporates a corrosion-resistant surface treatment that mitigates pitting from high-sulfur diesel and tropical humidity-conditions that accelerate aluminium housing degradation in coastal or high-moisture operating environments.

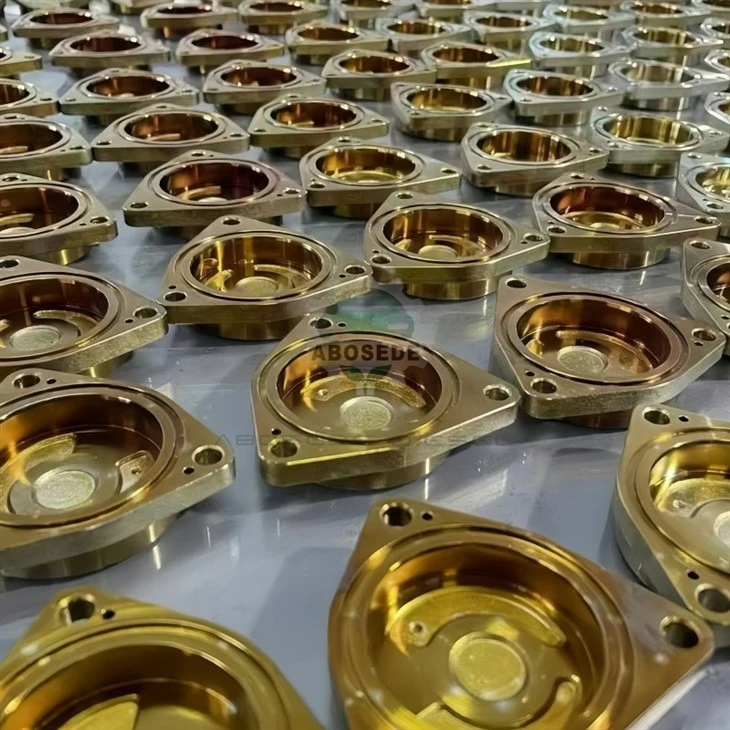

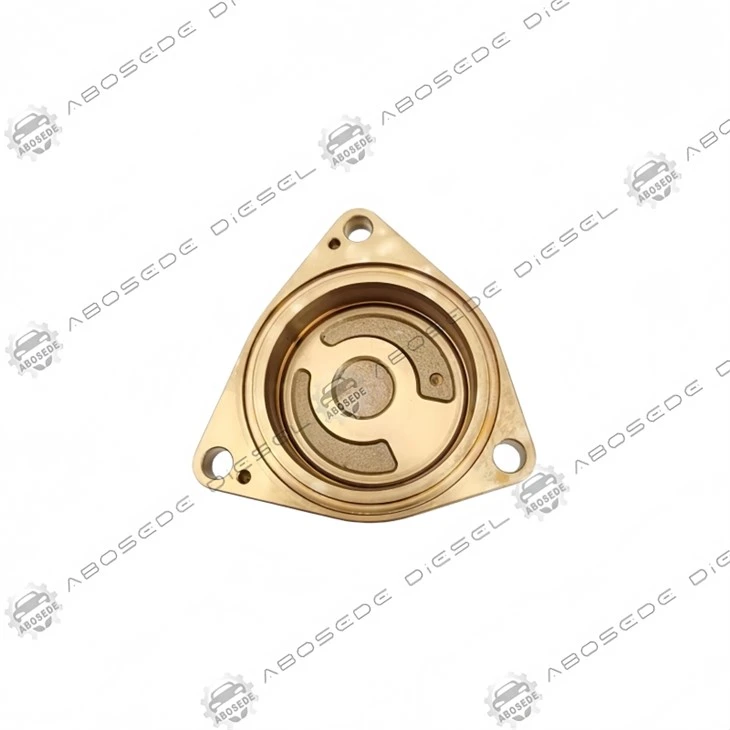

The Denso pump cover 294184-0020 is precision-cast from high-grade aluminium alloy with a post-machining anodized or conversion coating that resists galvanic corrosion at the bolt interface and sealing groove. Internal diameter measurements for the gerotor cavity are held to strict micrometre tolerances, ensuring the transfer pump rotor maintains optimal radial clearance. The cover incorporates four M6 mounting bosses with accurately positioned dowel holes that align with the HP3 intermediate housing. A recessed O-ring channel accepts a 2.5mm cross-section Viton seal, supplied with the cover in most production batches. The component's surface hardness and coating thickness are engineered to withstand the erosive effects of fuel-borne silica particles commonly found in regions where bulk diesel storage and filtration infrastructure varies widely. This surface treatment reduces the risk of scoring on the cavity floor, a failure mode that progressively increases internal leakage and diminishes the transfer pump's volumetric efficiency.

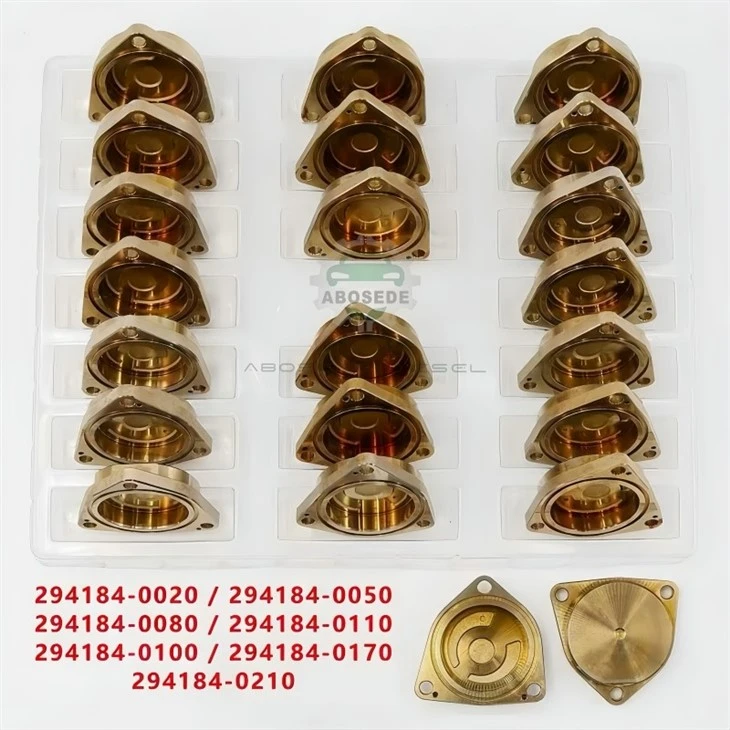

The 294184-0020 transfer pump cover is specified for Denso HP3 pumps fitted to a broad cross-section of diesel platforms prevalent in emerging markets. Primary applications include Isuzu ELF/NPR series (4HG1, 4HF1, 4JJ1 engines), Hino Dutro/500 series (J05E, J07E power units), Mitsubishi Fuso Canter (4M50, 4P10), and Toyota Dyna/U300/400 series with the 15B-FTE or N04C engines. Beyond on-highway trucks, the cover is also applicable to Komatsu wheel loaders and excavators, Hitachi hydraulic excavators, and Kobelco crawler carriers that utilise the HP3 fuel pump architecture. For parts distributors stocking for mixed fleets, the pump cover 294184-0020 covers a significant percentage of medium-duty commercial vehicles operating across Nigeria, Kenya, Ghana, Vietnam, Indonesia, and the Philippines. Cross-referencing the casting number on the existing cover against this part number eliminates ambiguity, as HP3 variants with suffixes 0030, 0050, or 0220 differ in cavity depth or port orientation.



Replacing the 294184-0020 fuel pump cover during an HP3 overhaul restores critical clearances that widen progressively as the transfer pump cavity erodes. In mining applications where equipment runs 20-hour shifts on diesel with variable cetane and filtration quality, the cover's internal surface experiences accelerated wear from microscopic abrasive particles that bypass primary filters. Installing a fresh cover with its factory-specified surface treatment resets the transfer pump's ability to generate consistent low-pressure feed across the entire engine RPM range. For workshop managers in Nairobi, Jakarta, or Accra, carrying this Denso common rail component reduces the time an excavator or haul truck spends off-site-each day of downtime translates to lost excavation volume or missed delivery schedules. The cover's coating is not decorative; it provides a hardened barrier that reduces the risk of surface pitting and the consequential increase in fuel aeration that leads to erratic injector performance and elevated exhaust temperatures.



Proper fitment of the Denso HP3 fuel pump cover demands attention to the sealing land and torque sequence. The O-ring groove must be inspected for prior damage, and the new Viton seal should be lightly wetted with clean diesel to prevent rolling during cover seating. All bolt holes require cleaning to remove old threadlocker residue, which can cause false torque readings. The four retaining screws should be snugged progressively in a crosswise pattern, final torqued to 12–14 Nm. Over-torquing the 294184-0020 cover can distort the cavity geometry, increasing parasitic friction on the transfer pump rotor and potentially seizing the assembly. Under-torquing invites fuel seepage and air ingestion at the suction side. For workshops without accurate torque wrenches-common in remote site conditions-establishing a consistent hand-tightening sequence with a fixed-length handle reduces variability. The cover's flange design includes an alignment boss that prevents rotational misalignment, simplifying assembly compared to non-indexed pump covers.



Q1: Which specific casting marks should we check on the old cover to confirm 294184-0020 compatibility before ordering?

A: Visually inspect the inner face of the existing cover for the Denso casting number stamp, usually laser-etched or embossed near the inlet port. The full 294184-0020 designation must match exactly-do not rely solely on pump body numbers, as some HP3 pumps have been retrofitted with non-original covers during previous repairs.

Q2: Does the surface coating on this cover withstand biodiesel blends or high-sulphur fuel common in our region?

A: The conversion coating applied to the Denso 294184-0020 pump cover offers enhanced resistance to the corrosive by-products of combustion and fuel oxidation. It performs reliably with B5 to B20 biodiesel blends and sulphur content up to 500 ppm. For ultra-high-sulphur fuel exceeding 2000 ppm, we recommend shortening the inspection interval to 3000 hours.

Q3: Can we reuse the old cover if it shows only minor surface dulling without visible pitting?

A: Surface dulling from normal burnishing is acceptable, but any measurable step wear at the cavity floor-detectable with a fingernail or dial gauge-warrants replacement. Reusing a worn 294184-0020 cover typically results in marginal pressure loss that may not trigger fault codes immediately but will affect fuel economy and cold-start performance.

Q4: Is this cover interchangeable with the 294184-0030 variant often listed for newer HP3 pumps?

A: The bolt pattern and outer dimensions are identical, but the 294184-0020 and 294184-0030 differ in internal cavity depth to accommodate variations in transfer pump rotor thickness. Installing the wrong cover alters axial clearance, risking rotor bind or excessive end-play. Always match the cover suffix to the pump assembly's original specification.

Q5: What is the typical lead time and minimum order quantity for bulk shipments to Lagos or Ho Chi Minh City?

A: Standard case quantities are 20 units per carton. Lead time to major port cities ranges from 14 to 21 days via sea freight, with air express options available for urgent workshop restocking. Contact our distribution desk for consolidated shipping arrangements that combine the pump cover 294184-0020 with other HP3 service parts.

Q6: How do we verify that replacement covers from different production batches maintain consistent coating thickness?

A: Each production lot of the Denso pump cover 294184-0020 is subject to batch sampling with coating thickness verification using eddy-current testing. Test reports are available upon request. In practice, consistency between batches remains within ±5 micrometres, ensuring uniform wear characteristics across all units.
