PUMP COVER 294184-0080 – The Component That Determines Whether That HP3 Leaves Your Bay On Time

That truck on lift three has been there since yesterday morning. Rail pressure oscillates between 280 and 340 bar at hot idle. New injectors went in two weeks ago. The ECU got reflashed. The high-pressure pump passed the leak-off test. Yet the driver still reports hesitation under grade. Somewhere in your shop, a technician is about to recommend pulling the pump head again. Before that happens, look at the gear pump enclosure on the back of that HP3. If the cover carries the same wear pattern as the one you replaced last quarter, you are chasing the wrong variable. The 294184-0080 pump cover houses the low-pressure transfer stage for Denso HP3 pumps built on base 294000-0610. It dictates the running clearance between the transfer pump rotor and its housing wall-a dimension that directly governs how much fuel reaches the high-pressure plungers. When that clearance drifts, volumetric efficiency drops. The system compensates until it cannot. Then the truck sits, the bay stays occupied, and the flat rate consumes your margin.

The 294184-0080 maintains the original equipment bore diameter and depth profile that interface with the gear set. The sealing face flatness specification falls within the factory tolerance band required for proper O-ring compression. Port locations align with the pump body's flow passages, preserving the intended fuel routing through the low-pressure fuel circuit. The cover incorporates the locating dowel holes at the factory-specified centres, eliminating any need for modification during installation. Material composition mirrors the thermal expansion characteristics of the original housing, preventing differential growth that could distort the sealing interface under operating temperatures.

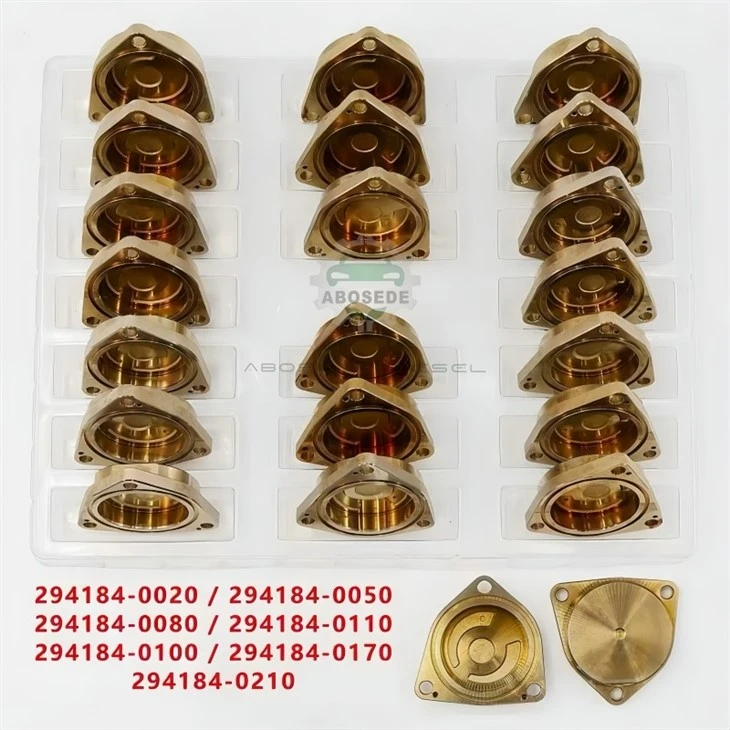

This cover fits Denso HP3 pumps carrying base number 294000-0610, with cross-reference compatibility extending to 294000-0380, 294000-0390, and 294000-0462. The HP3 platform appears across Hino medium trucks, Isuzu N-series, and various European OEM chassis common in fleet operations. Construction equipment from multiple manufacturers also utilise this pump generation for their diesel power units. Workshops servicing mixed fleets will find this cover applicable across the majority of HP3-based systems requiring fuel pump cover attention.

Cover replacement demands attention to the pump body mating face-residual gasket material or debris as thin as 0.08mm creates localised stress points that distort the housing during bolt tightening. This distortion opens pathways for air ingress that mimic injector faults. The fastening sequence requires staged torque application in a criss-cross pattern; uneven clamp load introduces bending stress that promotes crack initiation at the port wall transitions. Lightly coating the O-ring with clean fuel before positioning prevents rolling that creates immediate weep paths. A low-pressure circuit prime after installation confirms unobstructed flow before engine start.

In the common rail architecture, feed pump efficiency determines rail pressure stability. A degraded cover permits internal bypass that forces the high-pressure plungers to draw against restriction, introducing cavitation and erratic pressure readings that complicate diagnostics. Installing this cover restores the transfer pump's volumetric efficiency to original specification, eliminating the variable clearance that produces intermittent faults. This targeted intervention addresses the mechanical root cause without disturbing high-pressure elements, reducing parts expenditure and bay occupancy while delivering a durable repair.

Q1: How does the cover condition affect my diagnostic workflow for drivability complaints?
A: It provides a fixed reference point. Once you eliminate cover leakage as a variable, you can confidently move to sensor validation or injector performance without feed pump clearance uncertainty clouding your pressure readings.

Q2: What inventory level should a repair shop maintain for this cover?
A: Based on HP3 service frequency, maintaining 2–3 units per bay dedicated to medium-duty diesel work covers most unplanned failures while keeping carrying costs contained.

Q3: How does the warranty claim rate compare to remanufactured pump exchange?
A: Field data shows significantly lower claim frequency for cover-only repairs, as the intervention disturbs fewer system components and introduces fewer assembly variables.

Q4: Can this cover be fitted to pumps that have been previously remanufactured?
A: Yes, provided the pump body retains the original bore dimensions and the locating dowels remain within specification.

Q5: What documentation supports proper installation for warranty purposes?
A: Torque records and photographs of the mating face condition prior to fitment provide clear evidence that installation followed recommended procedures.
