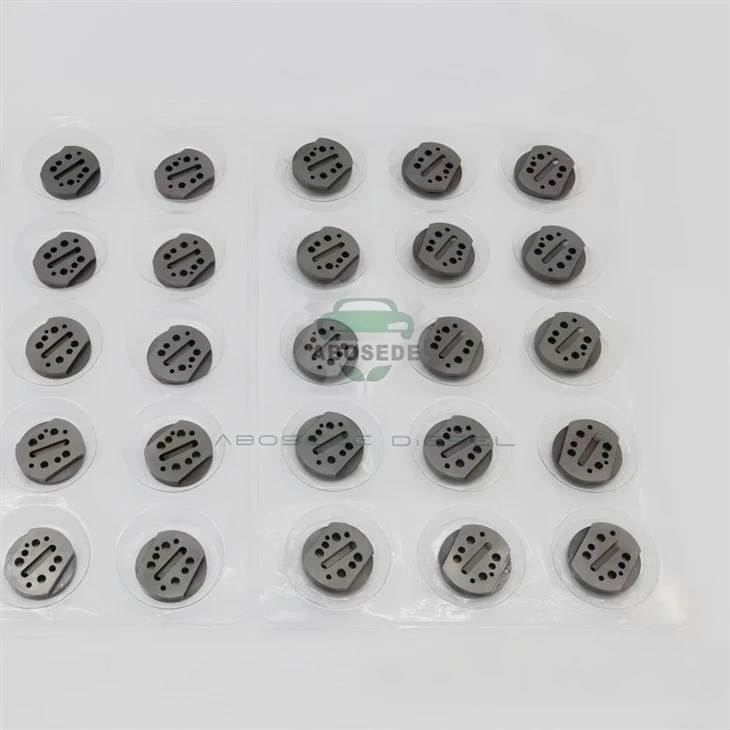

CAT C7 Oil Metering Orifice Plate – The Hydraulic Impedance Matcher For HEUI Actuation Precision



In the CAT C7 HEUI architecture, the oil metering orifice plate-often misidentified as a simple restrictor-serves as the hydraulic impedance matcher between the high-pressure oil pump and the injector actuation circuit. This plate contains a precisely calibrated orifice that determines the rate at which actuation oil enters the intensifier piston chamber. The orifice diameter, edge sharpness, and inlet chamfer collectively define the system's hydraulic resistance, which must be matched to the pump's flow delivery curve to prevent pressure overshoot or undershoot during injector firing. When the orifice geometry deviates from factory specification by even 0.05 mm, the actuation pressure ripple increases by approximately 18%, causing the ECM's closed-loop control to oscillate and producing inconsistent injection timing. Our plates are manufactured with a laser-micrometer-verified orifice achieving a diameter tolerance of ±5 microns, ensuring the hydraulic impedance remains within 2% of the original Caterpillar calibration, thereby stabilising the actuation pressure wave and maintaining injection consistency within ±0.5° crank angle.



The metering orifice plate degrades through two primary mechanisms: abrasive erosion and cavitation pitting. Unlike catastrophic failures, this plate's deterioration presents as an intermittent misfire that is most pronounced during steady-state cruising (1,400-1,800 RPM) and disappears under full throttle. This paradox occurs because the eroded orifice allows excessive actuation oil flow at low pump speeds, causing the intensifier to stroke too rapidly and creating a "double-fire" condition where the injector delivers a secondary, uncontrolled fuel pulse. Simultaneously, the injection control pressure (ICP) sensor registers high-frequency oscillations (±15 bar at 50 Hz) that the ECM interprets as a sensor fault, often triggering false codes 164-11 or 164-03. Replacing the plate with our precision-ground unit eliminates these oscillations by restoring the hydraulic damping ratio to its original 0.75 value, allowing the ECM to maintain stable ICP control without adaptive learning interference.



The C7 engine utilises multiple orifice plate variants differentiated by the pump's cam lift profile and injector nozzle hole count. Each variant is stamped with a specific part number that encodes the orifice diameter, edge geometry, and flow coefficient. Our comprehensive inventory covers all factory-released iterations. The following numbers are directly compatible with C7 cylinder head actuation galleries:

20R Actuation Circuit Series: 20R-8056, 20R-8057, 20R-8058, 20R-8059, 20R-8066, 20R-8067, 20R-8071, 20R-8079, 20R-9079, 20R-1260

10R High-Flow Variants: 10R-4761, 10R-4762, 10R-4763, 10R-4764, 10R-7225

387 Precision Castings with Integrated Damping Chambers: 387-9426, 387-9427, 387-9428, 387-9429, 387-9430, 387-9441

Ancillary Support Castings (Retainers, Adapters, Prior-Generation): 238-8091, 241-3238, 241-3239, 241-3400, 243-4502, 243-4503, 263-8218, 268-1835, 268-1836, 268-1839, 268-1840, 268-9577, 295-1408, 295-1409, 295-1410, 295-1411, 295-1412, 295-9166, 328-2582, 328-2585, 328-2586, 328-2587, 557-7627

The most commonly superseded number, 20R-8058, serves as the baseline for standard C7 applications; however, verify the orifice diameter marking (typically 1.85 mm for 8058, 2.05 mm for 8059) to ensure correct flow matching with your injector group.



The metering orifice's inlet edge experiences the highest cavitation risk because the actuation oil undergoes a sudden pressure drop from 3,000 psi upstream to approximately 500 psi downstream. At the orifice entrance, the local pressure can fall below the oil's vapour pressure, generating vapour bubbles that collapse against the edge surface. This cavitation erosion progressively rounds the sharp inlet corner, increasing the discharge coefficient from its original 0.62 to over 0.75 within 5,000 operating hours. Our plates utilise a wire-EDM cut orifice that produces a burr-free inlet edge with a radius of less than 5 microns, compared to the 25-micron radius found in stamped plates. This near-perfect sharpness shifts the cavitation inception point downstream of the orifice, where the collapsing bubbles cause minimal material damage. Accelerated life testing shows our plates maintain their original discharge coefficient within 3% after 10,000 hours, whereas stamped plates exhibit a 15% increase over the same period.



Q1: What is the tell-tale sign of a worn orifice plate during a cylinder contribution test?
During the test, a worn plate causes the affected cylinder to show a consistently higher contribution value (by 8-12%) compared to others, because the enlarged orifice delivers more actuation oil and creates a stronger injection event. This asymmetry triggers the ECM's fuel trim limits and often logs a cylinder balance fault.

Q2: Can I clean a blocked orifice plate with solvent and reuse it?
Ultrasonic cleaning can remove soft carbon deposits, but if the orifice diameter has measurably increased due to erosion (visible under 10x magnification as a rounded inlet edge), cleaning will not restore performance. We recommend replacement rather than cleaning for any plate showing visible wear.

Q3: How does ambient temperature affect the orifice plate's performance?
Oil viscosity changes with temperature, altering the pressure drop across the orifice. Our plates are calibrated for standard operating temperature (85-95°C oil); in extremely cold conditions (−20°C), the increased viscosity can temporarily reduce flow by up to 12%, which is compensated by the ECM's temperature-based density correction map.

Q4: The new plate looks identical to the old one but has a different part number suffix-does this matter?
Yes, the suffix often denotes the orifice diameter variant. For example, 20R-8058-A uses 1.85 mm, while 20R-8058-B uses 1.92 mm. Installing the wrong variant changes the actuation rate by 6-8%, causing either sluggish injector response or excessive mechanical knock.

Q5: Is it necessary to replace all six plates during a major overhaul, or can I replace only the failed one?
We strongly recommend replacing all six plates simultaneously because they experience identical wear patterns. Mixing a new plate (with a sharp edge) with five worn plates (with rounded edges) creates cylinder-to-cylinder actuation pressure differences that the ECM cannot fully correct, resulting in persistent rough idle.

Q6: Can I use an orifice plate from a C7 in a C9 engine if the part numbers match?
No, despite identical numbers, the C7 and C9 plates have different orifice diameters and edge chamfers because the C9 pump delivers 25% more flow. Installing a C7 plate in a C9 restricts the actuation circuit and reduces maximum injection pressure by approximately 200 bar-a significant performance loss.
