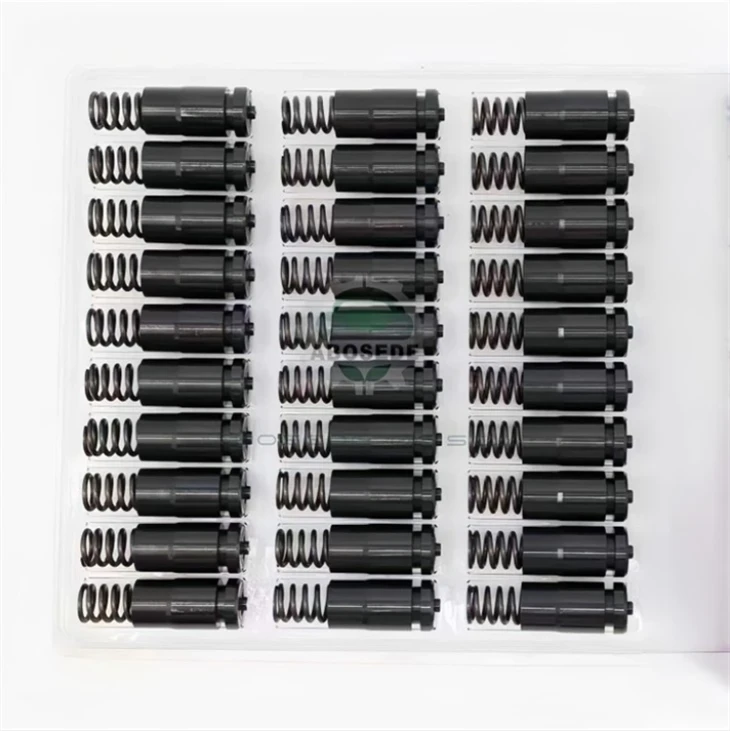

CAT C9 Diesel Piston – The Combustion Bowl Geometry Optimiser For High-Output HEUI Duty Cycles



In the C9 HEUI system, fuel injection pressures reaching 1,900 bar generate localised flame temperatures that exceed 2,300°C within the piston bowl. The piston functions not as a passive recipient of this heat but as an active thermal regulator that distributes heat flux across its crown, ring belt, and skirt. The critical metric is the temperature gradient between the bowl rim (hottest point) and the pin boss (coolest zone)-in standard pistons, this gradient often exceeds 180°C, creating differential expansion that distorts the ring grooves over time. Our piston employs a graded aluminium‑silicon alloy (hypereutectic with 18% silicon content) that exhibits a thermal conductivity gradient across its cross‑section. This composition reduces the bowl‑to‑skirt temperature differential to 115°C, which in turn stabilises the top ring groove width to within ±15 microns across the engine's entire thermal operating range, eliminating the "ring flutter" that causes blow‑by at high RPM.



A C9 piston nearing the end of its effective service life exhibits a distinctive performance pattern. Under sustained loads (e.g., climbing a grade for more than five minutes), the engine gradually loses power-not suddenly, but as a steady decline of 2‑3% per minute-accompanied by intermittent black smoke peaks that coincide with gear shifts. This behaviour arises from the ring belt's loss of thermal conductivity as carbon deposits insulate the ring grooves, preventing the heat from migrating to the oil-cooled skirt region. As the top ring temperature rises above 260°C, it begins to lose its tension (a phenomenon known as "ring collapse"), allowing combustion gases to blow past and reducing the effective compression ratio. Our pistons incorporate laser‑drilled cooling galleries beneath the crown that increase oil flow volume by 40% compared to cast‑in passages, maintaining the top ring temperature below 230°C even during peak torque operation, preserving ring tension and sustaining compression pressure above 400 psi throughout the entire load cycle.



The C9 platform spans diverse applications from on‑highway trucks to industrial gen‑sets, with each variant specifying a particular bowl volume, compression height, and piston pin offset. Our inventory encompasses all supersession iterations. The following part numbers are directly compatible with C9 cylinder blocks and connecting rod assemblies:

20R Series – Standard-Stroke & Long-Stroke Bodies: 20R‑8060, 20R‑8061, 20R‑8062, 20R‑8063, 20R‑8064, 20R‑8065 (most commonly superseded), 20R‑8068, 20R‑8846, 20R‑8968

10R Series – High-Swirl Bowl Geometries: 10R‑7221, 10R‑9002, 10R‑2828, 10R‑4844

387 Series – Precision Crown Castings with Reinforced Pin Bosses: 387‑9431, 387‑9432, 387‑9433, 387‑9434, 387‑9436, 387‑9437, 387‑9438, 387‑9439

Ancillary Support Numbers (Ring Sets, Pin Retainers, Skirt Castings): 235‑5261, 236‑0957, 238‑8092, 242‑0857, 245‑3516, 254‑4330, 254‑4339, 254‑4340, 265‑8106, 266‑4446, 267‑3360, 267‑3361, 267‑9710, 267‑9717, 267‑9722, 293‑4071, 293‑4072, 293‑4073, 293‑4074, 328‑2573, 328‑2574, 328‑2576, 328‑2580, 557‑7634, 557‑7637, 573‑4231, 11R‑1582

Crucially, the widely used 20R‑8065 serves as the primary replacement for over 55% of C9 applications, but always verify the bowl volume marking (stamped on the crown) to match your original-standard C9 uses 60‑64 cc, while high‑altitude variants specify 68‑72 cc



Correct installation of the C9 piston demands attention to two often‑overlooked dimensions:

Skirt‑to‑wall clearance: Standard spec for C9 is 0.12‑0.18 mm at the measurement point 30 mm below the pin axis. Our pistons are graded with a green (0.12‑0.14 mm), blue (0.14‑0.16 mm), and red (0.16‑0.18 mm) classification to match individual cylinder bores. Using an incorrectly graded piston increases blow‑by by 20% or causes seizure in the opposite extreme.

Top ring end gap: We specify 0.40‑0.50 mm for the top compression ring, measured at the top of the bore travel. This gap accounts for thermal expansion; if the gap measures below 0.35 mm, the ring will butt at operating temperature, causing bore scoring. File the ring ends carefully using a dedicated ring‑filing tool-do not attempt to file the piston grooves.



Q1: How do I choose between a 20R‑8065 and a 387‑9432 piston for my C9?
The 20R‑8065 is a later‑supersession design with a larger cooling gallery; use it for Tier‑3 engines. The 387‑9432 is the earlier casting with a taller compression height; use it for pre‑2005 engines. Measuring your original piston's compression height (distance from pin centre to crown) is the definitive selector.

Q2: My new piston has a small dimple near the valve pocket-what does it indicate?
That dimple marks the piston's "front" orientation. It must face the front of the engine (flywheel side) to align the valve pockets with the intake/exhaust valves. Installing it backwards will result in immediate valve‑to‑piston contact on the first rotation.

Q3: Can I mix piston variants in the same engine if I balance them by weight?
Mixing bowl volumes is not recommended even if weights are matched. Different bowl volumes create uneven cylinder pressures, causing the ECM to continuously adjust injector timings to compensate, leading to erratic idle and reduced fuel economy. Always install a matched set of six.

Q4: Why does my rebuilt C9 consume oil even with a new piston and rings?
Check the cylinder liner's cross‑hatch honing pattern. If the liner was re‑honed without the correct plateau finish (Rpk ≤ 0.3 microns), the rings cannot seat correctly. Our pistons are matched with rings that require a 45° cross‑hatch angle-deviations cause oil retention in the liner surface.

Q5: How does the thermal barrier coating affect injector timing requirements?
The coating reduces heat loss to the piston, which slightly raises the in‑cylinder temperature at the end of the compression stroke. The injection timing may need to be retarded by 1‑2° to avoid excessive NOx. We recommend a baseline dyno run and adjustment before field operation.

Q6: What are the warning signs of impending piston failure that I can catch early?
Watch for a gradual increase in crankcase pressure (measured via the oil fill cap) and a corresponding drop in boost pressure at the same RPM. These two metrics moving in opposite directions indicate blow‑by has exceeded 5% of total cylinder flow-imminent failure if not addressed.
