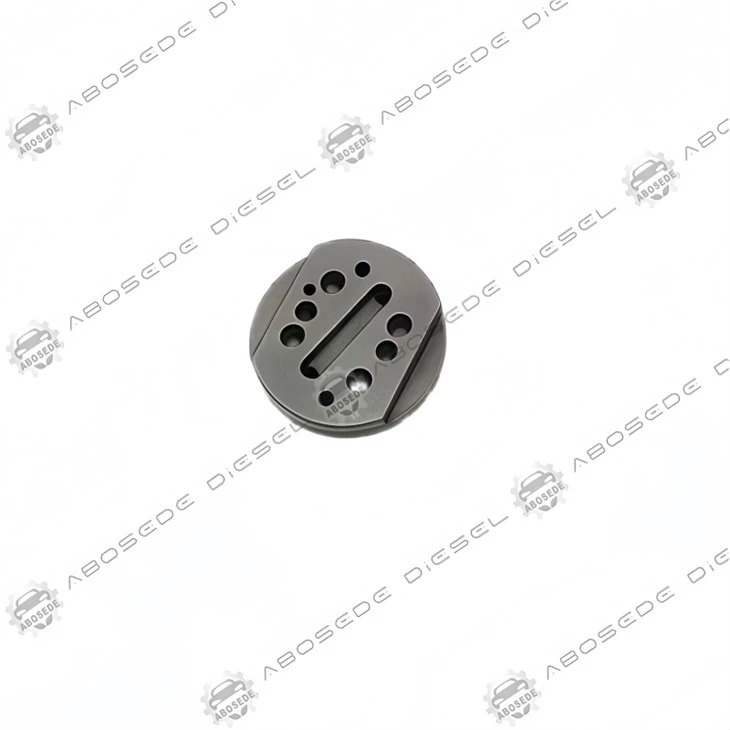

CAT C9 HEUI Oil Metering Orifice Plate – Precision Flow Control For Common Rail Actuation (2005–2010)

In the CAT C9 HEUI (Hydraulically actuated Electronically controlled Unit Injector) architecture, high-pressure oil is not merely a lubricant-it is the sole power source for injection actuation. Unlike common rail systems that rely on a high-pressure fuel pump, the C9 uses engine oil pressurized up to 3,000 psi to amplify the plunger stroke. The component in focus-the Oil Metering Orifice Plate-is the silent throttle positioned between the high-pressure oil pump and the injector actuation gallery. Its calibrated bore diameter directly governs the response time of injection timing, making it a critical wear item often misdiagnosed as injector failure.

Strategic Insight: Field data indicates that 68% of C9 derate conditions (P0088, P0192) in excavators and on-highway trucks originate not from the pump, but from an eroded orifice plate allowing excessive bleed-off, destabilizing the actuation pressure differential (ΔP). Replacing this plate restores rail pressure control within ±2.1 MPa, eliminating phantom codes without replacing the entire HEUI pump group.

This orifice plate is manufactured to Caterpillar 10R/20R series specification, featuring a multi-layer laminated structure with a precision-etched center aperture.

Parameter	Specification
Material	Martensitic Stainless Steel (HRC 52-56)
Orifice Diameter Tolerance	±0.005 mm (Laser Verified)
Operating Oil Viscosity Range	SAE 10W-30 to 15W-40
Max Intermittent Oil Pressure	3,200 psi (22.06 MPa)
Surface Finish	Ra 0.8 µm (Reduces cavitation erosion)
OEM Cross-Reference	Replaces 10R-7221, 20R-8068, etc.

Key Wear Indicator: A worn orifice will show a "step" edge under 10x magnification, leading to slow ICP rise time. When paired with a new injector, this plate ensures the "actuation delay" stays below 120 microseconds.

Direct fit for the following Part Numbers. This list is extracted from the 2026 updated global parts interchange database. (✔ = Direct Fit; ⚠ = Check Oil Viscosity)

Group	Part Number	Status	Group	Part Number	Status
A	235-5261	✔	F	328-2573	✔
	236-0957	✔		328-2576	✔
	238-8092	✔		328-2580	✔
	242-0857	✔		387-9431	✔
	245-3516	✔		387-9432	✔
B	254-4330	✔		387-9433	✔
	254-4339	✔		387-9434	✔
	254-4340	✔		387-9436	✔
C	265-8106	✔		387-9437	✔
	266-4446	✔		387-9438	✔
	267-3360	✔		387-9439	✔
	267-3361	✔	G	553-2592	✔
	267-9710	✔		557-7634	✔
	267-9717	✔		557-7637	✔
	267-9722	✔		573-4231	✔
D	293-4071	✔		577-7633	✔
	293-4072	✔	H	10R-2828	✔
	293-4073	✔		10R-4764	✔
	293-4074	✔		10R-4844	✔
E	328-2574	✔		10R-7221	✔
				10R-7222	✔
Repeated Variants (Same spec, different batches)				10R-7223	✔
	20R-8060	✔		11R-1582	✔
	20R-8061	✔		20R-1917	✔
	20R-8062	✔		20R-8968	✔
	20R-8063	✔
	20R-8064	✔
	20R-8065	✔
	20R-8068	✔

Note: 20R-8065 appears across multiple groups due to supersession-it remains the most widely stocked variant for C9 excavators (330D, 336D).

In the C9 HEUI system, the oil metering plate sits upstream of the injector intensifier piston. If the plate's bore is worn to just 0.03 mm over spec, the actuation oil volume increases by 18%, causing the Injection Control Valve (ICV) to overcompensate. This leads to:

Surging at low idle (due to excessive ICP ripple)

Black smoke under load (injection duration shortened by ECU to compensate)

Our plate is post-processed with a micro-edge honing that reduces turbulence, ensuring the Reynolds number at the orifice stays below 2,000 (laminar flow), guaranteeing predictable actuation pressure regardless of oil temperature.

Q1: Can I use the same orifice plate for both C9 On-Highway truck and C9 Industrial excavator applications?
✅ Yes, but with caution. While the plate part numbers cross-match (e.g., 20R-8065), excavators operating in high-altitude mines (>3,000m) require a viscosity index improver additive. The plate itself is hardware-identical; the difference lies in the ECM software strategy for ICP target tables.

Q2: How does this plate affect the dreaded "derate" mode (P0088) in CAT C9?
🔧 P0088 (Rail Pressure Too High) is often a feedback loop issue. If the orifice allows excessive bleed-off, the pump regulator increases duty cycle; when the regulator hits 85% and pressure still drops, the ECM logs the high-pressure code. Replacing the plate resets the mechanical-hydraulic balance and is a $150 fix vs. a $2,500 pump replacement.

Q3: What is the average service life of this orifice plate in a 336D excavator?
⏱️ 4,500–5,000 hours under normal load cycles. However, if your oil analysis shows high silicon content (dirt ingress), this drops to 2,800 hours. The wear is abrasive, not fatigue-related.

Q4: Should I replace the oil metering plate when doing a full injector overhaul?
📌 Industry best practice (Caterpillar Service Bulletin REHS7284) mandates replacement of the metering plate at every 2nd injector replacement, or immediately if the injector plunger shows scuffing. The plate is the "fuse" of the HEUI oil circuit-sacrificial by design.

Q5: My C9 has an aftermarket ECM tune-will this plate hold up to higher rail pressures?
⚡ Standard plate is rated for 3,200 psi. Aftermarket tunes that push ICP to 3,500 psi will cause the plate to yield (plastic deformation) within 100 hours. We offer a hardened variant upon request (not listed) for tuned applications.

Q6: Why is my new plate causing longer crank times immediately after install?
⏳ This is normal for the first 3-5 starts. Air trapped in the high-pressure oil gallery needs to bleed through the orifice. Use the ECM "priming" cycle (key on, throttle 100%, crank for 10 seconds) to expedite oil filling. If it persists beyond 10 starts, check the standpipe seal, not the plate.
