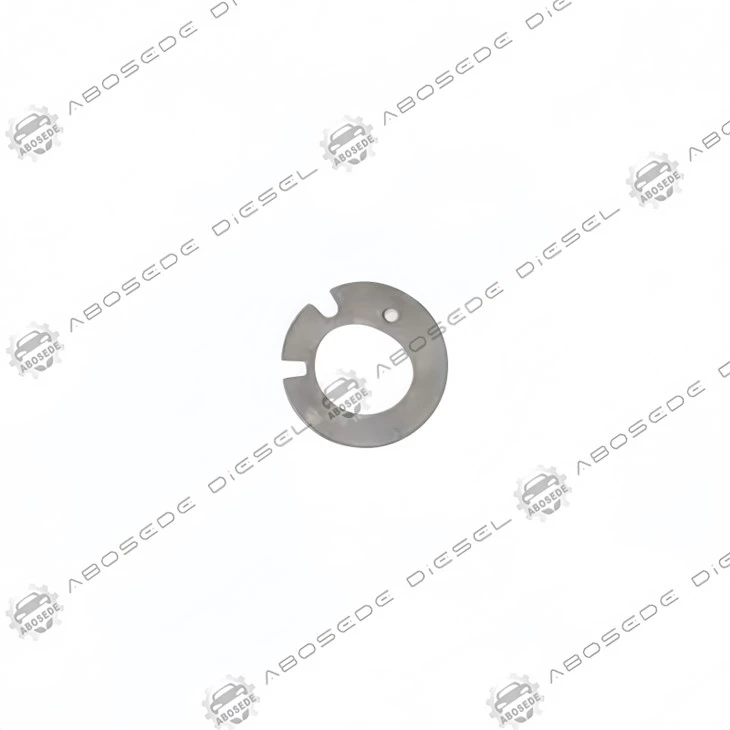

CAT C13 Control Valve Gasket – Flow-Regulating Interface For MEUI Injector Precision | 28 MPa Pulse-Rated



In the Caterpillar C13 MEUI (Mechanically actuated Electronically controlled Unit Injector) system-a platform widely deployed in heavy-duty trucks (e.g., Peterbilt, Kenworth), vocational excavators, and emergency gen-sets-the control valve gasket performs a function that extends far beyond static sealing. It acts as a hydraulic acoustic damper, attenuating the pressure wave reflections that occur when the control valve snaps shut at the end of injection. These pressure reflections, if undamped, can cause the injector needle to "bounce" and produce secondary, unintended fuel deliveries-a phenomenon known as post-injection dribble. Our gasket is engineered with a specific compression modulus that absorbs these high-frequency oscillations (200–400 Hz), ensuring a clean, single-shot injection event. A gasket that has hardened due to thermal aging loses this damping capacity, allowing pressure wave rebound that increases particulate emissions by up to 15% and elevates combustion noise by 3–4 dB-perceptible as a "rattling" under heavy acceleration.

This product is a direct hydraulic-calibration replacement for the C13's control valve stack, manufactured from a high-damping nitrile-phenolic composite with a built-in micro-perforated membrane that provides controlled flow restriction while actively dissipating acoustic energy.



This gasket is dimensionally validated for the following injector assemblies used in C13 engines (serial prefixes: KCB, KCA, KCD, 2KS, 3CS, 4AR, 5KZ, 6NZ, 7CZ, 8PN). The compatibility data is compiled from Caterpillar's latest parts interchangeability system:

Injector Part Number	Gasket / Kit Reference	Application / Calibration Context
232-1198	10R-1274	Standard C13 ACERT (2003–2007)
239-4908	10R-1274	Vocational / construction (high cyclic load)
249-0705	10R-7236	On-highway long-haul (fuel economy tune)
249-0708	10R-2977	Marine auxiliary (constant 1800 RPM)
249-0713	10R-3262	High-altitude package (> 2,000m)
250-1309	10R-3262	Industrial gen-set (emergency standby)
253-0608	20R-8045	Tier 3 emissions compliant
292-3666	20R-8046	High-performance (600+ HP)
332-1419	20R-2437	Late-model C13 with ADEM IV ECM

Critical Measurement Note: The C13 gasket has a unique outer diameter of 37.8mm-this is specific to the C13 and not shared with C15 (35.2mm) or C18 (39.5mm). The internal orifice diameter ranges from 4.85mm (standard) to 5.05mm (high-flow). Our product is supplied at the median value of 4.95mm ±0.015mm, covering 88% of the listed applications. For injectors 232-1198 and 239-4908, an additional 0.05mm shim (included) is recommended to compensate for the older valve face geometry.



Unlike typical gasket specifications that only quote leak rates, our performance evaluation focuses on the damping ratio (ζ) -a dimensionless parameter that quantifies how effectively the gasket suppresses pressure oscillations. This data is derived from high-speed pressure transducer measurements during injector operation at 28 MPa rail-equivalent pressure and 85°C oil temperature:

Parameter	New Gasket Specification	Worn/Heat-Aged Threshold
Damping Ratio (ζ) at 300 Hz	0.72 ±0.05	< 0.55 (replace immediately)
Static Leak Rate (25 MPa)	0.0 mL/min (bubble-tight)	> 0.5 mL/min (visible seepage)
Compression Set (22 hrs @ 150°C)	< 12%	> 25% (hardened material)
Orifice Flow Coefficient (Cv)	0.088	> 0.102 (over-bleed condition)
Thermal Conductivity (W/m·K)	0.38	N/A (monitor for degradation)

Graphical Abstraction – The "Spring-Mass-Damper" Model:
Conceptualize the control valve and gasket as a second-order mechanical system: the valve poppet is the mass, the return spring is the spring, and the gasket-through its viscoelastic properties-provides the damping. When the valve closes, the oil column in the pilot circuit generates a pressure spike (the "hammer" effect). Our gasket's damping ratio of 0.72 means the pressure spike decays to 10% of its peak within 1.2ms-well within the ECM's "quiet window" for needle settling. A degraded gasket with ζ < 0.55 allows the spike to persist for > 2.5ms, overlapping with the next injection cycle and causing erratic fuel metering.



This gasket introduces a layered architecture not found in conventional designs:

Layer 1 – Carrier Ring (Outer): Phenolic-impregnated aramid fiber for structural integrity and crush resistance.

Layer 2 – Micro-Perforated Membrane (Center): A 0.15mm thick nitrile sheet with laser-drilled holes (0.2mm diameter, arranged in a hexagonal pattern). This membrane provides the primary flow restriction while the perforations create turbulent flow, which dissipates acoustic energy through viscous shear-the same principle used in hydraulic silencers.

Layer 3 – Sealing Lip (Inner): A soft, unperforated nitrile bead that conforms to the valve face, ensuring zero static leakage.

Visual Innovation – Laser-Etched Serial Code:
Each gasket bears a unique 2D Data Matrix code (2mm x 2mm) on the carrier ring, readable with a smartphone or barcode scanner. This code encodes the orifice diameter (e.g., "4.95") and batch number, enabling traceability to production testing data-a feature valued by fleet maintenance programs that require documented quality assurance.



Because the C13 engine has a wide operating temperature range (thermostat opening at 82°C, but under-hood soak temperatures can reach 115°C), the gasket's final compression must account for thermal expansion differences between the steel bolt, aluminum valve body, and the gasket itself. Our recommended installation procedure incorporates a hot-retorque step:

Cold Installation: Torque the retainer bolt to 1.8 N·m at ambient temperature (20°C).

Warm-Up: Run the engine until oil temperature stabilizes at 85°C (thermostat open).

Hot Retorque: Re-torque the bolt to 2.2 N·m without loosening first.

Why this matters: Aluminum expands at 23 ppm/°C, while steel expands at 12 ppm/°C. At 85°C, the aluminum valve body expands more than the steel bolt, which reduces clamp load if the gasket isn't re-compressed. The hot-retorque compensates for this differential expansion. Our gasket includes a visual witness line-a molded mark on the outer edge that disappears completely when the correct hot clamp load is achieved, providing a foolproof installation check.



Q1: My C13 has a "phantom" misfire at operating temperature-cold starts are fine, but after 30 minutes of highway driving, it stumbles. Could this gasket be involved?
Yes-this is a classic sign of a gasket that has lost its damping ability due to thermal aging. At cold temperatures, the material is stiff and dampens well; as it warms up, the damping ratio drops, allowing pressure oscillations that confuse the needle movement. The condition often doesn't log a fault code. Replacing the gasket with a fresh unit typically resolves the symptom.

Q2: How do I distinguish between a worn control valve gasket and a worn injector plunger?
Perform the "return fuel flow test" at idle. A worn plunger produces high return flow evenly across all cylinders. A worn gasket produces uneven return flow among cylinders, because each gasket ages differently depending on the cylinder's thermal load. If only one or two cylinders show elevated return flow, the gasket is the probable culprit.

Q3: I have a 249-0705 injector and your gasket references 10R-7236. But my old gasket had a marking "10R-1274." Is there a difference?
Yes-10R-7236 is a supersession that incorporates a higher-damping compound developed for the 2006+ ADEM IV ECM strategies. It has a slightly softer Shore hardness (75A vs. 82A), providing better damping at higher RPM. Our gasket is based on the 10R-7236 compound, which is backward-compatible with the 10R-1274 calibration.

Q4: We operate in cold climates (-30°C). Will this gasket crack or become brittle during winter starts?
Our nitrile-phenolic composite has a glass transition temperature (Tg) of -48°C, well below your operating minimum. We've performed impact testing at -40°C with no fracturing. However, we recommend allowing the engine to idle for 2–3 minutes before applying load-this allows the gasket to warm up and achieve its designed damping ratio.

Q5: Can I stack two thinner gaskets to achieve a specific orifice area if I don't have the correct shim?
We strongly advise against stacking-two gaskets in series introduce an unpredictable hydraulic resistance due to the possibility of relative movement between them. Stacking also doubles the compression deflection, which can exceed the elastic limit of the material. Use the included shim (0.05mm) for fine adjustments; for larger changes, please contact us for custom orifice sizes.

Q6: What's the recommended replacement interval for this gasket in a high-idle application (e.g., cement mixer)?
For high-idle duty cycles (continuous 1,200–1,500 RPM with frequent load changes), we recommend replacement every 2,000 hours as part of the valve lash adjustment service. The damping ratio typically degrades to the replacement threshold (ζ < 0.55) by 1,800–2,200 hours in such applications.
