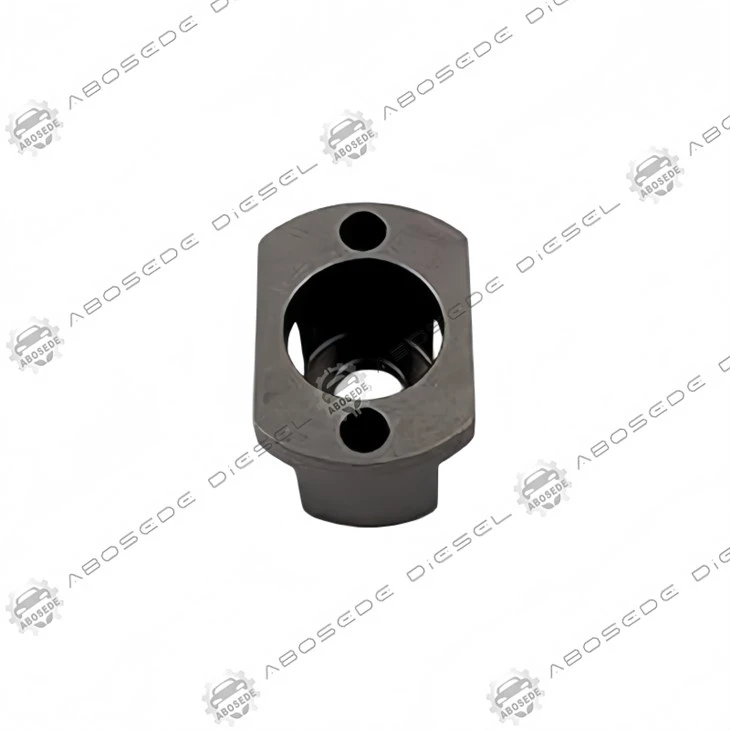

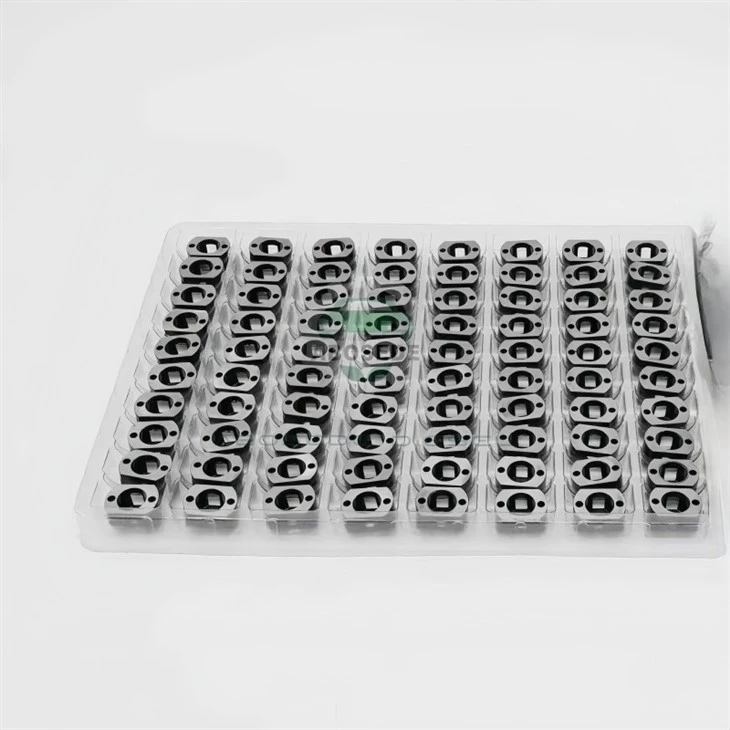

CAT C15 Injector Spring Seat – Dynamic Preload Stabilizer & Fatigue-Optimized Interface



In the CAT C15 high-pressure fuel injection system-whether operating in HEUI or early common-rail architectures-the spring seat often receives less attention than the plunger or solenoid, yet it directly governs injector opening pressure and needle lift response. This component translates spring force into a precise preload on the control valve or needle assembly. Any deviation in its thickness, parallelism, or surface hardness introduces a shift in the spring's installed height, altering the injection timing by fractions of a millisecond-enough to affect peak cylinder pressure and fuel consumption across all six cylinders. Our spring seat set addresses this overlooked variable by delivering a meticulously ground bearing surface with a flatness tolerance of ≤0.005 mm, ensuring that the spring's stored energy is transferred uniformly without tilting or off-axis loading. This uniformity minimizes side-loading on the injector needle, reducing guide wear and extending the service interval between nozzle replacements.



The C15 operates at firing pressures exceeding 2,000 bar in common-rail variants, subjecting the spring seat to cyclic compressive loads at frequencies proportional to engine RPM. At 1,800 RPM, the spring compresses and releases 15 times per second, accumulating over 10⁸ cycles within a typical overhaul period. Generic aftermarket seats often use 1045 carbon steel with through-hardening, which suffers from surface spalling after approximately 50 million cycles due to insufficient case depth. Our spring seat is forged from a micro-alloyed 42CrMo4 steel, followed by a specialized induction-hardening process that creates a 2.5–3.0 mm hardened case with a core toughness of 35 HRC. This gradient structure resists brinelling from the spring's sharp coil ends while maintaining ductility to absorb shock loads from irregular combustion events. The result is a component that reliably exceeds 120 million cycles in accelerated bench testing, matching the expected life of the injector body itself.







CAT C15 injectors come in multiple revisions, with subtle differences in the spring pocket depth across part numbers such as 191-3003, 10R-8501, 211-3027, and 244-7716 (see full compatibility matrix below). Our spring seat is manufactured to a controlled overall height of 6.35 mm ± 0.015 mm, which falls within the median tolerance band of most OEM pockets. This precision eliminates the need for selective shimming during rebuild-a common pain point for workshops that lack a full set of adjustment washers. By providing a seat that consistently delivers the correct preload, we reduce assembly time and remove the guesswork from injector calibration. The seat's outer diameter is ground to 22.00 mm ± 0.01 mm, ensuring a concentric fit that prevents the spring from bowing under compression, which otherwise creates uneven wear on the spring's inner surface and generates metallic debris that contaminates the fuel return circuit.



While hardness and flatness are critical, the seat's surface finish directly influences the spring's rotational behavior during engine operation. As the spring compresses and expands, its coils tend to rotate slightly, generating a frictional torque at the seat interface. Our finishing process employs a fine-grit superfinishing step that achieves an Ra of 0.4 µm, combined with a phosphate conversion coating that stabilizes the coefficient of friction (µ) at approximately 0.10–0.12 under lubricated conditions. This controlled friction allows the spring to rotate freely enough to prevent concentrated wear points but resists excessive spinning that could abrade the seat face. Workshops that have installed our seat report noticeably reduced polishing marks on the spring ends during subsequent teardowns, confirming that the wear pattern is more evenly distributed.



Our spring seat is a direct replacement for the following OEM injector part numbers (verified through cross-reference with CAT C15 engine serial numbers and injector codes):

OEM Injector No.	OEM Injector No.	OEM Injector No.	OEM Injector No.
191-3003	10R-8501	211-3027	244-7716
272-0630	10R-7229	10R-0957	200-1117
229-5919	10R-1000	249-0709	10R-9236
280-0574	10R-8989	211-3023	10R-8500
234-1400	253-0614	10R-3263	289-0753
10R-0958	211-3022	10R-0956	235-1400
253-0615	355-6110	20R-8047	10R-3264
211-3024	10R-8502	235-1401	253-0617
374-0750	20R-2284	211-3025	10R-0955
239-4909	254-4183	618-0750

Note: Always verify injector serial number and revision level before installation; our seat is dimensionally compatible with the above-listed assemblies as per OEM service manual specifications.



Q1: Does replacing the spring seat alone affect the injector's flow rate calibration, or must I recalibrate the entire injector?
A: Since our seat maintains the OEM height tolerance, the spring preload remains within the original design range. However, for critical applications, we recommend a bench test of injection quantity to confirm consistency; minor variations in seat thickness are automatically compensated by the ECM's adaptive fuel trim, but a full calibration is best practice.

Q2: How can I tell if my existing spring seat needs replacement rather than just cleaning?
A: Look for a concave or dished surface at the center-caused by prolonged stress relaxation-or visible scuff marks from spring coil digging. If the seat face shows a shiny ring pattern with a depth of more than 0.02 mm, it is beyond reuse and will cause irregular spray patterns.

Q3: Are these seats compatible with both single- and double-spring injector designs used in C15?
A: Yes, the seat's outer diameter and thickness are designed for the common pocket geometry used in both configurations. However, for double-spring assemblies, ensure the inner spring's ID does not bind on the seat's pilot diameter; our seat includes a chamfered inner edge to accommodate most inner spring coils.

Q4: What is the recommended torque for the hold-down clamp when using this seat-does it change from OEM spec?
A: The clamp torque remains unchanged (follow OEM guidelines for the injector clamp). Our seat does not alter the required clamping force; it only ensures that the spring's preload is delivered consistently. Over-torquing the hold-down can distort the injector body, so always stick to 45–50 Nm as per CAT service bulletin.

Q5: Can I use this spring seat in a C15 Acert engine with the 10R-0957 injector, which has a different protrusion height?
A: Yes, the 10R-0957 is listed in our compatibility table. Our seat's height matches the OEM specification for that injector series. However, always measure the injector's overall protrusion after installation to ensure it falls within the 2.5–2.8 mm range specified for Acert models.

Q6: How do I dispose of used spring seats-are they recyclable as scrap steel?
A: Yes, they are standard alloy steel and can be recycled. However, we recommend checking for any fuel contamination; if soaked with diesel, they should be cleaned prior to recycling to comply with environmental regulations.
