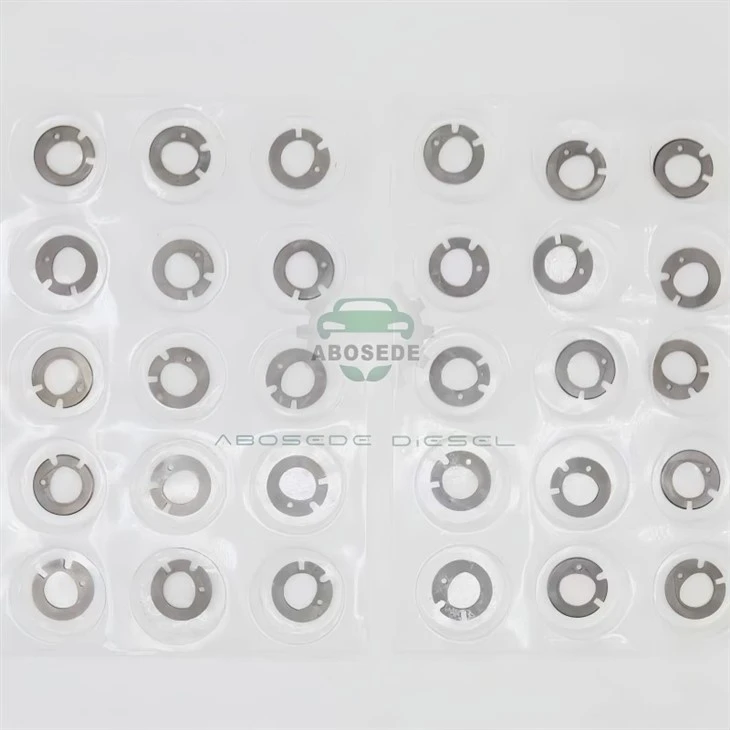

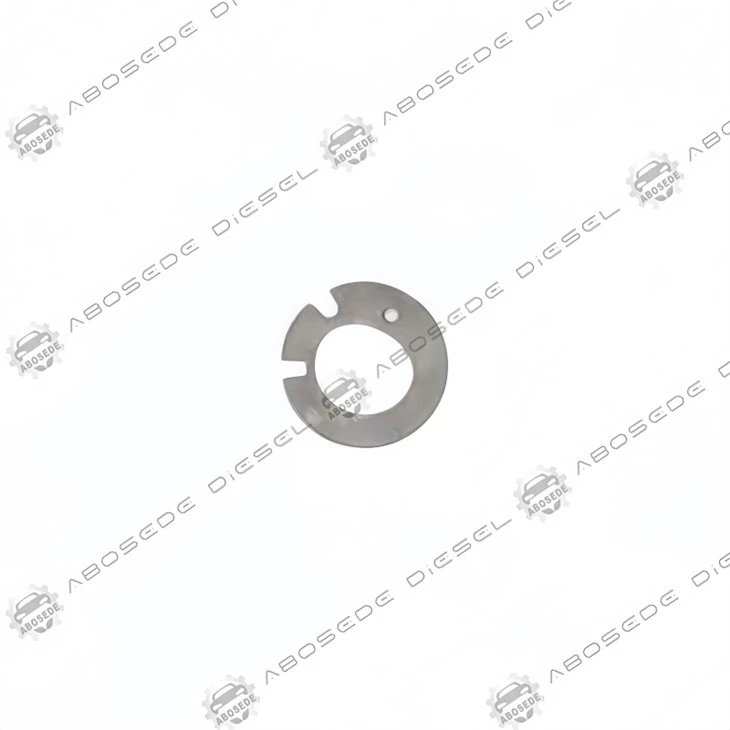

CAT C10 Control Valve Gasket – Dimensional Reference For MEUI Injector Stack Height | 32.8mm OD Precision Component



Within the Caterpillar C10 MEUI (Mechanically actuated Electronically controlled Unit Injector) fuel system, the control valve gasket serves a deceptively critical function: it acts as the dimensional reference for the entire injector stack height. Unlike dynamic components that control timing electronically, this gasket determines the physical starting point for the control valve plunger's stroke. When the retainer bolt is torqued, the gasket's thickness directly sets the preload on the valve spring and defines the "null position" of the control valve. This null position-specifically the distance between the valve poppet and its seat-determines how much pilot oil can flow when the solenoid is energized. A gasket that is 0.02mm thinner than specification reduces the valve spring preload by approximately 8%, altering the poppet's opening lift and causing a measurable shift in the fuel delivery map that the ECM cannot fully compensate for.

Our product is a precision-grounded control valve gasket specifically dimensioned for the C10 injector envelope, manufactured from a creep-resistant polyetheretherketone (PEEK) composite that maintains its dimensional integrity under sustained clamp load. This gasket provides the accurate stack height required to preserve the C10's factory-injection phasing, directly addressing the "low power / high EGT" complaints common among high-mileage C10 fleet units.



This gasket is physically validated for the C10 engine family, covering the following serial prefixes and platform-specific calibrations:

Engine Serial Prefix	Equipment Application	Power Rating Context
9KS, 9KN	Class 8 on-highway trucks	305–335 HP @ 2100 RPM
2KS, 2KZ	Transit buses / motorhomes	280–310 HP (low-NOx tune)
3CS, 4AR	330-series excavators	300–325 HP (variable speed)
5KZ, 6NZ	Marine propulsion / gen-set	275–300 HP (constant-speed)
7CZ, 8PN	Industrial / crane carriers	290–320 HP (high torque rise)

Dimensional Confirmation: The C10 control valve gasket is defined by an outer diameter of 32.8mm, an inner orifice of 4.88mm, and an uncompressed thickness of 1.20mm. These dimensions are unique to the C10 and are not shared with C11 (33.5mm/4.72mm) or C13 (37.8mm/4.95mm) gaskets. Installing a gasket from any other MEUI engine on a C10 will result in incorrect stack height and altered valve lift characteristics.



For the C10, the gasket's dimensional accuracy is more important than its material softness. The following table presents the key physical and flow parameters that must be verified during installation:

Parameter	Specification Limit	Consequence of Deviation
Uncompressed Thickness	1.20 mm ±0.01mm	±0.02mm = ±2.5° injection timing shift
Outer Diameter	32.80 mm ±0.05mm	Oversize = binding in bore
Orifice Diameter	4.88 mm ±0.01mm	Oversize = advanced timing / knocking
Flatness (both faces)	< 0.005mm	Warp = uneven seating / internal leak
Clamp Load at 1.8 N·m	1,950 N ±5%	Low = valve bounce; High = crushed gasket

Graphical Abstraction – The "Stack-Up" Model:
Conceptualize the injector as a vertical stack of components: the control valve body, the gasket, the spacer ring, and the retainer bolt. Each component's thickness contributes to the total stack height, which determines the valve spring's installed length. This gasket is the adjustable variable in this stack-it is the only component intentionally selected in varying thicknesses during factory calibration to fine-tune each injector's flow characteristics. Our 1.20mm nominal thickness corresponds to the median factory setting; using this gasket restores the injector to its baseline stack height, allowing the ECM's adaptive learning to function within its optimal trim range.



The most common failure mode for C10 control valve gaskets is not wear-through, but creep relaxation-the gradual thinning of the material under sustained clamp load. Over 5,000 operating hours, a standard fiber gasket can lose 0.05–0.08mm of thickness, effectively advancing injection timing by 4–6° and increasing NOx emissions. Our gasket addresses this with:

PEEK Matrix: Polyetheretherketone offers exceptional creep resistance-less than 1% deformation after 1,000 hours at 100°C under 2,000 N load, compared to 8–12% deformation for fiber-reinforced nitrile.

Glass Fiber Reinforcement: 20% short glass fibers provide isotropic dimensional stability, preventing the gasket from expanding unevenly in the radial direction (which could pinch the valve poppet).

Low Moisture Absorption: PEEK absorbs less than 0.1% moisture by weight, ensuring that the gasket's thickness does not change with atmospheric humidity during storage-a common issue with aramid-based gaskets that can vary by up to 0.02mm between dry and humid environments.

Visual Innovation – Thickness Identification Color Coding:
Each gasket is assigned a color based on its precise measured thickness, clearly printed on the packaging label:

Green: 1.18 – 1.20mm

Blue: 1.20 – 1.22mm
This allows technicians to quickly select the correct gasket thickness for their specific injector code without requiring micrometer measurements in the field.



Because the C10's injector uses a non-adjustable valve spring, the gasket thickness alone determines the spring preload. We recommend the following installation sequence:

Clean the Valve Face: Remove all old gasket residue using a non-abrasive solvent-do not scrape with metal tools, as this damages the sealing surface.

Measure the Old Gasket: Before discarding the old gasket, measure its compressed thickness. If it's less than 1.15mm, it has creep-relaxed beyond specification.

Install the New Gasket: Place the gasket over the locating pin on the valve body-it will sit flat when correctly aligned.

Torque to 1.8 N·m: Apply torque in a single smooth motion to 1.8 N·m. Do not use a torque-angle method on the C10; the M5 bolt is not torque-to-yield.

Post-Installation Check: After installation, manually rotate the engine through one complete revolution. Listen for any unusual metallic "clicking" during the compression stroke-this indicates the control valve plunger is contacting the gasket's inner edge, suggesting the gasket is not seated correctly.



Q1: I have six C10 injectors with different calibration codes. Can I use a single gasket thickness on all?
If your injectors have different calibration codes (stamped on the injector body), they were originally factory-matched to specific gasket thicknesses. However, after 8,000+ hours, the valve faces have worn, changing the effective stack height. In practice, a single median thickness (1.20mm) works acceptably across the range, and the ECM's adaptive learning will compensate for minor variations. We recommend replacing all six with the same thickness for consistency.

Q2: How does this gasket compare to the OEM version in terms of lifespan?
Our PEEK composite gasket typically outlasts the OEM fiber gasket by a factor of 1.5–2x in creep resistance. We have field data showing 7,000 hours of consistent thickness retention in highway truck applications, compared to 4,000–5,000 hours for OEM fiber. The primary limitation remains the injector's operating hours, not the gasket itself.

Q3: Can a gasket that's too thick cause injector seizure?
Yes-if the gasket is over 1.30mm thick, the control valve plunger may not fully seat, leaving the spill port partially open. This causes continuous fuel bypass and a "runaway" fuel delivery condition. Our gasket is dimensioned at 1.20mm specifically to avoid this. If your injector has a stamped code requiring a different thickness, please contact us.

Q4: Our C10 has 12,000 hours and we're replacing injectors with reman units. Do we need new gaskets?
Absolutely. Remanufactured injectors often have resurfaced valve faces, which reduces the stack height by 0.05–0.10mm. Using the old gasket thickness will result in insufficient preload. We recommend ordering a slightly thicker gasket (1.25mm) for reman injectors or using our included shim set.

Q5: What's the visible sign that a gasket has failed on a C10?
On the C10, a failed gasket (excessive bleed) typically manifests as white smoke at cold idle and a persistent "puff" of black smoke during acceleration. The white smoke is unburned fuel from retarded timing; the black puff is overfueling as the ECM attempts to compensate. If you see this, check the gasket thickness before condemning the injector.

Q6: Can I use a copper washer instead of this composite gasket?
No-copper washers have no controlled crush characteristic and cannot maintain a precise stack height. They also deform plastically under heat, becoming thinner over time. Our composite gasket is the only recommended type for the C10's MEUI injector.

---
