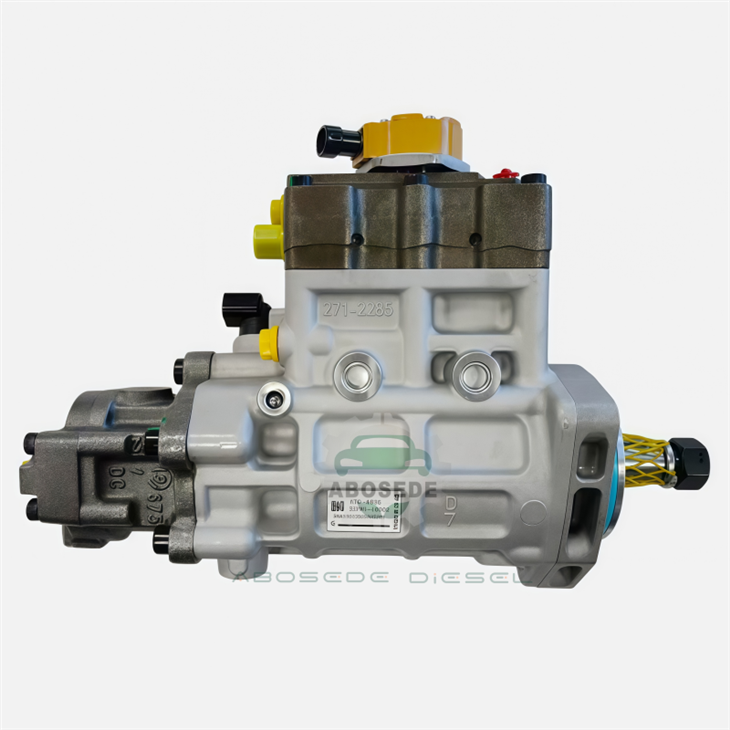

The Kinetic Core: Masterpiece Of Pressure—C6.4 High-Pressure Pump 326-4365

In the modern heavy-duty ecosystem, the transition from mechanical injection to High-Pressure Common Rail (HPCR) technology was a silent revolution. At the epicenter of this shift for the C6.4 engine series lies the 326-4365 Fuel Injection Pump. It is far more than a delivery mechanism; it is a high-frequency hydraulic pulse generator that defines the power density and emission profile of the world's most resilient earthmovers. Engineered to survive where others fail, the 326-4365 is the final word in fuel system reliability for the mid-range industrial segment.





The brilliance of the 326-4365 lies in its Asymmetric Cam Profile. While standard pumps provide a linear pressure increase, this unit is designed to synchronize its peak pumping events with the firing order of the C6.4 injectors. This creates a "Harmonic Synergy" within the rail, minimizing pressure waves that cause injector fatigue.

Micro-Honed Plungers: Each plunger is finished to a mirror-like surface to ensure that the fuel film thickness remains constant, preventing metal-to-metal contact even when using Ultra-Low Sulfur Diesel (ULSD) with lower lubricity.

Intelligent Metering: The integrated Solonoid Actuated Suction Control Valve (SCV) adjusts the fuel intake volume in real-time, meaning the pump only compresses what is needed-dramatically reducing the heat signature of the fuel system.

Forged Structural Integrity: The housing is cast from high-tensile alloy steel to prevent "body flex" under the 1,800+ Bar internal stresses.





For the technical buyer, the performance of the 326-4365 is grounded in its quantifiable precision:

Data Point	Technical Specification
Product Identifier	326-4365 / 3264365
Engine Platform	C6.4 ACERT™ Technology
Fuel Delivery Logic	High-Pressure Common Rail (HPCR)
Primary Drive	Heavy-Duty Gear-Driven System
Inlet Control	Electronic Suction Control Valve (M-Prop)
Operating Capacity	Optimized for 180 Bar ~ 1800 Bar Output







The 326-4365 is not a "generalist" part; it is a specialized component found in machines that shape the global infrastructure.

320D & 323D Excavators: These machines are the workhorses of the construction industry. The 326-4365 ensures they maintain the high breakout force required for rock-heavy trenching.

Precision Demolition: In environments where fine-tuned throttle control is necessary to prevent structural accidents, the pump's rapid pressure modulation is indispensable.

Material Handling: For loaders and handlers working in high-heat industrial yards, the 326-4365's superior thermal management prevents "limp mode" incidents.





In the world of the 326-4365, the greatest enemy is the invisible. The internal clearances are so tight-often less than $3\mu m$-that a human hair would act like a massive obstruction. This precision is the reason the C6.4 engine can achieve Tier 3 / Stage IIIA compliance without sacrificing torque.

When the 326-4365 operates, it creates a "hydraulic lock" that allows the common rail to act as a stable energy reservoir. If these tolerances widen due to contamination, the engine loses its "sharpness," resulting in lazy throttle response and increased smoke opacity. Installing a genuine-spec 326-4365 restores that original factory combustion rhythm.





Q1: What is the most effective way to prevent "Plunger Scuffing" in my 326-4365?

The primary culprit is water emulsification. Water lacks the film strength of diesel. We recommend a primary fuel-water separator with a 10-micron rating and a secondary filter of 2-microns. Never allow your machines to sit over winter with half-empty fuel tanks to avoid condensation.

Q2: My diagnostic tool shows "Rail Pressure Deviation." Is the 326-4365 pump at fault?

Not necessarily. Before condemning the pump, check the SCV (Suction Control Valve) and the pressure sensor on the rail. Often, the pump is physically capable of producing pressure, but the electronic regulator is clogged by fine debris.

Q3: How does the 326-4365 handle "Dry" winter-grade diesel?

Winter fuels have lower viscosity and lubricity. While the 326-4365 is designed with hardened coatings to handle this, adding a high-quality lubricity improver can act as a "buffer" for the internal high-pressure plungers during extreme cold-start events.

Q4: Is there a "Break-in" period for a new 326-4365 pump?

While the pump is ready for work out of the box, it is best practice to allow the engine to idle for 15-20 minutes after installation to ensure all air is purged. Air bubbles can cause "cavitation erosion" on the valve seats during the first high-load run.

Q5: Can I rebuild my old 326-4365 unit in a standard workshop?

Common Rail pumps require a Clean Room Level 4 environment. Even a speck of dust from a standard workbench can cause an internal seizure at 1,800 Bar. Unless you have an ultrasonic cleaner and a computerized test bench for calibration, always opt for a factory-new or professionally remanufactured unit.
