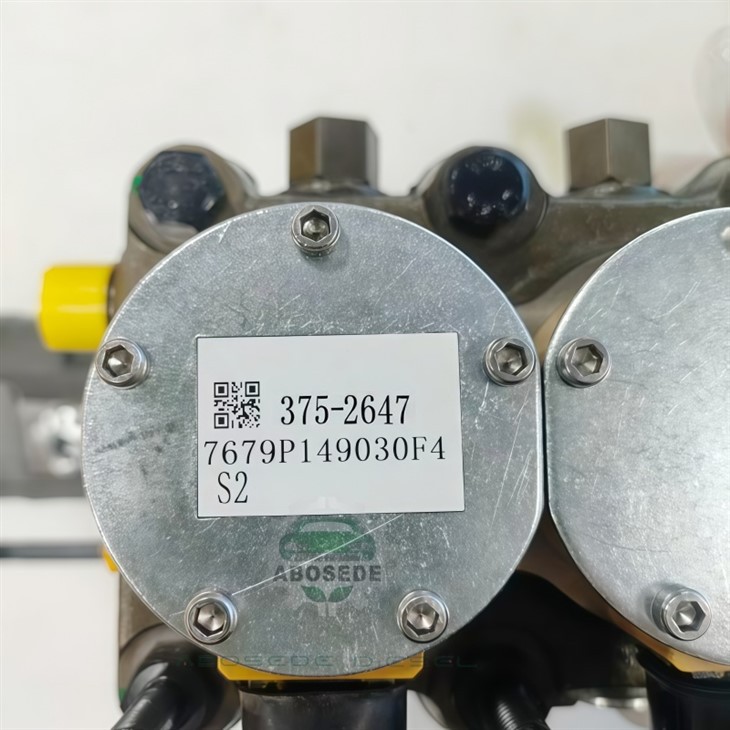

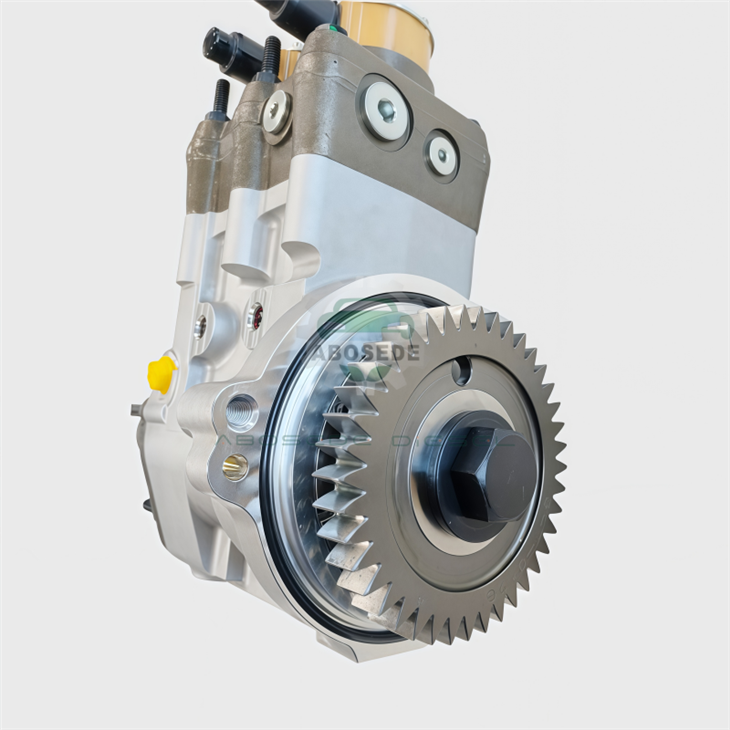

CAT 375-2647 High-Pressure Fuel Pump: DLC-to-Nitrided Barrel Interface, Clearance Stability & C13/C15 Common-Rail Wear Life
video
CAT 375-2647 High-Pressure Fuel Pump: DLC-to-Nitrided Barrel Interface, Clearance Stability & C13/C15 Common-Rail Wear Life

CAT 375-2647 High-Pressure Fuel Pump: DLC-to-Nitrided Barrel Interface, Clearance Stability & C13/C15 Common-Rail Wear Life

1. Product:375-2647
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal

  • Fast Delievery
  • Quality Assurance
  • 24/7 Customer Service
Product Introduction

In a common-rail pump, the critical dimension is not the nominal plunger diameter. It is the clearance that remains after thermal cycling, abrasive exposure, and fuel corrosion. CAT 375-2647 is an aftermarket OEM replacement high-pressure diesel pump for C13/C15 common-rail systems. Its design focus is surface engineering as a clearance-control strategy: DLC-coated plungers working against a plasma-nitrided barrel to slow wear, reduce friction, and preserve volumetric efficiency. This page covers fitment, tribology data, coating adhesion, contamination modes, installation validation, and diagnostic logic.



🔍 Entity & Fitment: 375-2647 in C13/C15 Common-Rail Systems

CAT 375-2647 is used in C13 and C15 common-rail diesel fuel systems. Confirm OE number 375-2647, 3752647, or 375 2647, then match mounting flange, drive gear, inlet and outlet ports, and electrical connector. Do not rely on engine family alone. C13 and C15 installations can differ by machine serial, fuel-line routing, and pressure-control strategy. A correct number with the wrong flange or gear is still a no-fit. If your URL does not indicate C13/C15, set a canonical or update the page entity so Google can match the product to the correct application.



🧱 Why Clearance Stability Beats Hardness Alone

A plunger and barrel are a controlled-clearance pair, not a perfect seal. A small clearance allows a lubricating film; too much clearance increases internal leakage and reduces volumetric efficiency. Hardness alone does not guarantee clearance stability. What matters is how the surface resists adhesive wear, abrasive particles, and corrosive attack while maintaining geometry. 375-2647 combines a DLC coating on the plunger with a plasma-nitrided barrel surface. The goal is not maximum hardness, but predictable clearance over thousands of hours of pressure cycling.



📉 Tribology Data: DLC, Plasma Nitriding, Roughness & Friction

✅ Plunger coating: DLC applied by plasma-assisted chemical vapour deposition
✅ DLC hardness: approx. 2,000 HV
✅ DLC friction coefficient: approx. 0.08
✅ Barrel treatment: plasma-nitrided, case depth approx. 0.030 mm
✅ Plunger core: high-speed steel grade, approx. 62 HRC
✅ Surface roughness: Ra ≤0.04 µm
✅ Wear rate: approx. 60% lower than standard nitride-hardened plungers
✅ Clearance change: within approx. 0.001 mm after 6,000 hours
✅ Volumetric efficiency target: ≥88% after 8,000 hours
✅ Product: 375-2647, aftermarket OEM replacement, fully tested
✅ Origin: ABOSEDE Diesel
✅ Shipping: 3–5 business days
✅ Payment: T/T, Western Union, PayPal
⚠ Do not dry-run. Do not reuse contaminated fuel. Do not force the drive gear.



❓ FAQ

1. Which engines use CAT 375-2647?
It is used in C13 and C15 common-rail diesel fuel systems. Confirm engine serial, pump number, flange, gear, ports, and connector before ordering.

2. Can the DLC coating peel off 375-2647?
DLC adhesion depends on substrate preparation and process control. A plasma-nitrided case supports the coating. Contamination, overheating, and cavitation erosion can still damage the surface.

3. What does 0.030 mm plasma-nitrided case depth mean?
It indicates the hardened layer thickness on the barrel surface. A deeper case supports load-bearing capacity and resists surface deformation, helping maintain clearance.

4. Why does volumetric efficiency drop in a common-rail pump?
As plunger-barrel clearance increases, internal leakage rises. Abrasive particles, adhesive wear, corrosion, and cavitation erosion all increase clearance and reduce efficiency.

5. What rail pressure data should I check after installation?
Record desired vs. actual rail pressure at idle, mid-load, and snap acceleration. Also check pressure decay after key-off and return-flow volume.

6. Can 375-2647 replace other C13/C15 pump numbers?
No. Different pump numbers can have different flanges, gears, ports, and control strategies. Use the correct OE number for the specific engine and serial.
