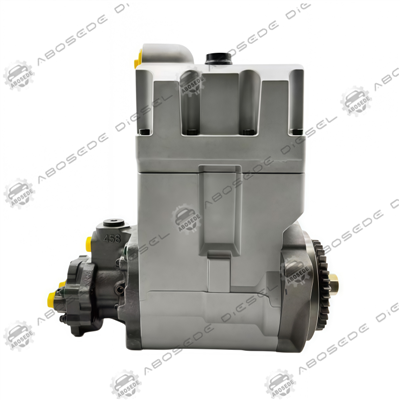

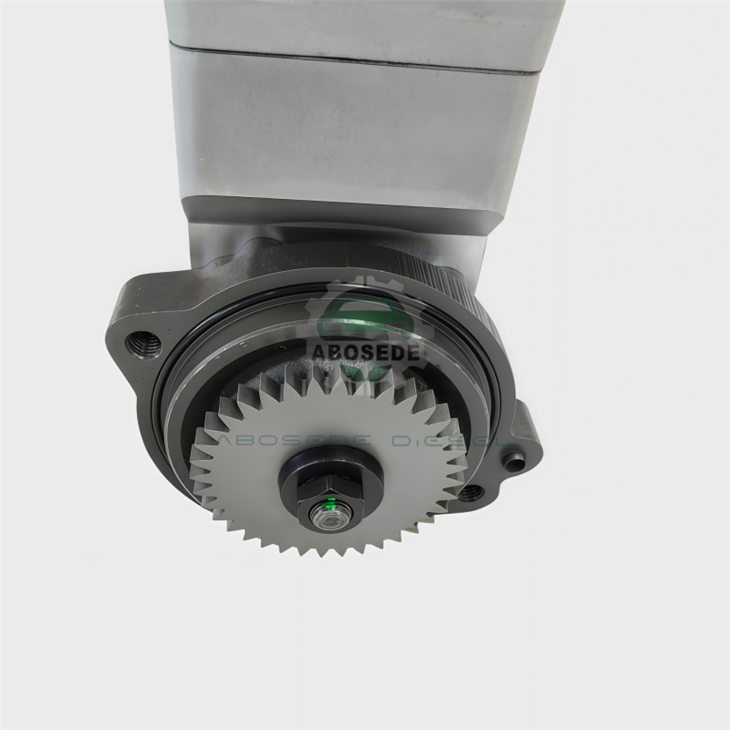

319-0680 | CAT C7 HEUI High-Flow Actuation Pump — Small Flange, 36-Tooth Gear, No Transfer Pump

Q1: The 319-0680 is described as "high flow" - does installing it on an older C7 build year (pre-2004) cause any issues?

Fitting a higher-flow pump outside its validated production-year window introduces a risk of over-pressurisation if the IAPCV and ECM calibration on the earlier engine are not matched to the 319-0680's output characteristics. The ECM on pre-2004 C7 platforms uses different IAPCV duty-cycle maps. While the physical pump may fit mechanically, actuation pressure overshoot can damage injector solenoid coils and plunger seals designed for lower peak pressure targets. Always verify production year and engine serial prefix against the 319-0680's validated application window before installation.

Q2: How does the 319-0680 differ from the 319-0677 - both cover C7 diesel but seem to appear in different situations?

The 319-0677 (cross: 10R-8899) and 319-0680 (cross: 20R-0820) serve overlapping C7 platforms but have different internal displacement calibrations and validated ECM pairing. The 319-0677 is associated with specific engine serial prefixes (KAL, SAP, WAX), while the 319-0680 carries a broader 2004–2007 C7 production coverage often described as fitting "most" C7 configurations. When both appear applicable, the engine serial number and build-date code are the definitive selection criteria - not the machine model alone.

Q3: The reman exchange unit 20R-0820 requires a core return. What is the minimum core condition acceptable for exchange credit?

Core return programmes for HEUI actuation pumps typically require that the returned core is complete - housing, gear, piston assembly, and solenoid present and not physically destroyed. Catastrophic failures (shattered housing, fractured gear, seized piston barrel) may result in core rejection or reduced credit. The core charge for 20R-0820 reman exchange is typically in the $1,250 range. Confirm the specific core condition requirements with the exchange supplier before shipping a heavily damaged unit to avoid credit forfeiture.

Q4: Can the 319-0680 HEUI pump be used to upgrade performance in a diesel engine that is used in high-altitude or high-temperature applications? The 319-0680's higher flow characteristic provides a natural benefit in high-altitude diesel operation, where lower air density and extended injection timing demands put greater pressure on the actuation circuit to maintain injection quality. However, the ECM's IAPCV calibration limits the maximum commanded actuation pressure regardless of pump capability - the pump cannot exceed what the ECM commands. For demanding altitude or ambient temperature applications, the real benefit is sustained pressure stability at the commanded level, which the 319-0680's higher volumetric reserve supports better than lower-flow variants.

Q5: My CAT ET shows "Desired Actuation Pressure" and "Actual Actuation Pressure" diverging by 200–300 psi at load. Is this definitely a pump issue?

A 200–300 psi gap between desired and actual IAP under load warrants investigation but is not an automatic pump condemnation. The IAPCV solenoid itself - a separate serviceable component - can produce identical symptoms if its coil resistance has drifted or its poppet valve is contaminated with oil debris. Test IAPCV solenoid coil resistance against specification and clean the poppet valve seat before replacing the full 319-0680 assembly. If solenoid testing confirms proper function and the pressure gap persists, pump output degradation is the likely root cause.
