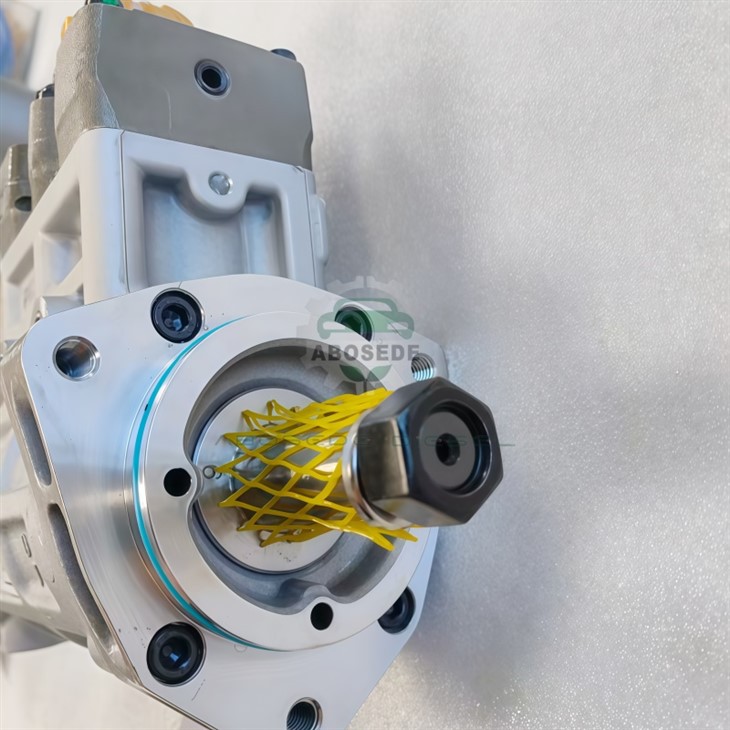

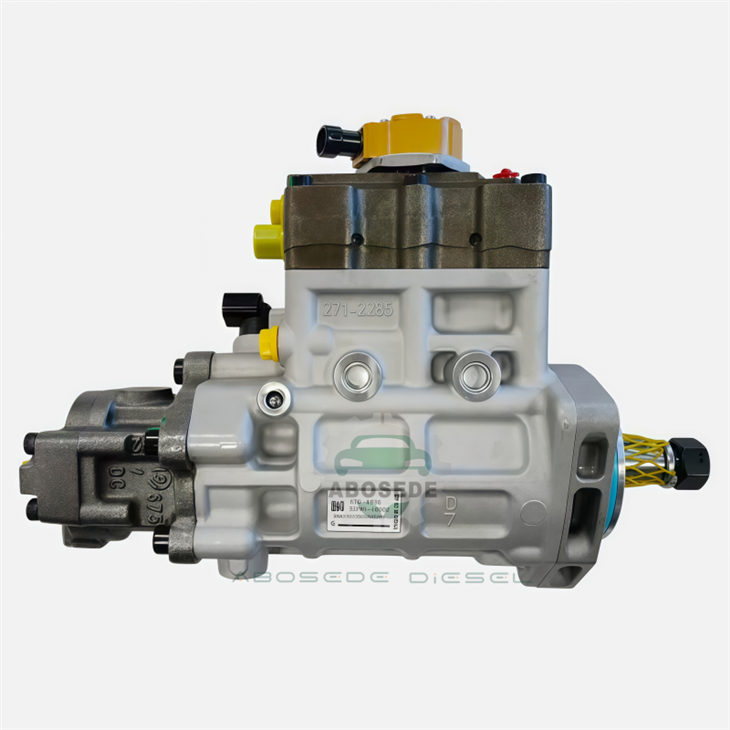

Powering The Titan: The Mechanical Integrity Of The C6.4 Diesel Fuel Pump 295-9126

When the earth needs moving, the heavy machinery at the center of the operation relies on a silent, high-pressure pulse. The 295-9126 Fuel Injection Pump, specifically engineered for the C6.4 engine platform, is the hydraulic anchor of the fuel system. It is a component defined by its ability to thrive in the "Red Zone"-where ambient heat, high-vibration, and relentless duty cycles converge. This is not just a pump; it is a precision-engineered pressure vessel designed to feed the Common Rail (CR) system with a level of consistency that ensures your excavator never misses a beat in the middle of a critical haul.





The C6.4 engine, a legendary power unit in the 20-ton excavator class (such as the 320D series), demands a fuel pump that can keep pace with its rapid load variations. The 295-9126 is the answer to this demand.

Pressure-on-Demand Logic: Unlike older mechanical pumps, the 295-9126 works in tandem with the engine's ECM to maintain a "ready-to-act" pressure state in the rail, allowing for instantaneous torque recovery.

Dual-Element Pumping: The internal twin-plunger design ensures a balanced flow, reducing the mechanical stress on the pump's drive shaft and extending the service life of the engine's timing gear train.

Contamination Resilience: Built with high-density forged housings, it is uniquely resistant to the micro-cracks that can occur when operating in extreme sub-zero or high-desert temperatures.





For the fleet manager or lead mechanic, the technical profile of the 295-9126 reveals why it is the industry standard for C6.4 overhauls.

Feature	Technical Specification
Model Reference	295-9126 (Alternate: 2959126)
Engine Compatibility	C6.4 ACERT™ Industrial / Excavator
Injection Architecture	High-Pressure Common Rail (HPCR)
Drive Interface	Tapered Shaft with Wood-ruff Key Security
Actuation	Electronic Suction Control Valve (SCV) Integrated
Max System Pressure	Calibrated for 1800+ Bar environments







The 295-9126 is built for the "Hard-Hat" industries. Its application is focused on equipment that defines modern infrastructure.

Excavation & Earthmoving: The primary driver for 320D and 320D L series excavators, providing the fuel stability needed for high-pressure hydraulic digging.

Material Handling: Powers industrial loaders that require smooth power transitions to avoid load-shift during transport.

Infrastructure Forestry: Found in harvesters and processors that operate far from service centers, where component reliability is the only safety net.





The 295-9126's primary mission is to prepare diesel fuel for Perfect Atomization. In the C6.4 Common Rail system, the pump's efficiency directly dictates the fuel droplet size at the injector tip. By maintaining a razor-sharp pressure threshold, this pump ensures:

Lower Fuel Consumption: Better burn quality means less fuel is wasted as exhaust heat.

Reduced NOx Output: Precise pressure control helps manage the peak combustion temperature.

Engine Longevity: Uniform pressure prevents "surging," which can lead to premature wear on the engine's main bearings.





Q1: What is the relationship between the SCV (Suction Control Valve) and the 295-9126 pump? The SCV is the "brain" on the pump's side. It regulates the amount of fuel entering the high-pressure plungers. If your C6.4 engine is hunting at idle or losing power under load, the SCV on your 295-9126 may be clogged or worn, even if the pump's mechanical plungers are still healthy.

Q2: Can air in the fuel system damage the 295-9126? Yes, severely. Common Rail pumps use diesel fuel for internal lubrication and cooling. Air pockets cause "dry friction," which can lead to the plungers seizing or metal shavings being sent downstream into the expensive injectors. Always prime the system thoroughly after a filter change.

Q3: How do I identify a genuine 295-9126 versus a low-quality counterfeit? Look for the quality of the casting and the precision of the port threads. Genuine units feature laser-etched serial numbers and specialized anti-corrosion coatings. Counterfeits often have "rough" casting marks and may lack the specific metallurgical hardness required for 1800 Bar operation.

Q4: Is it necessary to recalibrate the ECM after installing a new 295-9126? While the pump is a mechanical mover, it is highly recommended to perform a "Fuel System Reset" via the diagnostic software. This allows the ECM to learn the flow characteristics of the new pump and optimize the Suction Control Valve's duty cycle.

Q5: What role does fuel temperature play in pump performance? Common Rail systems generate significant heat through fuel compression. If the fuel return cooler is blocked, the 295-9126 will be forced to compress hot, "thin" fuel, which reduces its lubricating properties and can lead to premature internal wear.
