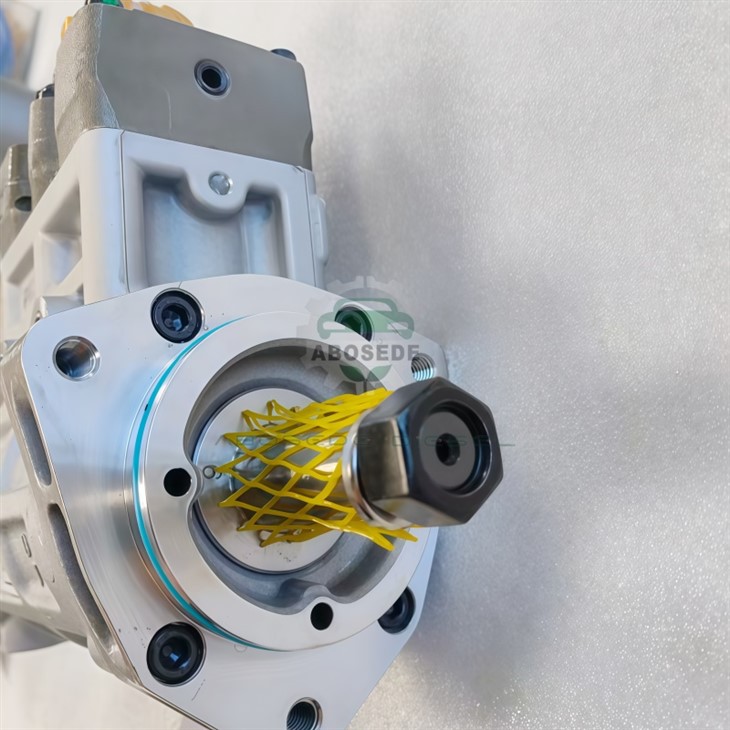

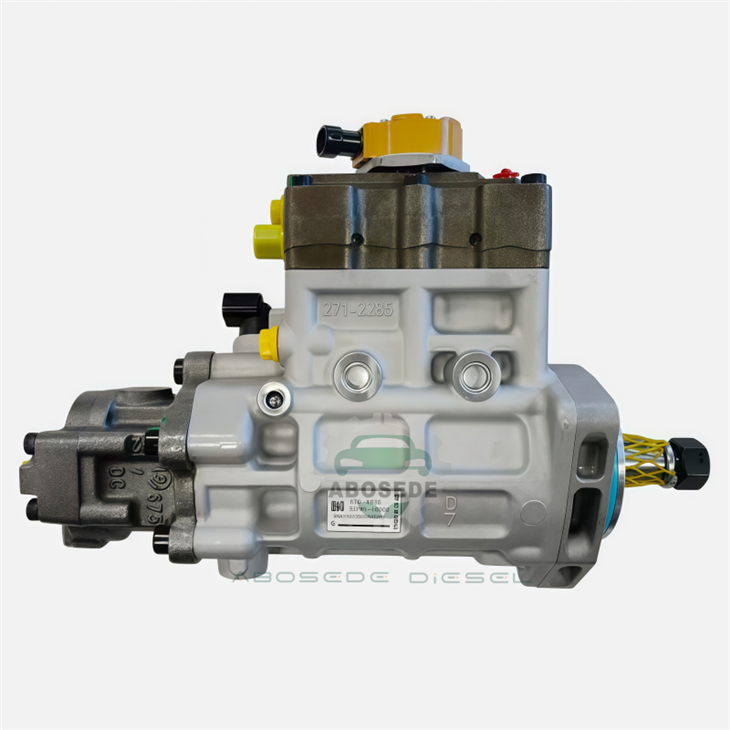

Beyond The Pressure: Redefining Performance With The C6.4 Diesel Pump (32F61-10302)

In the high-stakes world of heavy-duty excavation, your engine's heart isn't just about moving fuel-it's about managing energy under extreme duress. The C6.4 High-Pressure Common Rail (HPCR) Pump, part number 32F61-10302, is far more than a replacement part. It is a precision-engineered pulse center designed to restore the factory-gate vitality of your Caterpillar 320D series machinery.

While many distributors focus solely on "fitment," we look at fluid dynamics and thermal resilience. The 32F61-10302 is the definitive answer to the common rail system's greatest enemies: cavitation, pressure drops, and fuel-grade inconsistency.





The C6.4 pump operates in a regime where tolerances are measured in microns. This isn't just a mechanical assembly; it's a calibrated instrument.

Specification Category	Technical Data / Feature
Primary OEM Part No.	32F61-10302 (Cross-ref: 326-4635, 295-9127)
Engine Compatibility	Caterpillar C6.4 ACERT™ Technology
Primary Application	CAT 320D, 320D L, 320D GC, 321D LCR Excavators
System Architecture	High-Pressure Common Rail (HPCR)
Peak Injection Pressure	Optimized for up to 180-200 MPa (1800-2000 Bar)
Surface Treatment	DLC (Diamond-Like Carbon) Coated internal plungers





The "Zero-Lag" Internal Metering

The 32F61-10302 features an advanced Fuel Control Actuator (FCA). Unlike standard pumps that suffer from "mechanical hesitation" during rapid load changes, this pump synchronizes with the ECM (Engine Control Module) in milliseconds. This ensures that when your operator pulls the joystick for a heavy lift, the fuel pressure is already there, preventing the dreaded "black smoke" stall.

 Superior Cavitation Resistance

One of the silent killers of C6.4 engines is hydrodynamic cavitation-micro-bubbles that implode and pit the metal surfaces. Our 32F61-10302 utilizes high-grade alloy steel with enhanced surface density to withstand these microscopic "explosions," extending the service life by up to 35% compared to generic alternatives.





Modern fuel isn't what it used to be. The internal seals and plungers of this unit are specifically tested against the lower lubricity of Ultra-Low Sulphur Diesel (ULSD). The DLC-coated components provide a self-lubricating barrier, reducing friction even when fuel quality is suboptimal.





The 32F61-10302 sits at the apex of the fuel circuit. It takes low-pressure fuel from the lift pump and compresses it into the common rail.

Heat Dissipation: The pump housing is designed with an increased surface area to act as a heat sink, preventing the fuel from reaching "critical cook" temperatures which can damage injectors.

Volumetric Efficiency: By optimizing the stroke of the internal pistons, this pump achieves a higher "fill rate," ensuring stable rail pressure even at high RPMs.





Q1: My 320D is throwing code "Low Rail Pressure" (E096). Is the pump definitely the culprit?

A: Not always, but it's the primary suspect. Before replacing the 32F61-10302, check your fuel filters and the pressure relief valve. If the "Actual vs. Desired" pressure gap widens under load, your pump's internal plungers likely have internal leakage.

Q2: Can I install a 32F61-10302 myself or does it need "coding"?

A: While the pump itself is a mechanical component, the system is highly sensitive. After installation, we recommend an "FCA Adaptation" or "Pump Learning" via a diagnostic tool to ensure the ECM recognizes the new flow characteristics.

Q3: How does this pump handle contaminated fuel?

A: No high-pressure pump likes water or dirt. However, the 32F61-10302 includes a hardened inlet seat to prevent catastrophic failure from minor debris. We always recommend replacing the primary and secondary filters simultaneously with the pump.

Q4: Is there a difference between the 32F61-10302 and the 326-4635?

A: These are often interchangeable depending on the specific engine serial number prefix. The 32F61-10302 is the latest refined iteration, featuring updated internal valve geometry for better idle stability.

Q5: What is the most common cause of premature failure in these pumps?

A: Heat and "Dry Cranking." Never run your 320D out of fuel; the pump relies on diesel for cooling and lubrication. Running dry can cause internal scuffing within seconds.
