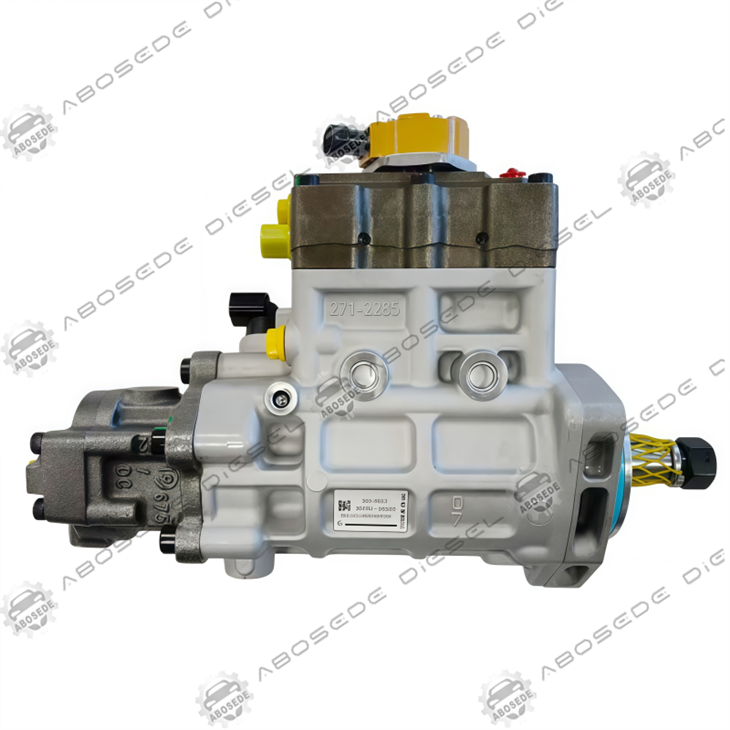

Resilience in Every Stroke: Unveiling The Engineering Behind The 32F61-10301 C6.4 Fuel Pump

When your Caterpillar fleet faces the relentless demands of a high-intensity job site, the margin between "operational" and "optimized" lies in the fuel system's integrity. The 32F61-10301 High-Pressure Fuel Pump is not merely a component; it is the fundamental architect of combustion efficiency for the C6.4 ACERT™ engine series.

While many view the fuel pump as a simple delivery mechanism, the 32F61-10301 functions as a high-frequency hydraulic pulse generator. It is designed to overcome the physical limitations of traditional diesel delivery, transitioning your 320D series excavator into a machine defined by surgical precision and reduced thermal waste.





Understanding the 32F61-10301 requires a look at the data that drives its reputation. This unit is calibrated to meet the exact volumetric requirements of the 6.4-liter displacement engine.

Attribute	Technical Specification
Model Designation	C6.4 HPCR (High-Pressure Common Rail)
OEM Reference	32F61-10301
Core Compatibility	CAT 320D, 320D L, 323D, 320D FM, 320D RR
Input Drive	Gear-driven with reinforced eccentric cam
Sealing Technology	Multi-layer Viton® high-temp resistance
Flow Modulation	Solenoid-controlled Suction Control Valve (SCV)





Ⅰ. Micro-Tolerance Plunger Assembly

The soul of the 32F61-10301 is its plunger set. Unlike standard aftermarket alternatives, these plungers undergo a Cryogenic Hardening Process. This molecular-level treatment ensures that the metal resists the microscopic "sandblasting" effect of low-quality fuel particles, maintaining high-pressure seals long after standard pumps begin to bleed internal pressure.

Ⅱ. Integrated Thermal Management

Common rail systems generate immense heat due to the friction of compressing diesel to over 1,800 bar. This pump features a specialized Cast-Aluminum Housing with Heat Dissipation Fins, effectively lowering the fuel's return temperature. By keeping the fuel cooler, the 32F61-10301 protects the delicate piezo-actuators in your injectors from heat-induced failure.

Ⅲ. Advanced SCV (Suction Control Valve) Response

The "brain" of the pump is the solenoid valve. The 32F61-10301 utilizes a high-flux magnetic coil that provides a faster response time to ECM signals. This results in Eliminating Idle Surge and ensuring that rail pressure remains rock-solid even when the excavator transitions from idle to full hydraulic load in under a second.





While primarily recognized for the CAT 320D, the 32F61-10301 is the backbone of the C6.4 engine platform used in diverse industrial sectors:

Earthmoving: Sustaining breakout force in 20-25 ton excavators.

Forestry: Providing the steady torque required for log loaders and harvesters.

Infrastructure: Powering stationary generators and material handlers where constant RPM stability is non-negotiable.





Waiting for a total engine stall is costly. Proactive fleet managers look for these "Silent Warnings" that the 32F61-10301 is reaching the end of its duty cycle:

Extended Cranking Time: A sign the pump can no longer build "start-up pressure" quickly.

Metallic Debris in Filters: Indication of internal cam or roller wear.

Limp Mode (Code P0087/P0088): Clear signals of rail pressure deviation.





Q1: Does the 32F61-10301 require a "break-in" period after installation?

A: There is no traditional "break-in," but "Priming" is critical. You must never attempt to start the engine dry. Use a hand primer or electric pump to ensure the 32F61-10301 is fully submerged in diesel before the first crank to prevent "galling" of the dry plungers.

Q2: Can I swap a 32F61-10301 with a 32F61-10302?

A: Generally, yes, as they are part of the same evolution family. However, always verify the Software Version of your ECM. Some later pump revisions require a minor software flash to calibrate the Suction Control Valve current for perfect idling.

Q3: How does "Air in the System" specifically damage this pump?

A: Air is compressible; diesel is not. When air pockets hit the high-pressure chamber of the 32F61-10301, the sudden change in resistance causes "hammering" on the pump's drive shaft and rollers, which can shatter ceramic or hardened steel components instantly.

Q4: Is it better to repair or replace a 32F61-10301?

A: Given the tolerances of 2-3 microns, field repairs are rarely successful. Dust from a standard workshop is enough to ruin the pump. For critical machinery, a factory-tested new or professionally remanufactured unit is the only way to guarantee 10,000+ hour reliability.

Q5: Will this pump improve my fuel economy?

A: Indirectly, yes. By restoring the precise pressure required for the injectors to atomize fuel into a fine mist (rather than heavy droplets), the 32F61-10301 ensures more complete combustion and less soot buildup in the DPF/exhaust system.
