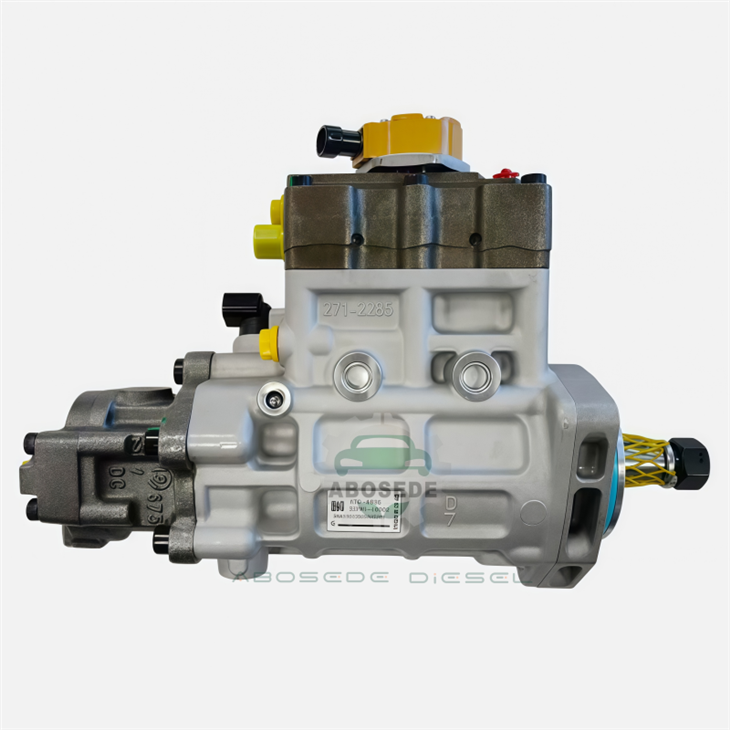

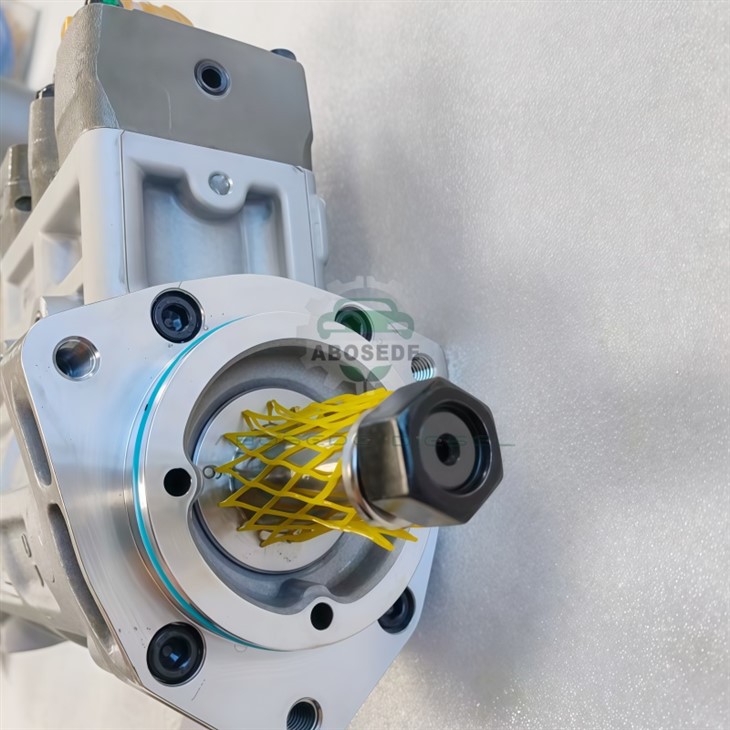

Mastering High-Intensity Injection: The Core Power Of The C6.6 Pump (317-8021)

In the ecosystem of modern heavy machinery, the transition from raw fuel to refined energy is a high-stakes process. The C6.6 Fuel Injection Pump (Part Number: 317-8021) stands as the definitive high-pressure common rail (HPCR) heart for the Caterpillar C6.6 ACERT™ engine series. It is a component designed not just to deliver fuel, but to orchestrate combustion with millisecond accuracy.

For fleet owners and machine operators, the 317-8021 is the bridge between downtime and peak productivity. Whether driving a 924H Wheel Loader, a 320D Excavator, or a D6K Track-Type Tractor, this pump ensures that your fuel system remains resilient against the variable demands of the modern job site.





Success in the field starts with technical compatibility. The 317-8021 is engineered for a seamless fit across a vast array of vocational and industrial applications.

Technical Vector	Specification Detail
Primary OEM ID	317-8021 (CAT) / 2641A312 (Perkins)
Reman Exchange No.	10R-7660
Engine Architecture	C6.6 ACERT™ / Perkins 1106D-E66TA
Drive Interface	Heavy-duty timing gear synchronization
Control Logic	ECM-integrated Suction Control Valve (SCV)
Material Composition	High-density forged steel housing with corrosion-resistant coating





1. Volumetric Precision for ACERT™ Technology

The C6.6 engine relies on ACERT™ technology to balance power and emissions. The 317-8021 pump is the cornerstone of this balance. By maintaining an ultra-stable high-pressure reservoir in the common rail, it allows for multiple injection events per stroke. This "pilot-main-post" injection strategy reduces combustion noise and significantly lowers $NO_x$ emissions without sacrificing torque.

2. The Internal Armor: Plunger Longevity

In the world of diesel, fuel quality is often unpredictable. Our 317-8021 units feature internal plungers treated with specialized Surface Hardening and Micro-Polishing. This reduces the friction coefficient within the pump barrel, preventing the "scuffing" that typically occurs with ultra-low sulphur diesel (ULSD) or fuel with low lubricity.

3. Hydraulic Shock Dampening

Every time an injector fires, a pressure wave travels back toward the pump. The internal architecture of the 317-8021 includes integrated damping chambers. These act as hydraulic "shock absorbers," smoothing out pressure pulsations that would otherwise cause fatigue in the high-pressure lines and common rail sensors.





The 317-8021 is a master of versatility. It is currently deployed in some of the most critical machines across the globe:

Paving & Compaction: CS-56, CP-74, and CS-78B models, where constant vibration requires a pump with extreme mechanical stability.

Earthmoving: 320D L and 323D L Excavators, providing the high-flow rates needed for aggressive digging cycles.

Logistics & Lifting: 938H Wheel Loaders and IT38H Integrated Toolcarriers, ensuring smooth power delivery for delicate material handling.





Don't wait for a "Low Fuel Pressure" warning on your dashboard. To maximize the life of your 317-8021, follow these industry-best practices:

The 500-Hour Rule: Replace both primary and secondary fuel filters every 500 hours. A microscopic piece of debris can act like a bullet in a 2,000-bar environment.

Water Management: Always check your water separator daily. Water is non-compressible and will cause the pump's internal valves to shatter under pressure.

Thermal Monitoring: If you notice the pump housing is excessively hot, check the return lines for restrictions. Overheating is the #1 cause of solenoid failure on the 317-8021.





Q1: Can the 317-8021 be used interchangeably with Perkins 2641A312?

A: Yes. Since the CAT C6.6 and Perkins 1106D share the same base architecture, these part numbers are often cross-referenced. However, always ensure the mounting flange and gear teeth count match your specific engine build list (SML).

Q2: What is the most common failure mode for this pump in the field?

A: The "Sticking" Suction Control Valve (SCV). Fine contaminants can cause the valve to hang, leading to surging at idle or a complete loss of power under load. Regular use of a high-quality fuel conditioner can mitigate this.

Q3: Does this pump require electronic "coding" after installation?

A: While the pump is primarily mechanical, the ECM often needs to "re-learn" the fuel pump's volumetric efficiency. We recommend performing a "Fuel Pump Correction Factor" reset via a diagnostic tool to ensure perfect synchronization.

Q4: How do I know if my 317-8021 is failing or if it's just a bad injector?

A: Use a "Kill Test" on the injectors. If the rail pressure remains low even when individual injectors are isolated, the pump (317-8021) is likely unable to meet the flow demand.

Q5: Can I run Bio-Diesel (B20) with this pump?

A: The 317-8021 is compatible with B20 blends, provided the fuel meets ASTM D6751 standards. However, be aware that Bio-Diesel attracts more water; therefore, your filter change intervals should be shortened by 25%.
