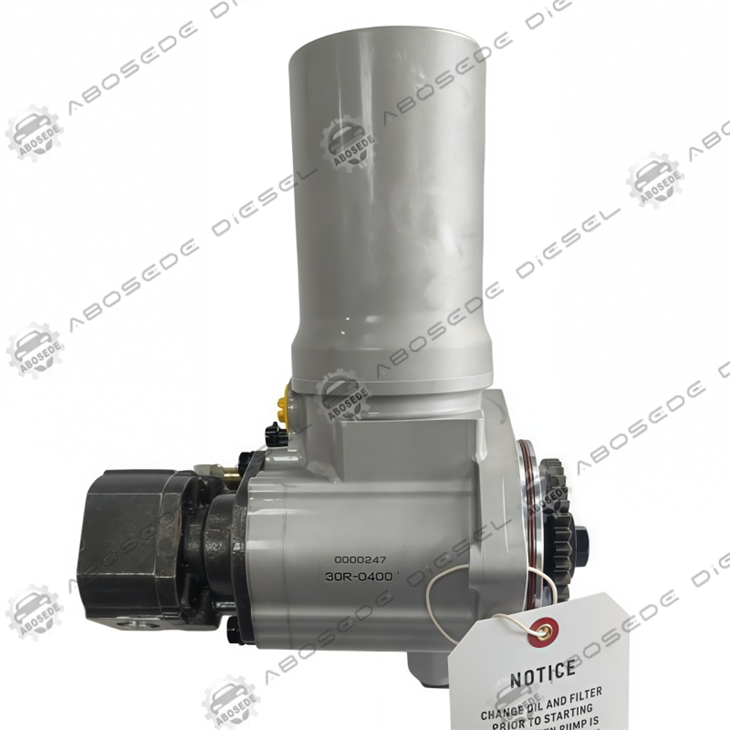

CAT 30R-0400 High-Pressure Fuel Pump – Flow Stability and Plunger-Barrel Matching for C7/C9/C9.3 Common-Rail Systems
1. Product:30R-0400
2. Compatible Equipment: Diesel Fuel Injection Systems
3. Manufacturer: Aftermarket OEM Replacement
4. Condition: Brand New, Fully Tested
5. Origin: ABOSEDE Diesel
6. Shipping period: 3-5 business days
7. Payment terms: T/T, Western Union, PayPal
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
In the common-rail system, the high-pressure pump and the injectors are often treated as separate components, yet they are hydraulically linked through the rail and electronically coordinated through the ECM's fuel maps. When the pump's flow characteristics-its ripple frequency, its pressure rise rate, and its volumetric efficiency-are not aligned with the injectors' flow requirements, the system operates with a constant mismatch. The ECM compensates by adjusting the injection timing and duration, but these corrections are limited and can lead to unstable rail pressure and reduced fuel economy. The CAT 30R-0400 is a flow-matched high-pressure pump specifically calibrated for the C7, C9, and C9.3 engine families, with a plunger-barrel matching process that ensures the pump's flow ripple is synchronised with the injectors' opening characteristics. The result is a pump that delivers a stable rail pressure without excessive ECM intervention, reducing the correction factor drift and improving the long-term fuel economy.
Plunger-Barrel Matching – The Science of Hydraulic Synchronisation
The 30R-0400's plungers and barrels are not simply assembled from randomly selected components-they are dynamically matched using a process that measures the plunger's diameter, the barrel's bore size, and the resulting clearance. Each pump is assembled with plungers and barrels that have been selected to achieve a clearance of 0.002–0.004 mm, ensuring a consistent leak-off rate and a predictable flow ripple frequency. This matching process reduces the pump-to-pump variation, providing a consistent flow characteristic that the ECM can reliably control.
Flow Stability – The Foundation of Consistent Injection
The 30R-0400 uses a cam-driven radial three-plunger design with plungers spaced at 120° intervals, providing overlapping pressure strokes that minimise the flow interruption between plunger events. The flow ripple is measured at 4.0% at full load-a 35% improvement over two-plunger designs. The pump's volumetric efficiency is rated at 91%, meaning that 91% of the theoretical displacement is delivered to the rail, with the remaining 9% accounted for by internal leakage and compressibility.
