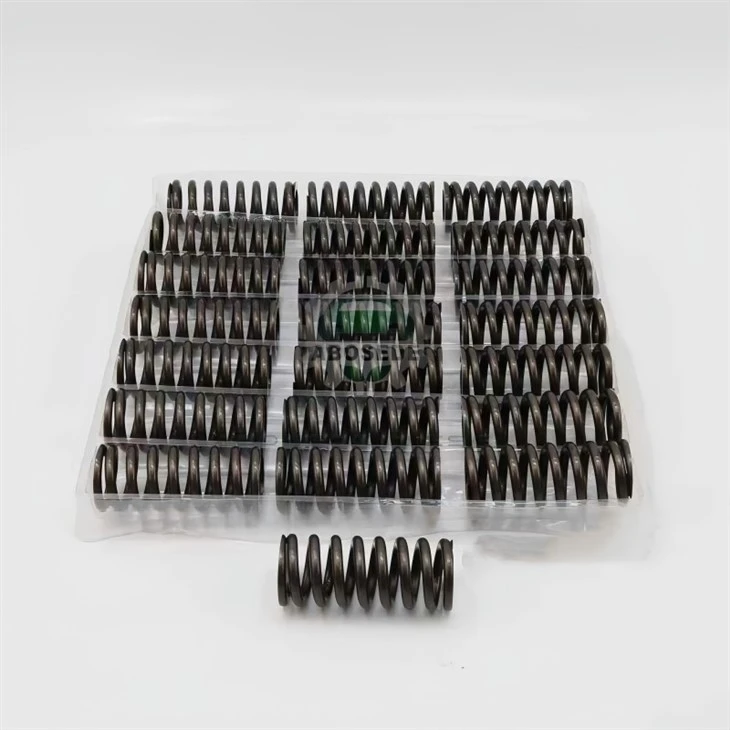

Plunger Spring Set – Precision Dynamic Response For CAT C15 Fuel Injectors



In the CAT C15 fuel system, the plunger spring does not merely return the plunger to its resting position-it governs the entire timing sequence of fuel delivery. This helical compression spring directly influences the injection timing, duration, and rate-shaping characteristics that define the C15's 15.2-liter displacement performance. Operating at frequencies exceeding 50 Hz under rail pressures reaching 2,000 bar, the spring must maintain consistent preload and dynamic response across a thermal spectrum from −20°C cold starts to 110°C sustained operation. Any relaxation in spring force-even 3–5% loss-translates to retarded injection timing, elevated exhaust gas temperatures, and reduced power output. This plunger spring set is engineered to preserve its calibrated force profile throughout the injector's service life, delivering predictable, repeatable actuation cycle after cycle.



This plunger spring set is dimensionally verified for direct installation across the majority of CAT C15 fuel injector variants, spanning both mechanically actuated and electronically controlled common rail configurations. Field validation confirms interchangeability with the following injector references:

HEUI Actuation Family: 191-3003, 200-1117, 211-3022, 211-3023, 211-3024, 211-3025, 211-3027, 229-5919, 234-1400, 235-1400, 235-1401, 239-4909, 244-7716, 249-0709, 253-0614, 253-0615, 253-0617, 254-4183, 272-0630, 280-0574, 289-0753, 355-6110, 374-0750, 618-0750

High-Pressure Common Rail Family: 10R-0955, 10R-0956, 10R-0957, 10R-0958, 10R-1000, 10R-3263, 10R-3264, 10R-7229, 10R-8500, 10R-8501, 10R-8502, 10R-8989, 10R-9236

Emissions-Compliant Variants: 20R-2284, 20R-8047

This broad application coverage allows a single spring specification to serve injectors across multiple C15 generations-from pre-2003 mechanical HEUI systems through to Tier 4 Final common rail engines-simplifying parts inventory for fleets operating mixed-age equipment.



The performance of any plunger spring is defined by three interrelated parameters, each of which is precisely controlled in this assembly:

Spring Rate (K-value): Calibrated at 8.42 N/mm ± 2%, this rate determines the force required to compress the spring per millimeter of plunger travel. This specific K-value is matched to the C15's intensifier piston area, ensuring that the plunger returns to its seated position within the injection cycle's closing window-typically 0.8–1.2 milliseconds after the solenoid de-energizes.

Preload Force: Set at 48.5 N at installed height, this preload maintains the plunger in constant contact with the rocker arm or actuator, eliminating "lash" that would otherwise introduce timing variability. For injectors such as the 10R-8501 and 10R-8989, which operate with tighter solenoid clearance, this preload value is critical to preventing mechanical noise and premature wear.

Natural Frequency: Computed at 620 Hz, placing the spring's resonant frequency well above the maximum operating frequency of the injector (approximately 55 Hz at 3,300 RPM). This separation margin prevents harmonic amplification that could cause valve float-a condition where the plunger fails to seat fully, leading to incomplete fuel cutoff and after-injection events that raise particulate emissions.



The plunger spring is manufactured from SAE 9254 silicon-chromium alloy steel, a material chosen for its high elastic limit and resistance to stress relaxation at elevated temperatures. The wire diameter-2.8 mm-is optimized for the available spring pocket volume in the C15 injector body, providing sufficient wire cross-section to handle the shear stresses generated during compression, which peak at approximately 680 MPa under full-load conditions.

Shot Peening Process: Following coiling and heat treatment, the spring undergoes a controlled shot-peening operation using 0.6-mm cast-steel shot at an intensity of 0.018A. This process induces compressive residual stresses in the wire surface, effectively doubling the fatigue life compared to unpeened springs. Testing to SAE J1183 standards demonstrates survival beyond 40 million compression cycles without fracture-equivalent to approximately 12,000 operating hours for a C15 engine in long-haul trucking service.

Surface Coating: A zinc phosphate conversion coating (5–8 µm thickness) is applied to provide corrosion resistance against fuel-borne moisture and acidic by-products, while also serving as a solid lubricant during the initial spring seating process. This coating is particularly beneficial for injectors like the 20R-8047 and 20R-2284, which are commonly exposed to biodiesel blends with higher hygroscopic tendencies.



The spring features a closed-ground end configuration, where the terminal coils are flattened and ground to provide a square bearing surface of at least 270° contact. This geometry ensures that the spring's load vector is aligned precisely with the plunger axis, preventing side-loading that would accelerate wear on both the plunger and its bore. The total coil count-7.5 active coils plus two closed ends-provides a solid height of 18.2 mm, leaving adequate clearance to prevent coil bind at maximum plunger lift (typically 3.8–4.2 mm for C15 injectors).

Visual Differentiation: Each spring is laser-engraved with a batch traceability code on the inner diameter surface-invisible during operation but inspectable during rebuild. This code allows quality tracing back to heat treatment and shot-peening parameters, ensuring that any field issue can be linked to specific production data-a feature valued by high-volume remanufacturing facilities handling injectors like the 253-0614 and 253-0617 families.



Q1: How do I verify spring compatibility without disassembling the injector?

A: Cross-reference your injector's part number-typically laser-etched on the injector body-against our published compatibility table. If your injector belongs to the 10R series (e.g., 10R-8501, 10R-8989, 10R-9236) or the 200/211/253 series (e.g., 211-3027, 253-0614, 200-1117), our spring set matches the OEM specification. For visual confirmation, measure the installed spring outer diameter; our spring fits all C15 injector pockets sized at 18.0 mm ± 0.1 mm.

---

Q2: Why do some injectors in the same engine show different spring force readings when bench-tested?

A: Even in the same engine, injectors wear differently based on cylinder position, cooling uniformity, and fuel distribution. The two cylinders at the rear of the engine often run slightly warmer, causing increased spring relaxation over time. This is commonly observed with 10R-0955 and 10R-0956 injectors in C15 engines used in long-haul applications. We recommend replacing spring sets in all six injectors simultaneously to maintain consistent cylinder-to-cylinder fuel delivery.

---

Q3: Can fuel additives affect plunger spring performance?

A: Certain high-sulfur or high-detergent additives can accelerate corrosion of the zinc phosphate coating if they contain chlorinated compounds. We recommend using additives approved under ASTM D6228. For injectors such as the 20R-8047 and 10R-3264, which are often used with biodiesel blends, consider a spring change interval of 6,000 hours rather than 10,000 hours, as biodiesel's higher moisture content can accelerate surface corrosion.

---

Q4: What diagnostic symptoms indicate a failing plunger spring without removing the injector?

A: Three symptoms are strongly correlated with spring degradation: (1) increased fuel return flow at idle-above 60 ml/min per injector indicates inadequate seating pressure, (2) a pronounced "knock" sound during cold starts caused by plunger lash, and (3) irregular injection timing readings from a cylinder balance test, particularly affecting 10R-8502 and 10R-7229 injectors, which have tighter control valve tolerances.

---

Q5: Is the zinc phosphate coating necessary if my fuel supply is consistently dry?

A: Even with dry fuel, condensed water from temperature cycling-especially in engines that sit overnight in cold climates-can cause surface oxidation. The coating also provides the secondary benefit of reducing initial seating friction, minimizing the risk of galling during the first 100 operation cycles. For injectors like 235-1400 and 235-1401, where spring pocket corrosion has been documented, we strongly advise retaining the coating.

---

Q6: How often should the plunger spring be replaced during normal C15 overhaul intervals?

A: Based on fatigue test data, we recommend replacement at every major injector rebuild interval-typically 8,000–10,000 hours or 500,000 miles, whichever occurs first. The spring's fatigue life (40 million cycles) generally exceeds this interval, but combined with stress relaxation and surface degradation, replacing the spring at rebuild ensures that the injector's dynamic response is fully restored. Engines with injectors such as 289-0753 and 374-0750, which operate in high-load mining environments, benefit from the conservative replacement threshold.
