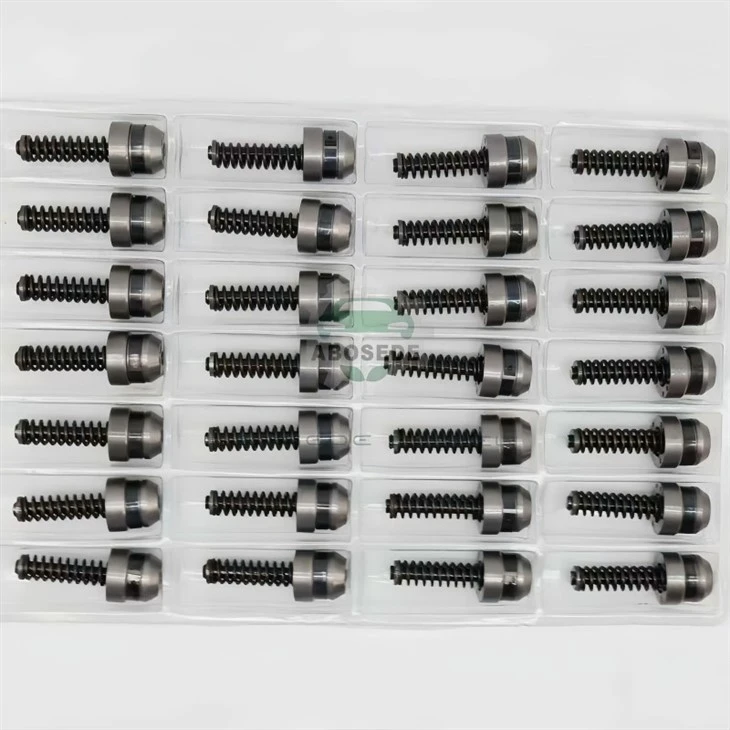

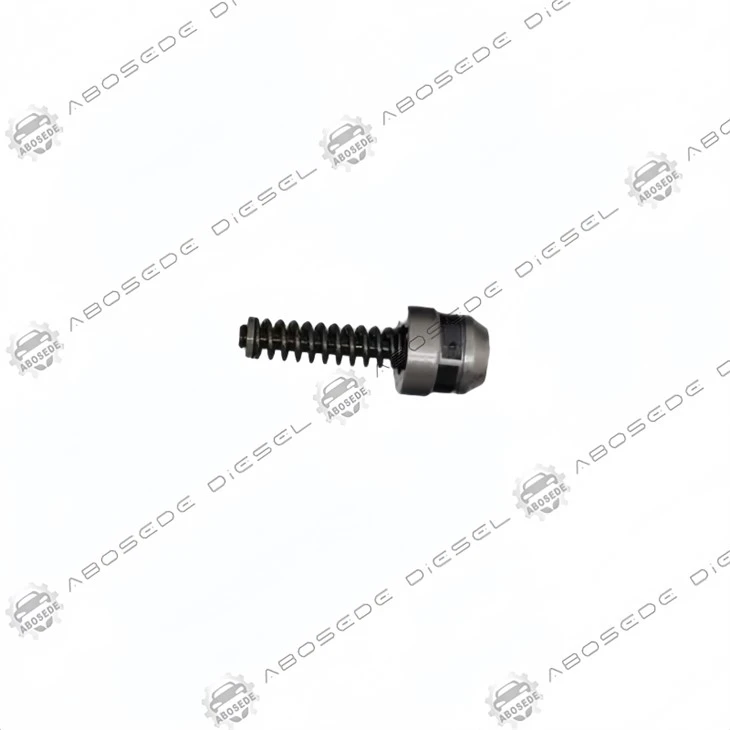

CAT C9 Plunger & Barrel Assembly – The Wear-Dependent Core Of HEUI Pressure Stability



Every HEUI pump has a performance envelope that shrinks gradually as the plunger-barrel clearances widen. On the CAT C9, nine individual plunger sets work in parallel, each with its own lapped fit and helix timing. The pump's ability to maintain actuation pressure during rapid throttle changes depends on the collective leakage of all nine sets. When one set exceeds its clearance limit, it creates a pressure ripple that the pump's compensation valve cannot fully smooth-leading to injector timing variations that are often misdiagnosed as sensor faults.

This guide focuses on the measurable wear limits, the significance of matching grades, and the practical trade-offs between standard, precision, and economy replacement options. The part numbers listed below have been cross-referenced against OEM catalogues and verified for dimensional interchangeability on the C9 high-pressure oil pump (also applicable to certain 3126E HEUI variants).



The following table groups compatible plunger-and-barrel assemblies by their OEM origin, aftermarket equivalent, and intended duty level:

OEM Production	Service/Aftermarket	Precision (10R-)	Heavy-Duty Coated
235-5261	254-4330	10R-7221	20R-8068
267-3361	254-4339	10R-7222	20R-8065
293-4072	267-9710	10R-7223	20R-8062
328-2573	293-4073	10R-9002	20R-8061
387-9436	328-2580	10R-2828	20R-8063
-	387-9437	10R-4764	20R-8060
-	573-4231	10R-4844	20R-1917
-	557-7637	-	20R-8064
-	577-7633	-	20R-8968
-	553-2592	-	-

Additional compatible numbers (all categories): 236-0957, 238-8092, 242-0857, 245-3516, 254-4340, 265-8106, 266-4446, 267-9717, 267-9722, 293-4071, 293-4074, 328-2574, 328-2576, 387-9431, 387-9432, 387-9433, 387-9434, 387-9438, 387-9439, 557-7634, 11R-1582, and 20R-8846.

Note: 20R-8968 and 20R-8064 are economy-grade variants with a plunger hardness of 58 HRC (versus 62 HRC on standard sets). They are suitable for intermittent duty but not recommended for continuous heavy haul or mining applications.

The radial clearance between the plunger and barrel is the single most influential variable for pump efficiency. The C9 specification calls for a clearance of 0.004 mm ±0.001 mm. Each 0.001 mm increase above the nominal value adds approximately 1.8 ml/min of internal leakage at 120 bar testing pressure. This leakage translates directly into reduced actuation pressure at low engine speeds, causing:

Hot start delay – when oil viscosity drops, leakage increases exponentially.

Pressure ripple at idle – the pump's flow control valve oscillates to compensate.

Reduced injection quantity at peak torque – the ECM demands more stroke, but the pump cannot deliver.

A simple field check (the "drop test") can indicate whether a set is still within serviceable limits: clean and oil the set, hold the plunger vertically, place the barrel over it, and time its descent. A fresh C9 set drops in 1.8–2.2 seconds. A reading below 1.2 seconds suggests the clearance has exceeded 0.007 mm-replace without hesitation.



Plunger: Vacuum-hardened HS6-5-2-5 steel, triple-tempered and sub-zero treated to achieve a retained austenite content below 2%. This ensures dimensional stability even after hundreds of thermal cycles.

Barrel: 17CrNiMo6 case-hardened steel with a nitrocarburised bore, finished by honing and roller-burnishing to a surface roughness of Ra ≤ 0.04 µm.

Matching: Each plunger and barrel are lapped together as a pair and marked with a unique code-typically a letter (A–D) and a two-digit number. These marks must be kept together. Swapping a plunger from one set into another barrel, even with the same nominal diameter, will alter the clearance because the lapping process is individual to each pair. Always replace the complete set.



Q1: Can I use a plunger from a 20R-8068 set with a barrel from a 235-5261 set if both appear identical?
No. The lapped fit is unique to each matched pair. Even if the nominal dimensions are the same, the actual clearances will differ-likely resulting in either a too-tight fit (seizure) or too-loose (excessive leakage). Always replace as a complete set.

Q2: How do I interpret the matching code stamped on the set?
The code usually consists of a letter (A, B, C, D) indicating the clearance class and a two-digit number representing the batch. The letter must match between plunger and barrel. If you have a set marked "A-07", both parts must carry that same code. Mismatched letters will not guarantee correct fit.

Q3: Is it worth paying extra for a 10R-precision set over a standard OEM replacement?
For engines operating in high-load, high-temperature environments (e.g., mining haulers, line-haul trucks), the 10R series offers a tighter clearance tolerance (±0.0005 mm vs ±0.001 mm) and a harder surface (62 HRC vs 60 HRC). This extends service life by approximately 20% and improves cold-start performance. For light-duty agricultural or occasional use, standard sets are adequate.

Q4: Can I replace just one plunger set if the pump has nine sets and only one is worn?
Yes, but you must use a set with the same matching code as the original to maintain balanced leakage across all pumping elements. Installing a set with a different clearance class will create an imbalance, causing pressure pulsations that the pump's pressure regulator may not fully dampen. If the original code is unavailable, it's safer to replace all nine sets or at least match by measuring the existing clearance and selecting a new set with the same nominal clearance.

Q5: What is the recommended storage condition for spare plunger sets?
Dip in a non-acidic rust-preventive oil (e.g., Shell Ensis), wrap in VPI paper, and seal in a polyethylene bag. Store in a climate-controlled environment (temperature 15–25°C, humidity < 50%). Avoid proximity to batteries or acids. Under these conditions, shelf life is indefinite.

Q6: My pump pressure is low only when the engine is hot. Does that always indicate plunger wear?
Not necessarily-but it is the most common cause. Hot oil has lower viscosity, so any clearance above the new spec will leak more. Before condemning the plunger sets, check the pressure regulator valve and the inlet screen. If those are clear, measure the clearance of one or two sets as a sample; if they exceed 0.006 mm, the entire set of nine likely needs replacement.
