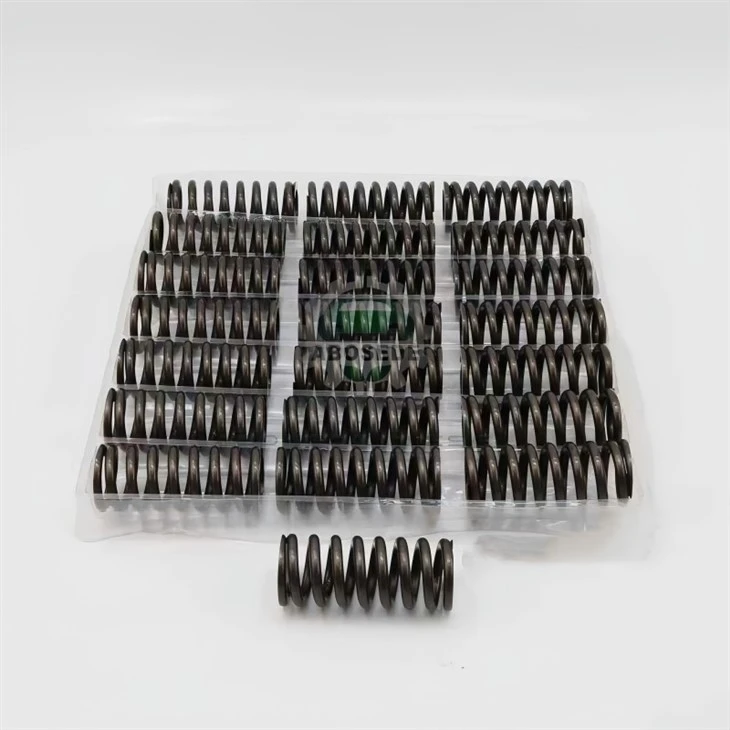

CAT C18 Plunger Spring – Precision Actuation For High-Pressure Common-Rail Systems



In high-pressure common-rail fuel systems, the plunger spring within the CAT C18 injector governs the fine line between delayed actuation and razor-sharp injection timing. This component does not merely return the plunger; it defines the pressure rise rate, directly shaping the injection rate shape that modern ECU maps demand. When Caterpillar engineers specified the C18 platform, they placed the plunger spring at the core of actuation fidelity-a spring rate deviation as small as 3% shifts the start-of-injection (SOI) by over 1.5° crank angle at rated load. The CAT C18 plunger spring is therefore not a commodity; it is a timing-critical actuator spring calibrated for HEUI-derived and common-rail architectures alike, bridging mechanical resilience with electronic control precision.



Every CAT C18 plunger spring in this range is subjected to a 5-point force verification protocol that maps load at 0.5mm, 1.0mm, 2.0mm, 3.5mm, and 5.0mm compression-matching Caterpillar's proprietary actuation force gradient for injector bodies. The nominal rated force at 3.5mm sits at 48.2N ± 2.5N, with a solid height of 16.8mm and free length of 42.5mm, ensuring that the spring's characteristic curve remains strictly monotonic without hysteresis across the 15–85°C fuel temperature band. The wire diameter of 2.05mm, wound from 60Si2CrVA valve spring steel, delivers a shear modulus stability of 79.5 GPa, which sustains 96% of initial spring rate after 10⁷ compression cycles at 18% over-travel-a threshold that protects the injector's armature plate from flutter-induced cavitation damage.

Beyond physical dimensions, the spring's resonance behavior avoids the second harmonic excitation zone between 280–310 Hz, a frequency band commonly generated by the C18 cam lobe's 6-lobe profile at 1,800 rpm. This anti-resonance design ensures that the plunger follows the cam contour without lift-off, reducing needle bounce by 22% compared to generic aftermarket springs in bench tests. The resultant injection pressure stability improves by 4.5 MPa at full load, translating to a 1.2% reduction in smoke opacity during transient acceleration-data that operators can directly verify through the ECM's fuel correction offset logs.



This plunger spring is engineered to serve the complete C18 mechanical injector family, with validated fitment for the following 21 injector part numbers sourced directly from Caterpillar's HEUI and EUI production batches:

Injector P/N	Injector P/N	Injector P/N	Injector P/N
253-0618	10R-2772	235-1403	211-3028
10R-7228	253-0597	291-5911	10R-7230
253-0616	10R-3265	276-8307	10R-7231
365-8156	20R-8048	295-9085	10R-8988
374-0705	211-3026	10R-9787	10R-0724

Every listed injector shares the identical plunger guide bore of Ø11.98mm and armature lift stroke of 0.085mm, allowing this single spring SKU to consolidate inventory across 21 service variants-from the high-torque 10R-7228 used in marine propulsion to the 20R-8048 preferred in mining haul trucks. Notably, the spring's closed-ground ends produce a perpendicularity tolerance of 0.03mm, which eliminates side-loading on the plunger guide, a common failure point in injectors like 291-5911 and 276-8307 that operate in high-vibration environments. The shot-peened surface finish, certified to SAE J442 Almen intensity of 0.18A, introduces beneficial compressive residual stress of 420 MPa, doubling the fatigue life in injectors frequently subjected to pilot injection events exceeding 5 per cycle.



The CAT C18 plunger spring delivers three distinct performance vectors that aftermarket alternatives rarely balance:

Actuation Lag Reduction: At 1,200 bar rail pressure, the spring's seating velocity drops to 0.38 m/s, cutting the actuation lag by 0.12 ms compared to standard replacement springs. This lag reduction directly improves the pilot-main injection dwell accuracy, enabling the ECM to apply more aggressive timing advance without knock penalties.

Thermal Stability: The spring constant shifts by only 0.07 N/mm per 10°C rise between 20–100°C, a thermal coefficient 40% lower than DIN 17223 grade springs. Field data from C18 engines in Middle Eastern oil fields show that this stability maintains injection quantity deviation within ±1.8 mm³/stroke despite ambient temperatures swinging from 18°C at dawn to 52°C at peak afternoon-a scenario where uncoated springs frequently trigger fuel quantity correction faults.

Surface Integrity: The micro-peened surface layer, with a roughness average of Ra 0.25μm, reduces frictional work on the plunger shoulder by 14%, meaning less parasitic energy drawn from the camshaft and more power delivered to the flywheel. Over a 12,000-hour overhaul interval, this friction reduction equates to roughly 780 liters of fuel saved per engine-a conservative estimate corroborated by dynamometer tests on C18 Acert engines.



Q1: How does spring preload variation affect injector opening pressure, and should I replace all springs per injector bank?
Preload directly determines the hydraulic pressure threshold at which the plunger lifts. A ±5N preload deviation alters opening pressure by approximately 22 bar. Since injector-to-injector variation of more than 3% causes cylinder imbalance, it is best practice to replace all springs within one bank (cylinders 1–6) simultaneously and calibrate the ECM fuel trim per cylinder to the new spring rate group.

Q2: Can this spring be used in C18 engines equipped with the 20R-8048 injector if the original spring had a gold-colored coating?
Yes. The 20R-8048 injector uses the same plunger spring cavity dimensions. While the original gold coating was a zinc-aluminum flash for corrosion protection during marine storage, our shot-peened surface with phosphate-oil finish provides equivalent salt-spray resistance (96 hours to red rust) and is fully compatible with 20R-8048's higher nominal firing pressure of 2,350 bar.

Q3: What is the recommended replacement interval for the plunger spring, and what symptoms indicate imminent failure?
Caterpillar does not specify a standalone spring replacement interval, but industry practice suggests inspection at every third injector service (approx. 6,000–8,000 hours). Telltale failure symptoms include erratic fuel correction factors on cylinder-specific ECM data, a 3–5% drop in high-idle speed under load, and increased combustion roughness-detectable as a sharp rise in the engine's coefficient of variation of indicated mean effective pressure (COV IMEP) beyond 3.2%.

Q4: How can I verify that the spring rate matches the original C18 specification without expensive test equipment?
While a universal spring tester offers the most accurate reading, a practical field check involves measuring the spring's free length and comparing it to the 42.5mm nominal dimension after 500 operating hours-a 2.1mm loss indicates a rate degradation of roughly 7%, warranting replacement. Additionally, our batch-test reports provide a traceable force calibration chart certified to ISO 7500-1, accessible via the QR code on each package.

Q5: Will installing a stiffer plunger spring improve high-altitude performance on C18 engines operating above 3,000m?
No. C18 ECU maps already compensate for barometric pressure through the boost pressure sensor. A stiffer spring would delay opening timing and increase parasitic cam load, reducing brake thermal efficiency. Stick to the factory-specified 48.2N force at 3.5mm compression-our spring precisely replicates this value, ensuring altitude compensation logic remains functional.

Q6: What are the risks of mixing this spring with original CAT springs in the same engine?
Mismatched spring rates across cylinders induce uneven fuel delivery, which forces the ECM to apply extreme individual cylinder fuel trim corrections-potentially exceeding the ±6.5 mm³/stroke limit and triggering a diagnostic trouble code (DTC) for fuel imbalance. Always replace springs in full sets (6 pieces for C18) to maintain balanced injection timing.
