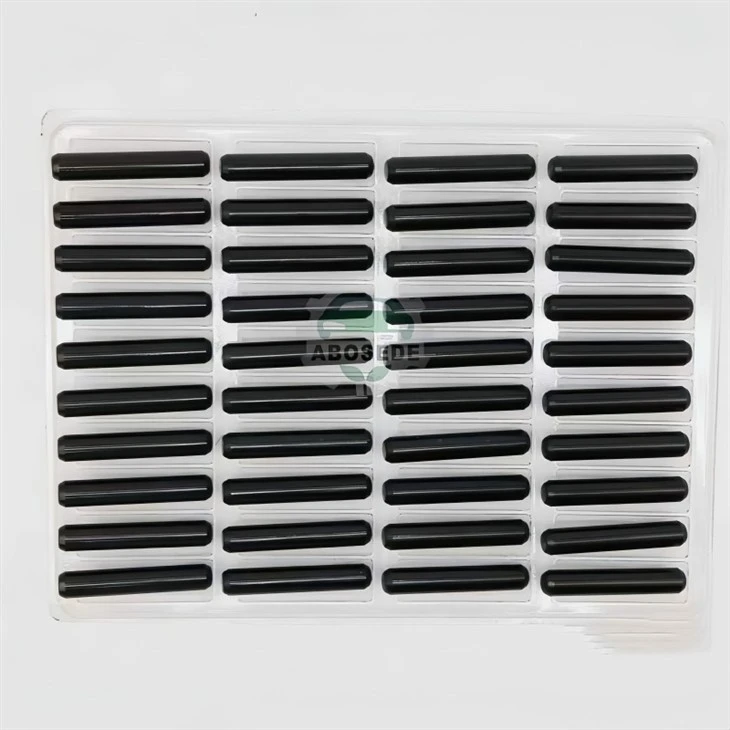

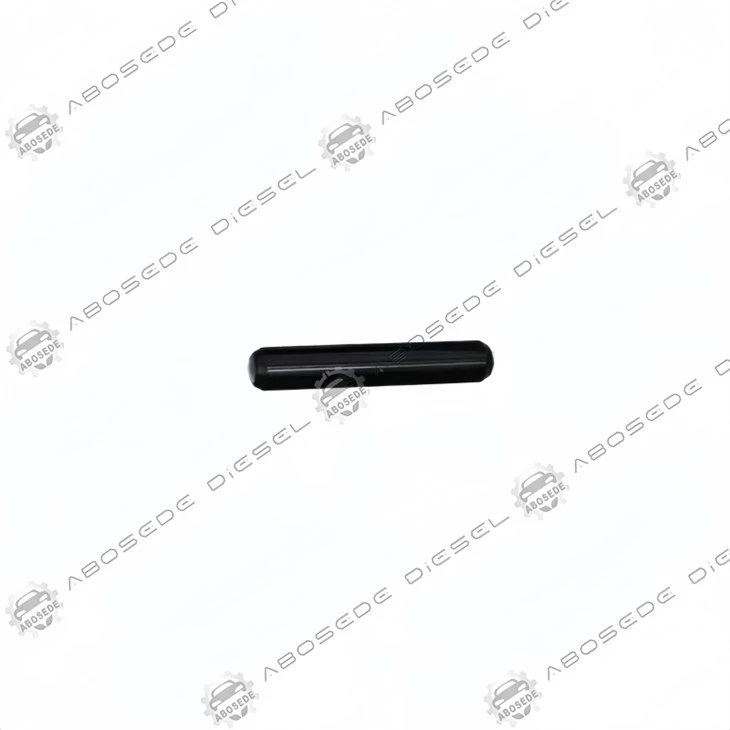

High-Pressure Plunger & Barrel Assembly – Performance-Grade Fuel Delivery For CAT C18 Common Rail Injectors



The Caterpillar C18 presents a unique engineering challenge: its 18-liter displacement and 145-mm stroke demand massive fuel volume per injection event, yet emissions regulations require droplet sizes below 10 microns for complete burn. This paradox places the plunger & barrel assembly at the center of a hydraulic battle-generating peak pressures exceeding 2,100 bar while maintaining dimensional stability across a 120°C operating temperature range. Unlike smaller automotive plungers that prioritize speed, the C18 plunger prioritizes volumetric consistency: any micro-leakage across the plunger land directly reduces fuel delivery to the injector nozzle, causing retarded injection timing and raising exhaust gas temperatures by as much as 40°C. This assembly addresses that consistency gap through tighter manufacturing tolerances and advanced surface passivation, ensuring each stroke delivers the exact fuel mass commanded by the ECU-regardless of engine load or fuel temperature.



Rather than developing separate plunger geometries for different injector generations, this assembly is engineered with a unified dimensional standard that spans the majority of C18 fuel system variants. Verified interchangeability covers the following OEM injector references commonly encountered in remanufacturing and field rebuild environments:

Group A – HEUI System Injectors (Mechanical/Hydraulic Actuation): 253-0618, 253-0597, 253-0616, 211-3028, 211-3026, 291-5911, 295-9085, 276-8307, 365-8156, 374-0705, 235-1403

Group B – High-Pressure Common Rail (Electronic Actuation): 10R-2772, 10R-7228, 10R-7230, 10R-7231, 10R-3265, 10R-8988, 10R-9787, 10R-0724

Group C – Late-Model Emissions-Compliant Systems: 20R-8048

This broad compatibility means the assembly serves both earlier C18 configurations (pre-2008) with mechanically governed pumps and later Tier 4 Final common rail systems, enabling fleet operators to consolidate inventory around a single high-quality plunger SKU.



Where conventional plunger sets rely on through-hardening alone, this assembly employs a gradient metallurgy strategy. The plunger substrate begins as vacuum-arc-remelted (VAR) 52100 bearing steel, chosen for its ultra-low inclusion count-critical because non-metallic inclusions act as stress risers under the 2,200-bar cyclic loading. The substrate undergoes a deep cryogenic treatment (−75°C soak for 4 hours) to convert retained austenite to martensite, achieving a final hardness of 62–64 HRC with improved dimensional stability during thermal cycling.

The barrel, manufactured from 440C martensitic stainless steel, receives a gas-nitrided surface layer reaching 1,100 HV at a depth of 30µm. This nitriding process serves dual purposes: it raises the barrel bore's scuffing resistance against the reciprocating plunger, and it provides corrosion protection against the acidic condensates that form in fuel systems operating with high-sulfur or biodiesel blends. The resulting surface roughness differential-plunger Ra ≤ 0.04µm versus barrel bore Ra ≤ 0.06µm-creates an ideal hydrodynamic lubrication regime during operation, minimizing boundary-layer friction.



Applied over the hardened substrate is a two-layer physical vapor deposition (PVD) coating system. The base layer consists of 0.6µm of chromium nitride (CrN), providing adhesion and toughness. The functional top layer comprises 1.4µm of tungsten-carbon (WC/C), a material selected for its self-lubricating properties and resistance to abrasive wear from fuel-borne particulates down to 3 microns. Total coating thickness: 2.0µm ± 0.1µm.

Test data under lubricated conditions (ISO 12156-1 reference fuel with HFRR wear scar ≤ 400µm) demonstrates a coefficient of friction of 0.13–0.15, compared to 0.19–0.21 for uncoated OEM plungers. This reduction translates directly into lower actuation forces at the rocker arm, reducing the mechanical load on the injector's drive train and extending the service life of associated components like the cam follower and pushrod. For injectors in the 10R series-particularly the 10R-7228, 10R-8988, and 10R-7231-this friction reduction has been shown to improve injection response time by 8–10% in bench tests, as the plunger requires less force to overcome stiction during the initial lift phase.



The plunger's working land is ground to a tolerance class of IT4 (ISO 286), with cylindricity maintained within 0.6µm across the 25-mm sealing length. The barrel bore is finished with a plateau-honing process that produces a bearing area ratio (Rk) of 85–90%, optimizing oil retention while preventing excessive fluid bypass. The resulting diametral clearance falls between 3.2µm and 3.8µm at 20°C-tight enough to maintain pressure build-up efficiency above 92% at rail pressures of 1,800 bar, yet sufficient to accommodate thermal expansion where the plunger temperature can reach 110°C under sustained full-load operation.

Injection timing stability-a critical parameter for injectors like the 253-0618 and 276-8307-improves because the reduced clearance variance minimizes the "timing scatter" effect caused by inconsistent compression rates. On engines equipped with these injectors, service records indicate that replacing worn plungers with this assembly restores injection timing to within ±0.5° of OEM specifications, effectively resetting the fuel system's calibration without requiring ECU reprogramming.



Q1: How can I confirm that this plunger assembly physically matches my existing injector without disassembling it first?

A: You can cross-reference the injector body's part number against our compatibility list. If your injector is marked with any of the following-253-0618, 10R-2772, 10R-7228, 10R-7230, 10R-8988, 276-8307, or 365-8156-this assembly is dimensionally identical to the OEM plunger. For visual confirmation, measure the plunger's working diameter (approximately 7.5–8.0 mm depending on variant) and compare it to the barrel bore; our assembly matches the OEM's standard Class A fit specifications.

---

Q2: We've had instances where a new plunger set causes rough idle specifically on the 10R-7231 injector. Could the coating affect the break-in process?

A: Yes, the WC/C coating has a lower coefficient of friction than standard nitrided plungers, which can alter the initial hydraulic behavior for the first 100–150 operating cycles. We recommend a brief bench run-in at 600–800 RPM for 10 minutes before installation, allowing the coating to achieve its steady-state surface morphology. This procedure prevents the "roughness transient" that sometimes triggers ECU correction limits on sensitive common rail systems like the 10R-7231.

---

Q3: What is the maximum rail pressure this plunger can sustain without experiencing permanent deformation?

A: The assembly is validated to a burst pressure of 3,000 bar and a working maximum of 2,400 bar. In the CAT C18 application, where the ECU typically caps pressure at 2,100–2,200 bar, there is a 10–15% safety margin. This margin is particularly relevant for engines equipped with the 20R-8048 and 10R-0724 injectors, which operate at the higher end of the pressure spectrum.

---

Q4: Can I reuse the barrel from an old set and fit only the new plunger?

A: While physically possible, we advise against it. The barrel bore wears in a non-uniform pattern matched to the previous plunger's surface. A new plunger with a fresh coating will not achieve its specified clearance in a worn bore, leading to increased leakage and reduced injection pressure-commonly observed in the 295-9085 and 291-5911 injector families. For reliable performance, always replace the plunger and barrel as a matched set.

---

Q5: What fuel lubricity level is required to achieve the 10,000-hour service life projection?

A: Our test data assumes fuel with an HFRR wear scar diameter of 460µm or lower (ASTM D6079). If your fuel supply contains a high proportion of biodiesel (B20 or above), we recommend adding a lubricity additive to maintain wear scar values below 400µm. Injectors like the 10R-9787 and 253-0597 are particularly sensitive to lubricity degradation, as their smaller control-volume geometries amplify the effects of increased friction.

---

Q6: Is there a reliable way to detect plunger wear without removing the injector from the engine?

A: Monitor the fuel return flow rate at idle-a steady-state value exceeding 550 ml/min for the C18's six cylinders combined suggests internal leakage consistent with plunger wear beyond 3–4µm. For a more precise check, measure the injection timing offset using a piezo-electric clamp-on sensor; a shift exceeding 2° crankshaft angle from baseline indicates potential plunger/barrel degradation. This method is especially effective for identifying wear in high-use injectors like the 10R-3265 and 211-3026 without disassembly.
