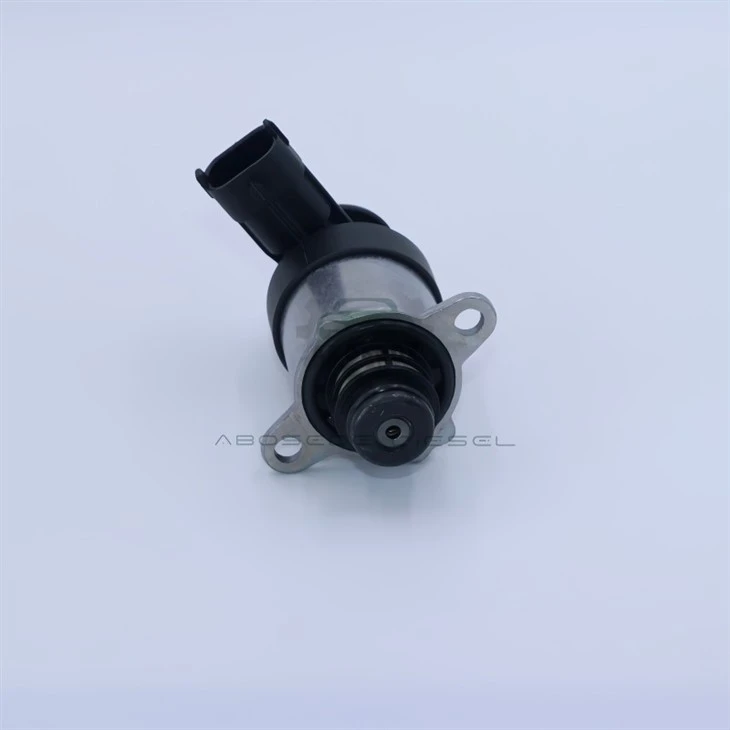

Bosch 0928400840 – The Metering Valve That Minimises Hysteresis For Repeatable Flow Curves

In a metering valve, the relationship between the command signal and the flow is not identical in both directions. When the duty cycle increases, the armature moves one way; when it decreases, the armature returns. The flow at a given duty cycle is slightly different in the increasing direction than in the decreasing direction - this difference is hysteresis. Hysteresis is a natural consequence of friction and magnetic remanence, but its magnitude is a critical determinant of the valve's repeatability. If the hysteresis is large, the flow curve is different each time the valve is cycled. The 0928400840 is engineered with a minimised hysteresis characteristic that ensures the flow curve is repeatable, regardless of the direction of the command. It is a valve that delivers the same flow at the same command, every time.

When the ECU increases the duty cycle, the armature moves toward the closed position, overcoming the static friction and the spring force. When the ECU decreases the duty cycle, the armature returns, aided by the spring force but opposed by the magnetic remanence. The path of the armature is not the same in both directions - the armature's position at a given duty cycle is slightly different when increasing than when decreasing. This difference is hysteresis, and it is typically 2-5 % of the stroke. The ECU's feedforward calculation assumes a single flow curve, not two separate curves. If the hysteresis is large, the flow is different from the assumed value, and the ECU must correct the error through feedback. The 0928400840 reduces the hysteresis to less than 1.5 % through a combination of a low‑friction armature coating and a magnetic circuit that has a low remanence.

The hysteresis is minimised through a combination of friction reduction and remanence control. The armature is coated with a DLC layer that reduces the coefficient of friction to 0.08 - lower than the standard 0.12‑0.15. The lower friction reduces the difference between the static and kinetic friction, which is a major contributor to hysteresis. The magnetic circuit is made from a material with a low remanence - the core retains less than 5 % of the magnetic flux after the current is switched off. The low remanence ensures that the magnetic force does not oppose the armature's return movement, reducing the hysteresis. The combination of the low‑friction coating and the low‑remanence core reduces the hysteresis from the typical 3‑5 % to less than 1.5 %.

The hysteresis can increase if the DLC coating wears through, or if the core material degrades and the remanence increases. A worn coating increases the friction difference, and the hysteresis increases. A degraded core material retains more flux, opposing the armature's return movement. The first symptom is often a repeatability error - the same command produces different flows at different times. The genuine 0928400840 uses a durable DLC coating and a core material that is designed to resist remanence drift, ensuring that the hysteresis remains low over the service life.

Installing the 0840 is similar to other CP4 valves - clean the mounting surface, replace the O‑ring and backup ring, torque the retaining nut to 23 Nm ± 2 Nm. However, there is a specific verification step: perform a repeatability test after installation. Command a duty cycle of 50 % from a cold start, record the rail pressure, and then repeat the test after the engine has warmed up - the pressure should be the same within ± 2 %. If the pressure is significantly different, the hysteresis may be larger than specified. The test is a simple functional check that can be performed with a diagnostic tool.

Q1: How can I tell if my valve's hysteresis has increased without removing it?
→ Command the same duty cycle twice (e.g., 50 %) and record the rail pressure. If the pressure is different between the two commands, the hysteresis may have increased. A well‑functioning 0840 will produce the same pressure each time.

Q2: Can I use the 0928400840 on a VW Touareg that originally used the 0827?
→ Yes, in most CP4.2 applications. The 0840 has the minimised hysteresis that is particularly valuable for repeatability, and it is a direct replacement for the 0827 in many applications. Always verify compatibility with the engine's calibration.

Q3: Why does my engine have a slight hesitation that occurs unpredictably?
→ This may be caused by hysteresis - the flow curve is different each time, and the ECU's feedforward calculation is sometimes correct and sometimes not. The 0840 is designed to minimise hysteresis and prevent this.

Q4: What is the most common cause of hysteresis increase in this valve?
→ Wear on the DLC coating - the friction increases, and the hysteresis increases. The 0840 uses a durable coating, but regular fuel filter changes are the most effective prevention.

Q5: I replaced the valve but the repeatability is still poor - is the valve defective?
→ Check the rail pressure sensor - a drifting sensor can cause the ECU to command different duty cycles, which will affect the repeatability. Also, check the voltage supply - a fluctuating voltage can cause the flow to change even if the duty cycle is the same.

Q6: Does the hysteresis change with the fuel temperature?
→ Yes, the fuel viscosity changes with temperature, which affects the friction and the hysteresis. The 0840 is designed to maintain the hysteresis across the full temperature range, but a small change is normal and is compensated by the ECU's adaptation.
