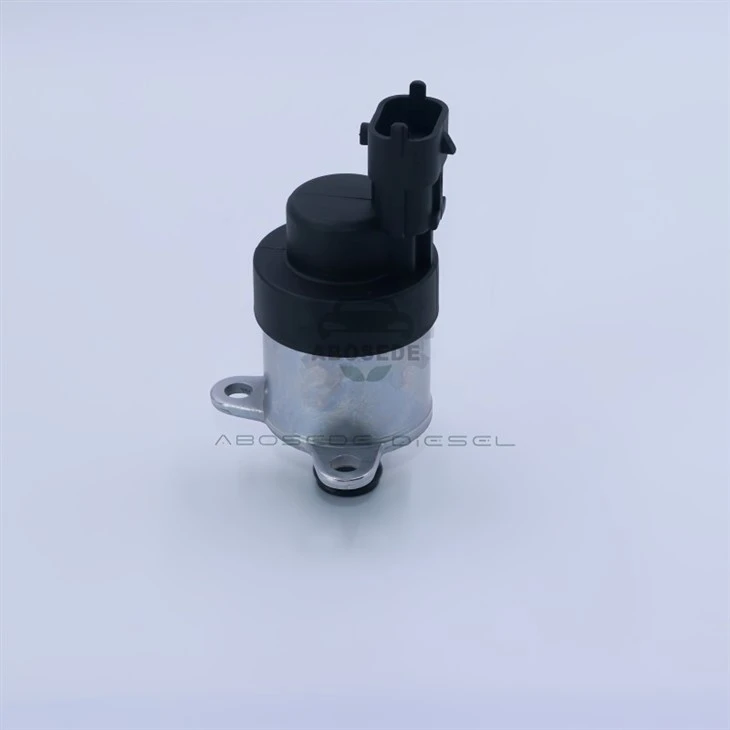

Bosch 0928400761 – The Metering Valve That Balances Hydraulic Forces Across The Pump Speed Range

A metering valve does not operate in isolation. It sits at the entrance of a high‑pressure pump whose pistons are moving faster at 4000 rpm than at idle – and that speed variation changes the pressure pulsation at the valve outlet. These pulsations create fluctuating hydraulic forces that act on the armature, trying to push it open or closed independent of the ECU's command. If the valve cannot resist these speed‑dependent forces, its effective flow gain changes with engine rpm, forcing the ECU to apply rpm‑based corrections that consume adaptive capacity. The 0928400761 is engineered with a hydraulic balance feature that cancels out these speed‑induced pressure forces, ensuring that the flow‑to‑duty relationship remains consistent from idle to full speed. It is a valve that stays accurate regardless of how fast the pump turns.

Inside the pump inlet port, the fuel is not flowing steadily – it is being drawn in pulses, each corresponding to a plunger downstroke. At low engine speeds, these pulses are widely spaced and the pressure at the valve outlet fluctuates gently. At high speeds, the pulses arrive faster and the average pressure at the valve face increases due to flow inertia. This changing pressure profile exerts a variable force on the armature, effectively adding or subtracting from the magnetic force generated by the solenoid. If the valve is not hydraulically balanced, this force changes with speed, causing the same duty cycle to deliver different flow at 800 rpm versus 3500 rpm. The 0928400761 incorporates a pressure‑balancing gallery that connects the upstream and downstream sides of the armature through a calibrated passage, equalising the forces on both ends of the moving element. The result is a valve whose flow characteristic shifts by less than 2.5 % across the entire engine speed band – a level of speed‑insensitivity that reduces the ECU's rpm‑dependent corrections by approximately 40 % compared to non‑balanced designs.

The balancing gallery is a precision‑drilled channel within the valve body that connects the inlet pressure zone to a chamber behind the armature. This channel creates a feedback path – when inlet pressure rises due to increased pump speed, the pressure behind the armature rises proportionally, pushing the armature in the opposite direction and cancelling out the force from the front face. The channel diameter and length are calibrated to provide the correct amount of pressure attenuation – enough to cancel the speed‑induced forces, but not so much that it slows the valve's response to the ECU's duty‑cycle commands. The 0928400761 uses a laser‑drilled orifice of 0.3 mm diameter in this gallery, a dimension that is critical to the balancing effect. This orifice is not user‑serviceable and cannot be cleaned – any attempt to do so will alter the calibration and destroy the valve's speed‑insensitive performance.

The hydraulic balance gallery is both the valve's strength and its vulnerability. Over time, if the fuel contains contaminants or water, the 0.3 mm orifice can become partially blocked, altering the balance characteristic and introducing a speed‑dependent flow error. The genuine 0928400761 uses a stainless steel orifice insert that resists corrosion and an upstream filter screen of 60 µm that prevents large particles from reaching the gallery. Additionally, the armature guide is coated with a diamond‑like carbon (DLC) layer that reduces wear debris generation, the primary source of orifice clogging. These two features – the corrosion‑resistant insert and the DLC coating – extend the balance performance well beyond 200,000 km, even in markets with variable fuel quality.

The most critical step in installing the 0928400761 is not the torque setting – it is the thorough cleaning of the pump mounting face and the inlet port. Any debris left on the mounting surface can fall into the valve inlet during installation and eventually lodge in the 0.3 mm balance orifice. Before fitting the new valve, use a lint‑free cloth and clean diesel to wipe the pump surface, and briefly flush the inlet port with filtered fuel. Install the new O‑ring and backup ring, lubricate them with diesel, and torque the retaining nut to 24 Nm ± 2 Nm. After installation, perform a full adaptation reset using your diagnostic tool – this allows the ECU to learn the valve's balanced flow characteristic and calibrate the speed‑dependent corrections to zero.

Q1: How can I tell if my valve has lost its hydraulic balance ability without removing it?
→ Monitor the "actual rail pressure" and "demand rail pressure" at two different engine speeds – idle and 2500 rpm – with the same accelerator position. If the pressure deviation is significantly larger at 2500 rpm than at idle, the balance gallery may be partially blocked or worn.

Q2: Can the 0928400761 be fitted to a CP3 pump with an adapter?
→ No. The hydraulic balance calibration is specific to CP4.1/CP4.2 pump inlet dynamics. CP3 pumps have different pulsation frequencies and amplitudes – the balance gallery would be incorrectly tuned, potentially making the pressure control worse rather than better.

Q3: Why does my new valve cause a slight fuel smell under the bonnet after installation?
→ This is usually due to an improperly seated O‑ring or an under‑torqued retaining nut. The low‑pressure fuel circuit is under 6‑9 bar, so even a minor leak will produce a noticeable smell. Re‑torque to 24 Nm and inspect the seal – do not overtighten, as this can deform the valve body and alter the balance gallery clearance.

Q4: What is the most common cause of premature failure for this valve in VW 3.0 TDI engines?
→ Fuel contamination, particularly water ingress from poor‑quality fuel stations. The CP4.2 pump is sensitive to water, which accelerates corrosion of the balance orifice. A high‑quality water‑separating fuel filter changed every 20,000 km is the best preventive measure.

Q5: I replaced the valve but still have a rail pressure oscillation during steady highway cruising – is the valve faulty?
→ Possibly, but first check the rail pressure control valve on the return side. The metering valve controls supply flow; the pressure control valve manages the rail pressure. If the return valve is sticking, it will oscillate regardless of the metering valve's performance. Use live data to identify which actuator is hunting.

Q6: Does the valve need to be primed with fuel before installation to prevent dry start?
→ Yes – the balance gallery can trap air if the valve is installed dry, which will delay pressure build‑up on the first start. Before fitting, immerse the valve inlet in clean diesel and manually move the armature (using a small non‑magnetic tool) to expel air from the gallery. This step is often skipped but can reduce cranking time on the first start by up to 2 seconds.
