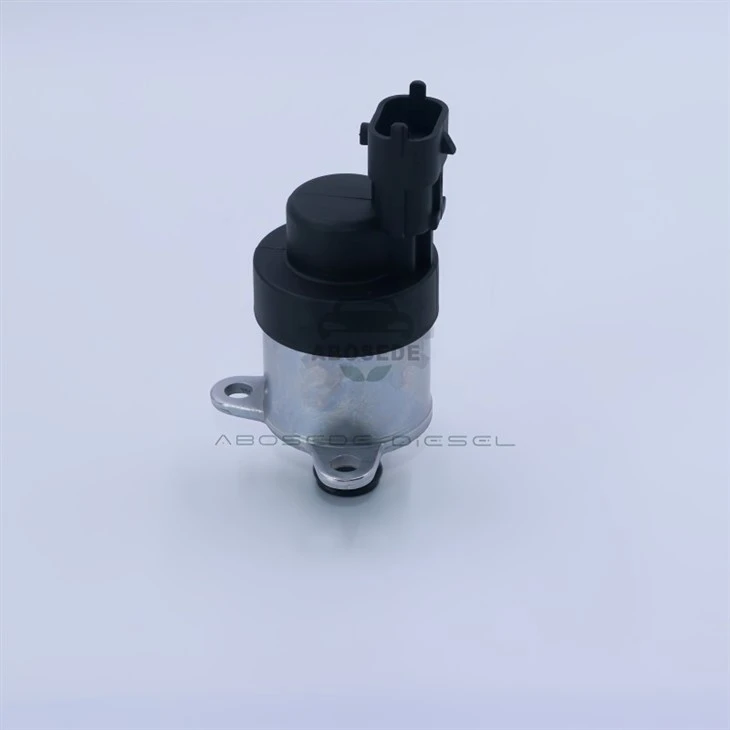

0928400760 Bosch Fuel Metering Valve – High-Mileage Injector Compensation & Adaptive Range Preservation For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

The 0928400760 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. Its design anticipates something that happens to every high-mileage diesel engine: injector back-leakage increases with age. Inside every injector, fuel leaks past the needle and solenoid clearances to lubricate and cool the component. When injectors are new, this leak-off flow is small and predictable. After 500,000 or 800,000 kilometers, internal clearances have worn larger. The same injectors now return significantly more fuel to the tank. This extra leak-off is a demand the high-pressure pump must meet on top of the fuel actually injected into the cylinders. If the metering valve cannot supply this increased volume without exceeding its comfortable operating range, the engine computer will push its fuel trim corrections further and further until it hits a limit. When that limit is reached, a fault code is stored and the engine may derate. The 0928400760 is built with an expanded low-flow authority and stable calibration that allows it to supply aging injectors with the extra fuel they need, while leaving enough correction margin for the engine computer to manage normal variations. It fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

Common rail injectors are precision devices, but they are not immune to wear. The needle lifts and seats billions of times. The solenoid armature cycles with every injection. Clearances measured in microns gradually grow. As they do, the amount of fuel that bypasses the injection event and flows to the return line increases - often by 50% or more over the injector's life. This back-leakage is not a sign of imminent failure; it is normal aging. However, the metering valve must supply this additional flow. At idle, where injection quantities are tiny, the leak-off can account for more than half of the total fuel demand. The engine computer commands a higher duty cycle to open the metering valve wider and compensate. When the valve is new, this compensation is well within its design range. But if the valve has its own wear, or if it was not designed with this long-term drift in mind, the duty cycle creeps toward the maximum allowed. The 0928400760 provides the necessary flow headroom to accommodate aged injectors without operating near its limits.

The 0928400760 does not simply open wider at the top of its range. It is calibrated to maintain precise flow control at duty cycles that remain linear and stable even when higher than the typical 18–25% seen with new injectors. A truck with aging injectors may need 28–32% duty cycle at hot idle just to hold rail pressure. A valve with poor low-flow linearity would already be struggling at this point - small corrections would produce unpredictable flow changes. The 0928400760 extends its linear control region well above 30% duty cycle, meaning the engine computer can still make fine adjustments without the valve jumping erratically between positions. This expanded authority is not about maximum power; it is about keeping idle and light-load operation smooth and predictable even as the fuel system ages around the valve.

The engine computer's fuel trim strategy uses a portion of its available correction range to handle normal day-to-day variations in fuel quality, temperature, and altitude. Another portion is permanently consumed as the engine and fuel system components wear. If the metering valve itself uses up too much of this range - because it requires large corrections to compensate for its own drift - there is less left for the injectors. The 0928400760 is built for calibration stability. Its DLC-coated spool and stress-relieved return spring maintain a consistent flow-to-duty-cycle relationship over high mileage. The valve does not demand large trims for itself, so the engine computer can allocate its adaptive range to managing the injector leak-off and other long-term changes. This preserves the system's ability to run smoothly and avoid fault codes for far longer than would otherwise be possible.

Q1: My truck has 700,000 km and the injectors are still working, but the metering valve duty cycle has crept up to 32% at hot idle. Should I replace the injectors or the metering valve?

Check the injector leak-off volumes. If they are balanced and not exceeding the manufacturer's reject limit, the injectors may still have service life left. A new 0928400760 with expanded flow authority can supply their leak-off demand without running at the edge of its range, potentially delaying an expensive injector replacement.

Q2: Will the 0928400760 fix a high duty cycle caused by injector wear?

It will not reduce the duty cycle - the demand is real and must be met. What it does is meet that demand while staying within its linear control range, so the engine computer does not exhaust its fuel trim limits and trigger a fault code.

Q3: Can I install the 0928400760 if I plan to replace the injectors soon?

Yes. It works equally well with new or aged injectors. If injectors are replaced later, the duty cycle will drop into the normal 18–25% range, and the valve will continue to perform accurately.

Q4: How do I know if the metering valve or the injectors are causing the high duty cycle?

Measure individual injector leak-off. If all injectors are within specification but the total leak-off is high (simply due to age), the valve must supply that flow. If one injector has significantly higher leak-off than the others, that injector should be replaced, but the valve may also be worn. Evaluate both.

Q5: Does the 0928400760 require any special calibration?

No. The standard ECM fuel trim reset is all that is needed. The valve will operate immediately and adapt to the engine's specific fuel demand.

Q6: Will this valve improve fuel economy on an older engine?

It can, by eliminating the over-correction cycles that occur when a worn valve cannot hold stable rail pressure at the elevated duty cycle required by the injectors. The economy benefit comes from smoother fuel delivery, not from reducing the duty cycle.
