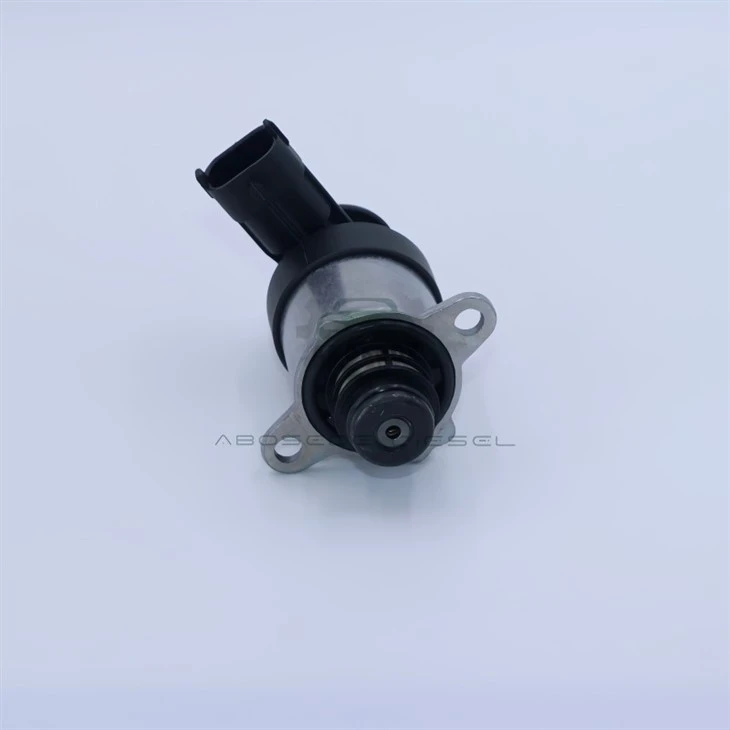

0928400680 Bosch Fuel Metering Valve – Extended Idle Heat Resistance & Low-Flow Stability For CP3/CP1H Pumps On Heavy-Duty Diesel Engines

The 0928400680 is a Bosch inlet metering valve for CP3 and CP1H high-pressure common rail pumps. Certain commercial vehicles spend a significant portion of their engine hours not on the highway, but stationary with the engine running. Refrigerated trailers maintain cargo temperature while the truck is parked. Concrete pump trucks operate their booms at idle. Utility trucks power aerial lifts. During these long idle periods, the metering valve faces a unique thermal challenge. There is no forward motion to push cooling air through the engine bay. The fuel flowing through the valve is minimal - just enough for idle. The pump housing temperature climbs steadily as heat from the engine block soaks into the pump and the stagnant air around it. The fuel trapped inside the valve gets hotter and thinner. In a valve not designed for this condition, the combination of heat and low flow can cause the spool to lose its precise low-flow control, leading to idle instability, rpm drift, and eventual fault codes. The 0928400680 is built to maintain stable metering even when the engine idles for hours in high ambient temperatures. Its internal clearances and materials are selected to keep the spool moving freely and predictably despite prolonged heat exposure. This valve fits heavy-duty diesel engines using Bosch CP3 or CP1H high-pressure pumps.

When a truck cruises at highway speed, the engine produces significant heat, but airflow through the radiator and over the engine carries much of it away. Under-hood temperatures stabilize at a manageable level. At idle, the engine still produces heat - combustion continues, the cooling fan may not be engaged, and natural airflow is absent. The temperature around the CP3 pump can rise 20–30°C above what it sees at highway speed. The metering valve, bolted directly to the pump, absorbs this heat. Because idle fuel flow is minimal, only a trickle of relatively cool fuel from the tank passes through the valve. This small volume cannot carry away much heat. The fuel inside the valve's internal galleries warms up, losing viscosity. Low-viscosity fuel is less effective at maintaining the hydraulic film that keeps the spool centered in its bore. It also offers less damping of the spool's motion. Under these conditions, a valve that performed well during normal driving can begin to show small instabilities - a slight idle surge, a slowly rising duty cycle, or occasional rail pressure dips.

The 0928400680 addresses thermal stability through careful material pairing. The valve body is made from high-silicon aluminum alloy. The metering spool is manufactured from a martensitic stainless steel. These two materials have controlled and compatible coefficients of thermal expansion. As the valve heats up, the aluminum body expands slightly more than the steel spool. This actually increases the spool-to-bore clearance by a micron or two - just enough to prevent the spool from binding in its bore when everything is hot. At normal operating temperatures, the clearance returns to its design value. This passive thermal management requires no electronic intervention. It prevents the spool from seizing or dragging during prolonged hot idle, which is a common failure mode in valves that are not thermally compensated. The DLC coating on the spool further reduces friction, ensuring that even when the fuel film is thin from high temperature, the spool can move with minimal resistance.

The engine computer commands a very small fuel quantity at idle. The metering valve's spool is barely open. In this position, even a tiny positioning error can change the fuel flow by several percent. As the fuel thins with heat, its viscosity changes, altering the flow characteristics through the metering slots. A valve with poor thermal stability might drift rich or lean as the idle period extends. The engine computer detects the resulting rail pressure deviation and adjusts the duty cycle. Over hours, this can cause the hot idle duty cycle to creep upward significantly, consuming the computer's adaptive range. The 0928400680 maintains consistent flow-to-duty-cycle relationship across the full range of fuel temperatures. Its metering slot geometry is designed to be less sensitive to viscosity changes, ensuring that the same spool position delivers the intended fuel mass regardless of whether the fuel is warm or hot. This keeps the hot idle duty cycle stable, even after hours of stationary operation in summer heat.

Vehicles that regularly idle for long periods should have their metering valve health monitored through simple trending. At each preventive maintenance service, record the hot idle duty cycle and the rail pressure deviation after the engine has been idling for at least 20 minutes. A healthy 0928400680 should show a duty cycle between 18–25% and a rail pressure that holds within ±1.5 MPa of target. If the duty cycle drifts above 30% or the pressure trace shows a slow, rhythmic oscillation (indicating the computer is chasing a moving target), the valve may be losing its thermal stability. Also compare the duty cycle immediately after start-up with the value after an hour of idling. A difference of more than 4–5 percentage points suggests the valve's calibration is shifting with temperature. Replacing the valve before the drift becomes severe prevents unscheduled fault codes and protects the engine from the effects of unstable idle fueling.

Q1: My refrigerated truck idles for 8–10 hours a day. The engine runs fine when driving, but after a few hours of idling, the idle becomes slightly rough. No fault codes. Could the metering valve be the cause?

Yes. Extended idling heats the pump and fuel, which can cause a valve not designed for these conditions to lose low-flow accuracy. The 0928400680 is built with thermally stable materials and clearances to maintain smooth idle even after hours of stationary operation.

Q2: Will the 0928400680 stop my hot idle duty cycle from creeping up over time?

A gradual upward trend over many services may still occur due to normal wear, but a significant, rapid increase specifically correlated with extended idle periods should be eliminated. The valve's thermal design prevents heat-induced drift during long idling sessions.

Q3: How can I test if a metering valve is suffering from heat-related instability?

Record the hot idle duty cycle and rail pressure after 10 minutes of idling, then again after 60 minutes. If the duty cycle has shifted more than 4–5 percentage points, or the rail pressure trace has become unstable, the valve is likely struggling with thermal effects.

Q4: Does the 0928400680 help protect the high-pressure pump during extended idling?

Yes. By maintaining stable and accurate fuel metering, the valve prevents the rail pressure fluctuations that can cause the pump to work harder than necessary. This reduces unnecessary heat generation in the pump itself.

Q5: Is there any special maintenance needed for vehicles that idle for long periods?

Follow the standard fuel filter replacement schedule rigorously. Extended idling can increase the amount of heat-cycled fuel returning to the tank, potentially accelerating filter loading. Clean fuel is essential for keeping the metering valve's precision surfaces in good condition.

Q6: Can I retrofit the 0928400680 to a truck that did not originally have it?

If the truck uses a Bosch CP3 or CP1H pump and the part number is compatible with the engine serial number, yes. The mechanical and electrical interfaces are standard. After installation and ECM reset, the valve will operate immediately.
