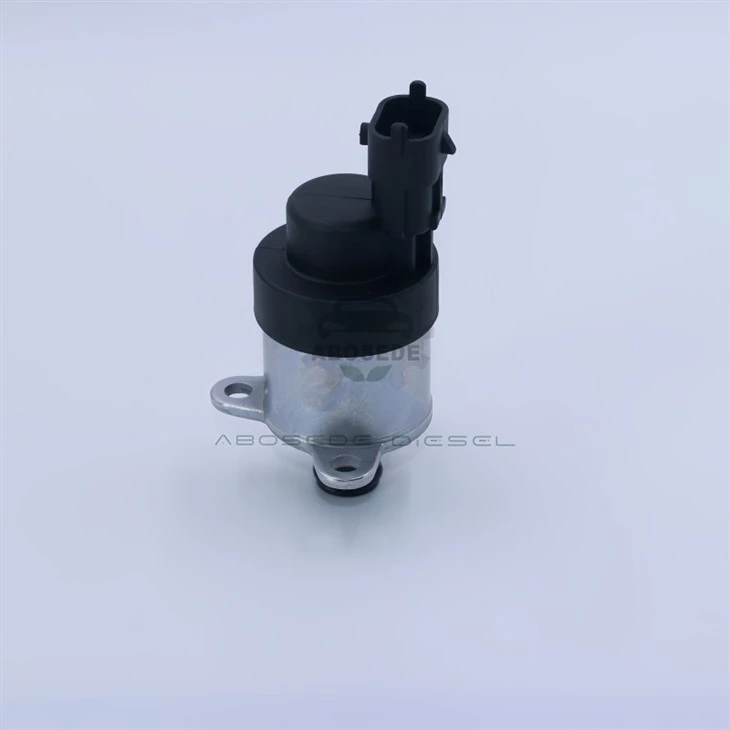

Bosch 0928400791 – The Metering Valve That Suppresses Inlet Pressure Surge For Stable Metering

When the high-pressure pump's plungers transition from suction to compression, they create a momentary flow reversal at the metering valve outlet. This reversal generates a pressure surge that travels back through the valve, pushing against the armature and momentarily altering its position. The ECU, which commands the valve based on a steady-state model, cannot foresee this surge, and the result is a small but measurable metering error that repeats with every plunger stroke. The 0928400791 is engineered with an outlet-side surge suppression chamber that absorbs the pressure wave before it reaches the armature, ensuring that the valve's position is determined solely by the magnetic force, not by the pump's pressure pulsations. It is a valve that meters fuel, not pressure waves.

In a CP4.2 pump, each plunger compresses fuel and delivers it to the rail through a delivery valve. When the plunger reaches the end of its stroke, the delivery valve closes, and the pressure at the valve outlet drops rapidly. This drop creates a negative pressure wave that travels back through the high-pressure line toward the metering valve outlet-and through the metering valve itself. If the valve has no suppression, this wave can pull the armature slightly off its seat, reducing the flow for the next suction stroke. The 0928400791 includes a small chamber at the valve outlet, connected to the main flow path through a restriction. This chamber acts as a hydraulic capacitor, absorbing the pressure wave and releasing it gradually so that the armature is not disturbed. The result is a valve that maintains its metering accuracy regardless of the pump's stroke timing.

The surge suppression chamber is a cavity with a volume of approximately 0.12 cm³, connected to the valve outlet through a restriction with a diameter of 0.3 mm. When the delivery valve closes and the pressure wave travels back toward the valve, it first encounters the chamber. The chamber's volume, combined with the fuel's compressibility, absorbs the pressure wave, converting it into a small volume change of the fuel in the chamber. The restriction limits the rate at which this volume change affects the main flow path, so the pressure at the armature face changes gradually, not abruptly. The chamber and restriction are calibrated so that the pressure wave is reduced by approximately 80 % before it reaches the armature, and the remaining disturbance is damped to a level that does not affect the armature position.

The surge suppression chamber and restriction are vulnerable to the same failure modes as other calibrated passages: blockage by varnish deposits and contamination by particles. If the restriction becomes blocked, the chamber no longer receives pressure waves, and the surge passes through to the armature directly. If the chamber becomes filled with debris, its effective volume is reduced, and the attenuation is diminished. The first symptom of lost surge suppression is a high-frequency pressure ripple that appears on the rail pressure sensor reading-a ripple that is synchronized with the pump's stroke frequency. The genuine 0928400791 uses a restriction that is large enough to resist blockage and a chamber that is positioned so that fuel flow clears any deposits. The valve's inlet screen also protects the restriction from particles larger than 50 µm.

Installing the 0791 is similar to other CP4 valves-clean the mounting surface, replace the O-ring and backup ring, torque the retaining nut to 23 Nm ± 2 Nm. However, there is a specific step that is important for the surge suppression: do not install the valve if the pump outlet line contains debris. The surge suppression chamber is located at the valve outlet, and any debris in the outlet line can be pushed into the chamber during installation. Before fitting the new valve, disconnect the high-pressure line at the pump end and blow clean compressed air through the line to remove any particles. This step ensures that the suppression chamber does not become contaminated immediately after installation, preserving the surge attenuation for the full service life of the valve.

Q1: How can I tell if my valve's surge suppression has degraded without removing it?
→ Use a diagnostic tool to monitor the rail pressure sensor at steady 2,500 rpm. If the pressure trace shows a ripple that is synchronized with the engine's firing frequency (approximately 100-150 Hz for a 6-cylinder engine at 2,500 rpm), the surge suppression may be degraded. A healthy 0791 will show less than 10 bar ripple under the same conditions.

Q2: Can I install the 0928400791 on a VW Touareg that originally used the 0727 or 0682?
→ Yes, in most CP4.2 applications. The 0791 is the latest generation, with improved surge suppression, and it is a direct replacement for the 0727 and 0682 in many applications. However, always verify compatibility with your engine's calibration, as some ECUs may require a specific valve characteristic.

Q3: Why does my engine show a pressure ripple only at high rpm, not at idle?
→ The pressure waves generated by the pump have more energy at high rpm because the plungers are moving faster. The surge suppression chamber is most effective at these frequencies, but if the chamber is partially blocked or if the restriction is worn, the attenuation is reduced at high rpm. The 0791's chamber is calibrated to provide consistent attenuation across the full speed range.

Q4: What is the most common cause of the restriction becoming blocked in this valve?
→ Varnish deposits from low-quality diesel and debris from a degraded fuel filter. The 0791's restriction is designed to resist blockage, but if the vehicle has a history of irregular fuel filter changes, the restriction can become partially blocked. Regular fuel filter changes (every 20,000 km) are the most effective prevention.

Q5: I replaced the valve with a genuine 0791, but I still see a pressure ripple – is the valve defective?
→ Before suspecting the valve, check the delivery valves on the pump-a worn delivery valve can generate pressure waves that are larger than the suppression chamber can handle. Also, check for air in the fuel system-air bubbles can amplify the pressure waves and make the ripple more visible. If these are clear, the valve may need to be verified on a test rig.

Q6: Does the surge suppression chamber affect the valve's flow capacity?
→ The chamber and restriction create a small pressure drop that reduces the maximum flow by approximately 1-2 %. This is accounted for in the ECU's calibration and is the trade-off for the surge attenuation. The flow reduction is consistent and does not affect the valve's linearity or response time.
