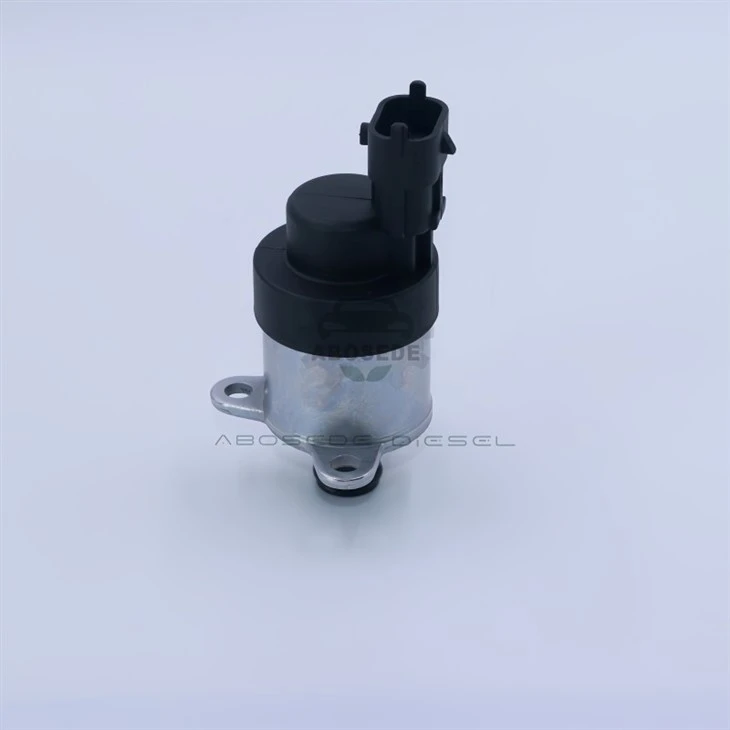

Bosch 0928400574 – The High-Speed Metering Valve That Shapes Every Common Rail Injection Event

Every precise injection event in a modern diesel common rail system begins not at the injector nozzle, but at the inlet of the high‑pressure pump-where the Bosch 0928400574 (0 928 400 574) metering valve acts as the gatekeeper of fuel admission. This solenoid‑controlled proportional valve is the ECU's direct instrument for translating driver demand and emission targets into an exact fuel volume delivered to the pumping plungers. In the relentless pursuit of lower NOₓ, particulate matter, and fuel consumption, the 0928400574 stands as a critical enabler-its dynamic response and linearity directly dictate rail pressure stability, injection timing flexibility, and combustion efficiency across all operating regimes.

⚡ Electromechanical Core – The valve integrates a high‑force solenoid with a spring‑return plunger, operating on a pulse‑width modulated (PWM) signal typically ranging from 120 Hz to 200 Hz. Electrical parameters are standardized for 12 V vehicle electrical systems: coil resistance of approximately 2.3 ± 0.3 Ω at 20 °C, with a maximum control current of 1.8 A. This design ensures a rapid magnetic build‑up and release, achieving a mechanical response time under 2 ms-fast enough to support multiple pilot, main, and post‑injection events within a single combustion cycle.

📊 Flow Characteristic – Unlike on/off solenoid valves, the 0928400574 delivers a near‑linear flow‑versus‑duty‑cycle relationship across its usable stroke. At full de‑energisation (0 % duty), the valve is fully open, allowing maximum fuel throughput (typically 60 L/h at pump inlet pressure). As the ECU increases the duty ratio, the plunger progressively restricts the flow path, reducing inlet volume to as low as 5 L/h at idle. This broad modulation range gives the engine controller fine‑grained authority over rail pressure from 200 bar to over 2,000 bar, adapting seamlessly to sudden throttle changes or steady‑state cruising.

The 0928400574 does not work in isolation-it is the actuator in a closed‑loop pressure control circuit comprising the rail pressure sensor, crankshaft/camshaft position sensors, and the ECU's internal PID regulator. When the driver tips‑in, the ECU predicts the required fuel mass and instantly adjusts the PWM duty cycle, pre‑positioning the metering valve before the pump pistons begin their compression stroke. This "feed‑forward + feedback" strategy minimizes pressure undershoots and overshoots, ensuring that each injector receives a consistent hydraulic pressure for every injection pulse. The valve's hysteresis (typically < 3 % of full scale) is intentionally low, allowing the PID loop to maintain rail pressure within ± 5 bar under steady conditions-a crucial factor for meeting Euro 6d and RDE (Real Driving Emissions) limits.

🔧 Pump Compatibility – This metering valve is predominantly specified for Bosch CP4 and CP1‑based high‑pressure pumps used in a wide cross‑section of European and Asian diesel engines. Application data confirms fitment for:

BMW 3.0 L M57 / N57 engines (E60, E70, E90, F10)

Volkswagen Audi Group 2.7 L / 3.0 L V6 TDI (including Touareg, Q7, A8)

Mercedes‑Benz OM642 V6 CDI (E‑Class, ML, GL, Sprinter)

Peugeot / Citroën 2.2 L HDi / DW12

Land Rover / Jaguar 3.0 L SDV6

When installed, the 0928400574 mates to the pump inlet port with a specific O‑ring seal and torque specification (typically 8 N·m). Correct alignment of the electrical connector-angled at 90° to the valve axis-is essential to avoid cable strain and ensure reliable signal transmission.

From a maintenance perspective, the 0928400574 exhibits characteristic failure patterns that informed technicians can identify without expensive lab equipment. Common symptoms include:

Erratic idle hunting – caused by plunger sticking due to varnish or abrasive particles, disrupting the duty‑cycle‑to‑flow transfer function.

Delayed throttle response – when the solenoid's magnetic force weakens (coil partial short or increased resistance), the valve cannot track rapid duty‑cycle changes.

Rail pressure oscillations – often accompanied by DTCs such as P0087 (rail pressure too low) or P0251 (fuel metering valve malfunction), indicating internal leakage past the plunger seat.

A practical shop test involves disconnecting the valve's electrical connector while cranking: if the engine starts and runs (though with limited power), the metering valve is almost certainly defective, since the fail‑safe mode (full‑open) bypasses its control. However, always verify pump inlet pressure and fuel filter condition before condemning the valve-contaminated fuel is the leading cause of premature wear.

Aftermarket valves often mimic the external dimensions but compromise on the critical magnetic circuit lamination, spring rate, and plunger‑to‑bore clearance. Genuine Bosch 0928400574 units are calibrated on precision flow benches, ensuring that the duty‑cycle vs. flow curve matches the ECU's internal map within ± 1.5 %. Any deviation here forces the PID controller to apply excessive correction, potentially leading to pressure fluctuations or even a permanent offset that reduces overall system efficiency. For workshops and fleet operators, using OEM‑certified components eliminates the guesswork and preserves the original emissions and performance certifications.

Q1: How can I tell if my engine's poor performance is due to the 0928400574 valve or the high‑pressure pump itself?
Perform the electrical disconnection test: unplug the metering valve and attempt to start. If the engine starts and runs (even roughly), the valve is faulty. If it still fails to start or runs the same, inspect the pump's mechanical output pressure and the fuel supply system.

Q2: Does replacing the 0928400574 require any recalibration or coding with diagnostic tools?
In most vehicles, no coding is needed because the valve's characteristics are stored in the ECU as generic maps. However, after installation, it is recommended to clear any stored fuel‑system fault codes and perform a rail pressure adaptation reset via compatible diagnostic software (e.g., Bosch ESI, Delphi, or OEM tools) to accelerate the learning phase.

Q3: Can I run the engine temporarily with the metering valve unplugged?
Yes-the valve defaults to fully open, allowing fuel to flow unrestricted. The engine will start but will be limited to a low‑power limp‑home mode with a fixed rail pressure (often ~300 bar) and should only be used for short distance diagnostics, not for normal driving, as it increases emissions and fuel consumption.

Q4: What is the typical service interval for this metering valve, and what shortens its life?
Bosch designs the valve to last the lifetime of the pump under standard conditions (approx. 200,000–300,000 km). Aggressive factors include water contamination, poor lubricity fuels, clogged fuel filters (which allow abrasive particles through), and frequent low‑fuel operation (which introduces air and cavitation).

Q5: Is the 0928400574 interchangeable with other Bosch numbers like 0928400750 or 0928400703?
No-they have different flow calibration, electrical resistance, and mechanical stop dimensions. Although they look similar, using an incorrect valve will cause rail pressure offset errors and poor drivability. Always match the exact part number stamped on the old valve.

Q6: What should I check before installing a new 0928400574 to avoid repeat failure?
Replace the fuel filter, flush the inlet fuel lines, inspect the fuel lift pump for adequate supply pressure, and clean any debris from the pump inlet port. Also, verify the electrical connector pins are not corroded and that the wiring harness resistance is below 0.5 Ω to ensure proper solenoid energisation.
